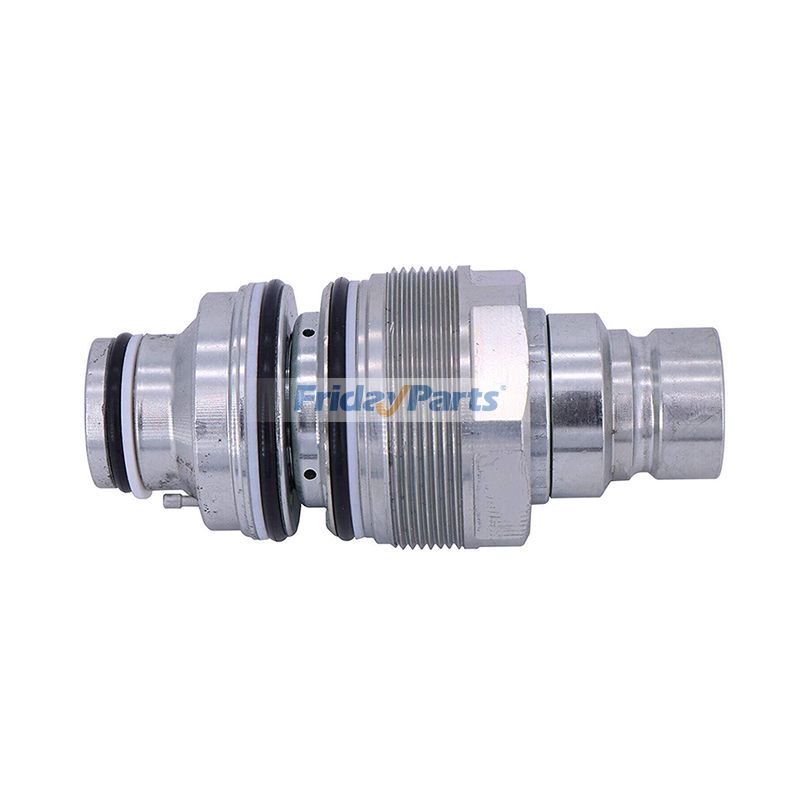

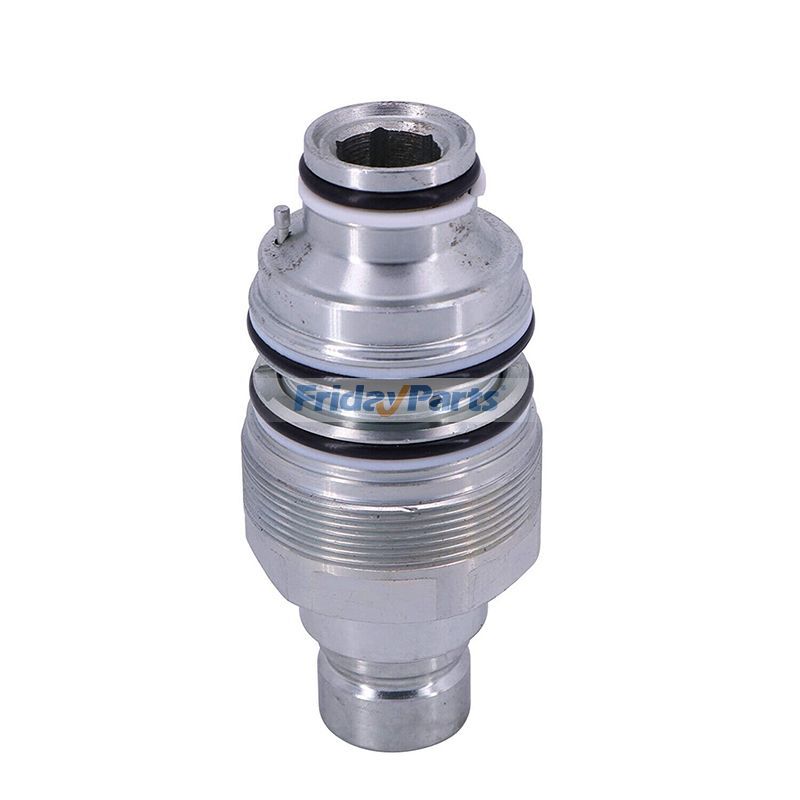

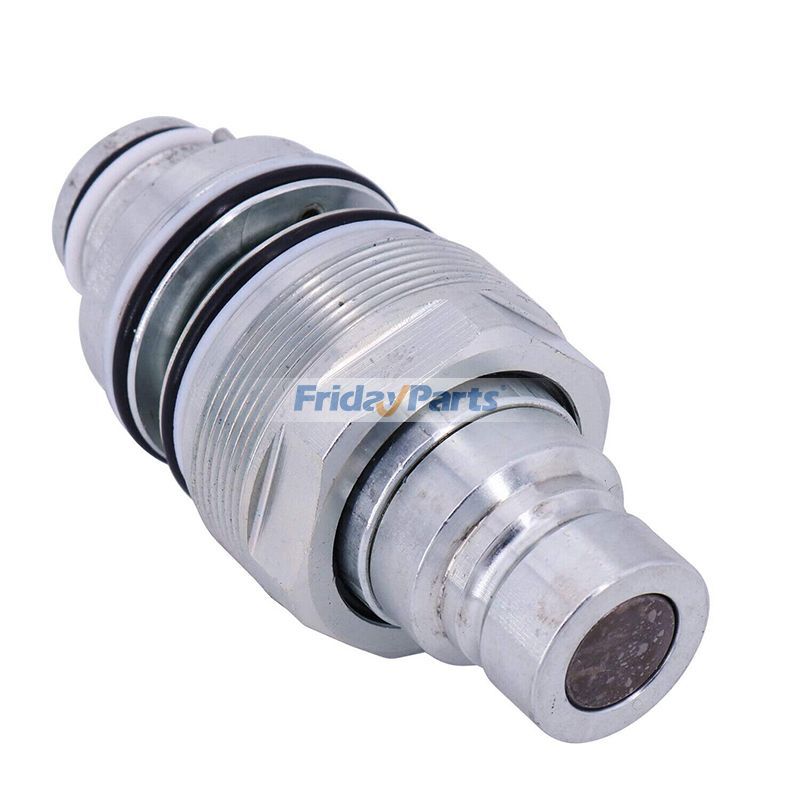

1/2" Male FFI Coupler FlatFace for 4BD4FI Block Cartridge

1/2" Male FFI Coupler FlatFace for 4BD4FI Block Cartridge

Features:
Heavy Duty design. Rated at over 5075 PSI
46mm thread diameter.
Has built-in connect under pressure functionality
Operating temperatures (With Nitrile seals): -40°C (-40°F) to 106°C (223°F)
Maximum working pressure 350 bar
Low profile coupler design minimizes side loading
Interchange with other brands conforming to ISO 16028
Heavy Duty Locking Collar to resist the possibility of accidental disconnect
Flat Face quick release couplings to screw into manifold
Designed for the quick changeover of hydraulic attachments for skid steer loaders, compact loaders, backhoe loaders and compact utility vehicles.

Specifications:
Coupler Body Size: 1/2"
Dash 12
Thread Outer Diameter:46 mm
Coupler Plating Type:Zinc plated Steel
Flow Rate: 145 l/min
Spillage: 0.02 ml
Force to Connect : 230 N
Burst Pressure : 125 MPa
Pressure Rating 350 bar
Thread Type: SAE

Application:
Fit for following models:
Bobcat Skid-Steer Loader:
753, 763, 773, 863, 864, 883, A220, A300 A770, S130, S150, S160, S175, S185, S205, S220 S250, S300, S330, S450, S510, S530, S550, S570 S590, S630, S650, S750, S770, S850, T140, T180 T190, T200, T250, T300, T320, T450, T550, T590 T630, T650, T750, T770, T870
Bobcat Telescopic handler:TL360, TL470, TL470HF
Bobcat Toolcat Utility Work Machine:5600, 5610
