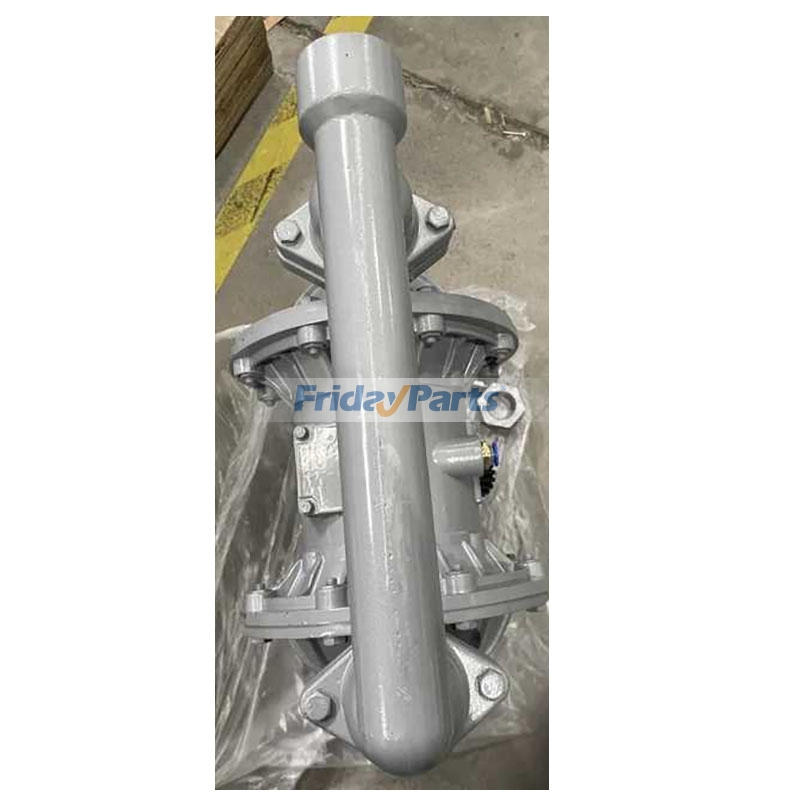

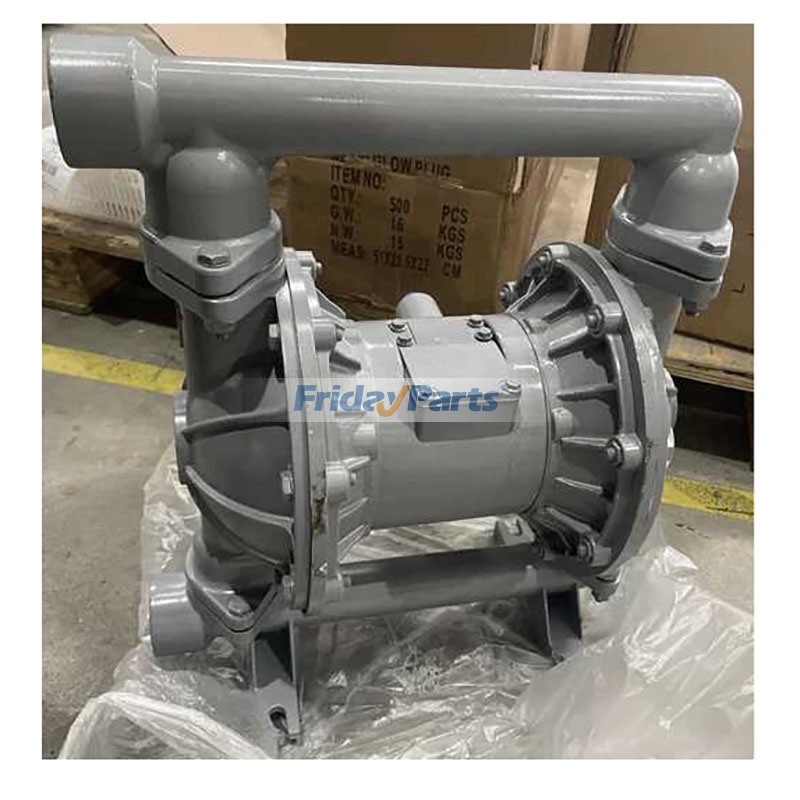

1" Inlet Outlet Petroleum Fluids 35GPM Air-Operated Double Diaphragm Pump QBY4-25L

1" Inlet Outlet Petroleum Fluids 35GPM Air-Operated Double Diaphragm Pump QBY4-25L

Pump Model: QBY4-25L, QBY425L

Specification:
Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & Nitrile Diaphragm & 22 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.

Diaphragm Material: Nitrile
Body Material: Aluminum Alloy
Inlet/Outlet Port: 1 inch (25 mm)
Air Inlet Size: NPT 1/2 inch (12.7 mm)
Max Flow Rate: 22 GPM
Max Head: 239.5 ft/73 m±15%
Valve Type: Ball
Suction: 0-5 m (0-16.4 ft)
Max Suspended Solids: 3 mm (1/8 inch)
Average Air Consumption: 38 CFM
Self-Priming Dry: 3 m (10 ft)
Self-Priming Wet: 4.6 m (15 ft)

Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
