16mm 3/8 Bsp Hydraulic Orbital Motor 151G0001 OMM12.5-151G0001 replace Danfoss

16mm 3/8 Bsp Hydraulic Orbital Motor 151G0001 OMM12.5-151G0001 for Danfoss

Replace Part Number:
OMM12.5-151G0001, OMM12.5151G0001, 151G0001, OMM125151G0001, BMM-12.5-M-A-IE, BMM12.5MAIE, BMM125MAIE

Specification:

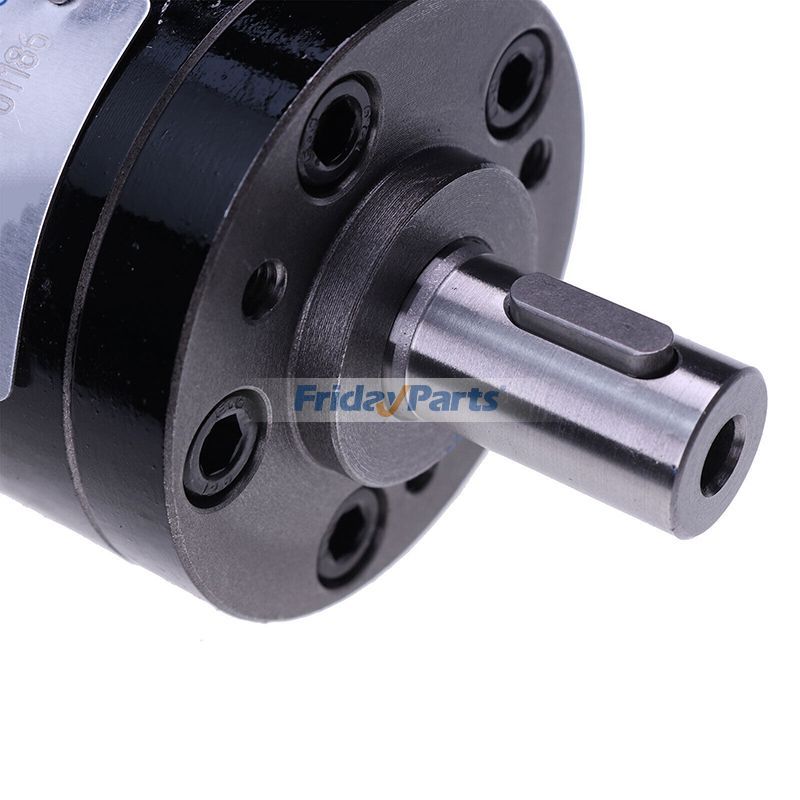

Cylindrical output shaft 16mm with 3/8 BSP end ports
OMM 12.5 Low Speed High Torque motor, Geometric Displacement 12.9 cm ³
Motor Size: 12.5
Geometric displacement: 12.5cm³/[0.77in]
Max speed cont: 1550 rpm
Max speed int: 1940 rpm
Max torque cont: 16Nm/[140lbf in]
Max torque int: 23Nm/[200lbf in]
Max output power cont: 2.4kW/[3.2hp]
Max output power int: 3.2kW/[4.3hp]
Max pressure drop cont: 100bar/[1450psi]
Max pressure drop int: 140bar/[2030psi]
Max pressure drop peak: 200bar[2900psi]
Max oil flow cont: 20L/min
Max oil flow int: 25L/min
Max starting pressure with unloaded shaft: 4bar/[60psi]
Min starting torque at max press drop cont: 12Nm/[105lbf in]
Min starting torque at max press drop int: 17Nm/[150lbf in]
Max inlet pressure cont: 140bar/[2030psi]
Max inlet pressure int: 175bar/[2540psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 225bar/[3260psi]

Application:
Fit for Danfoss
