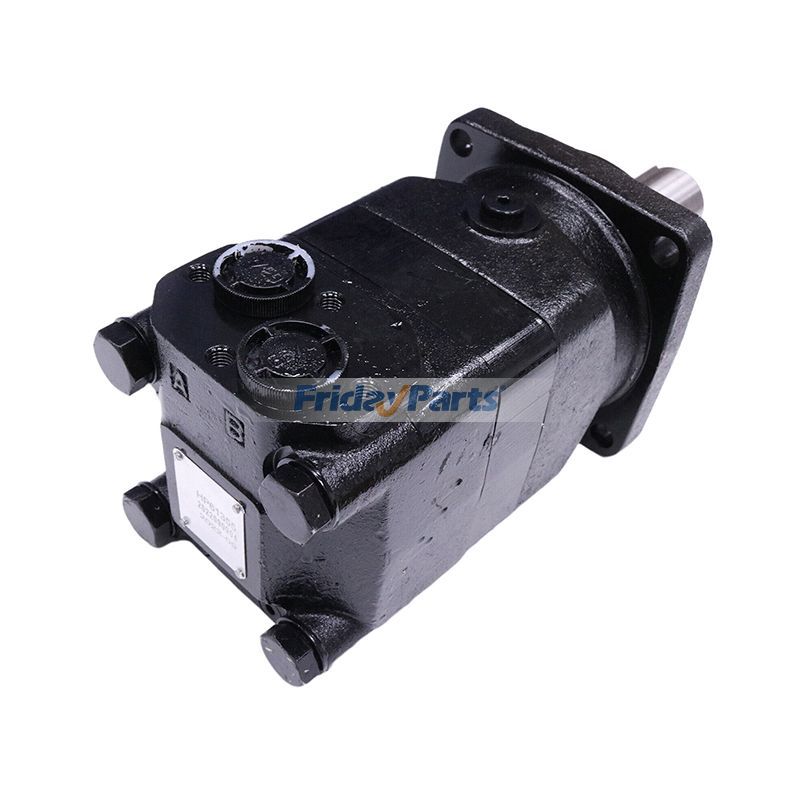

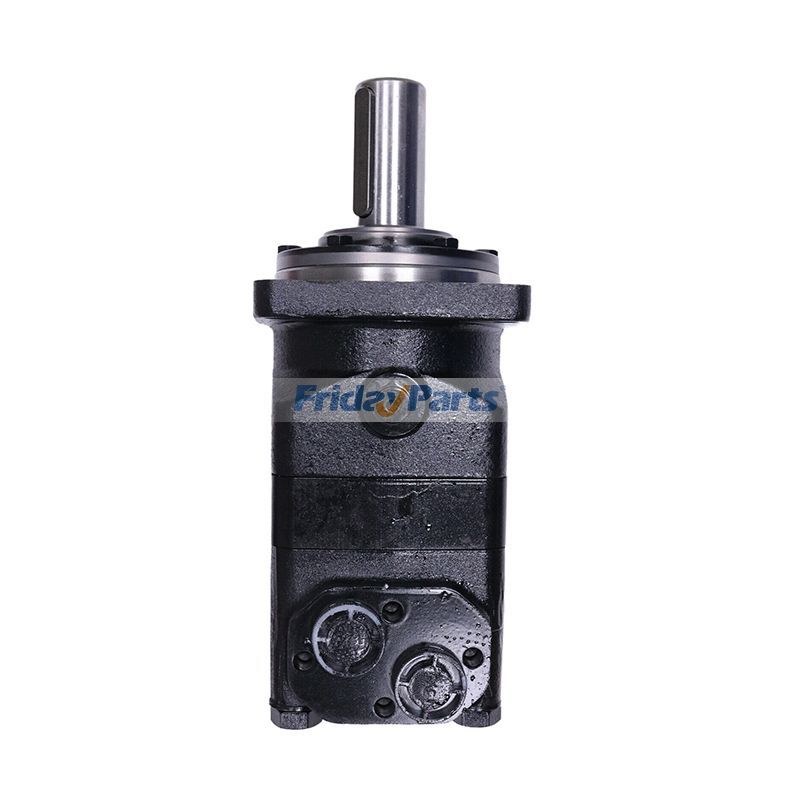

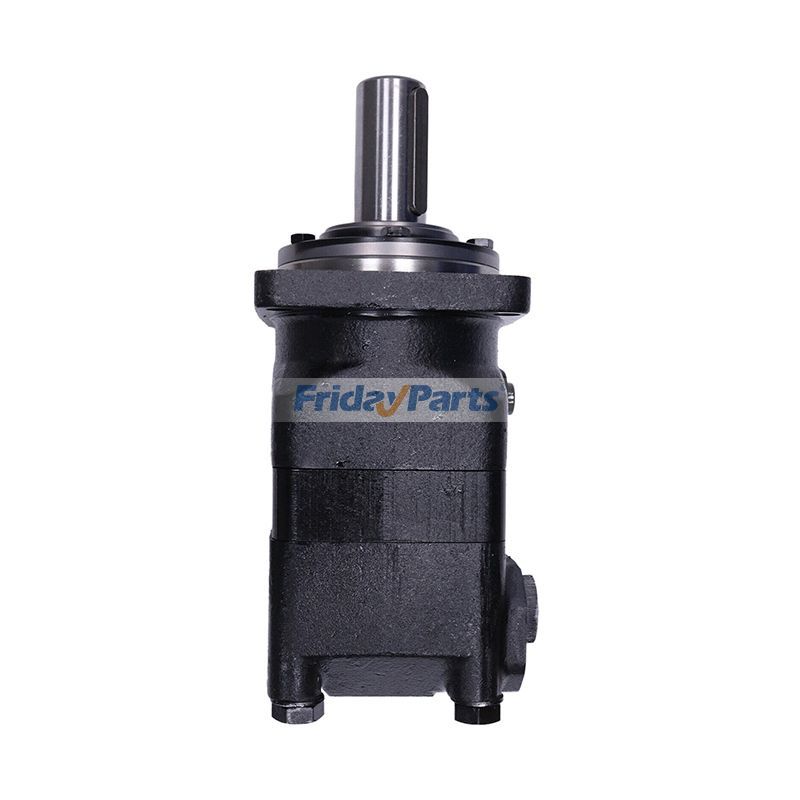

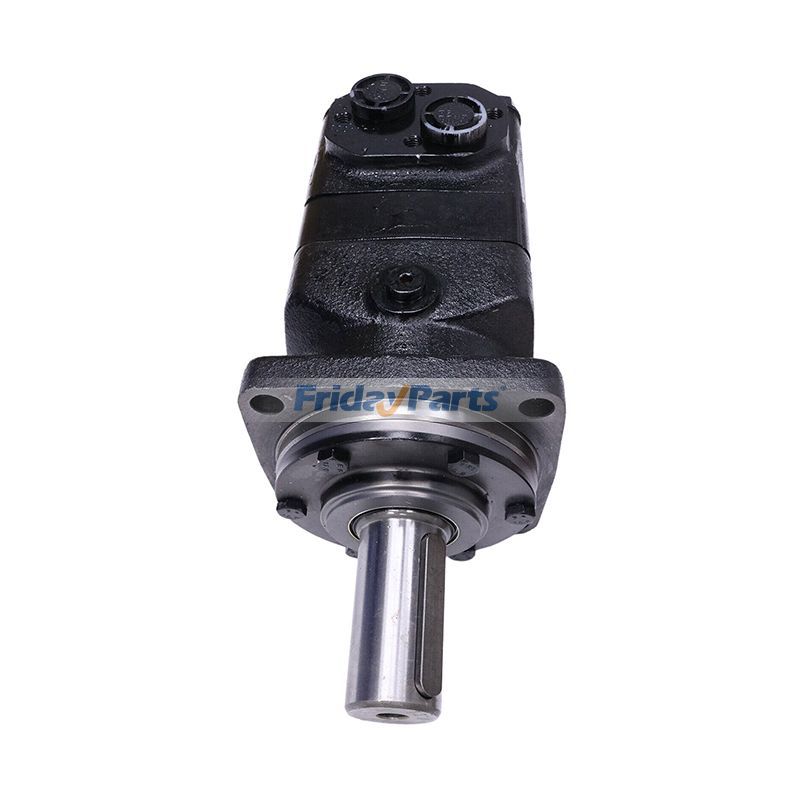

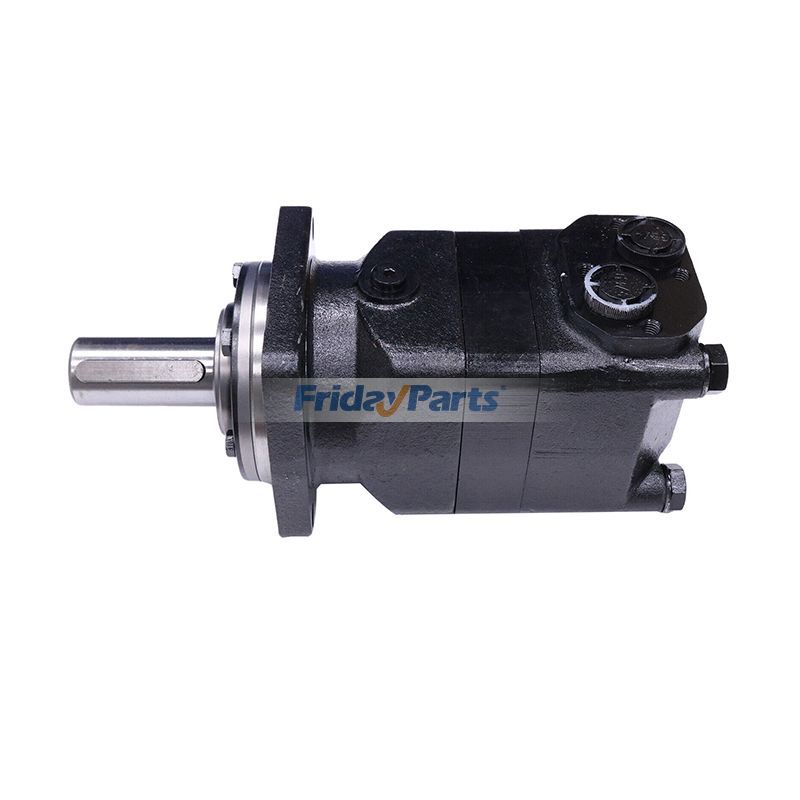

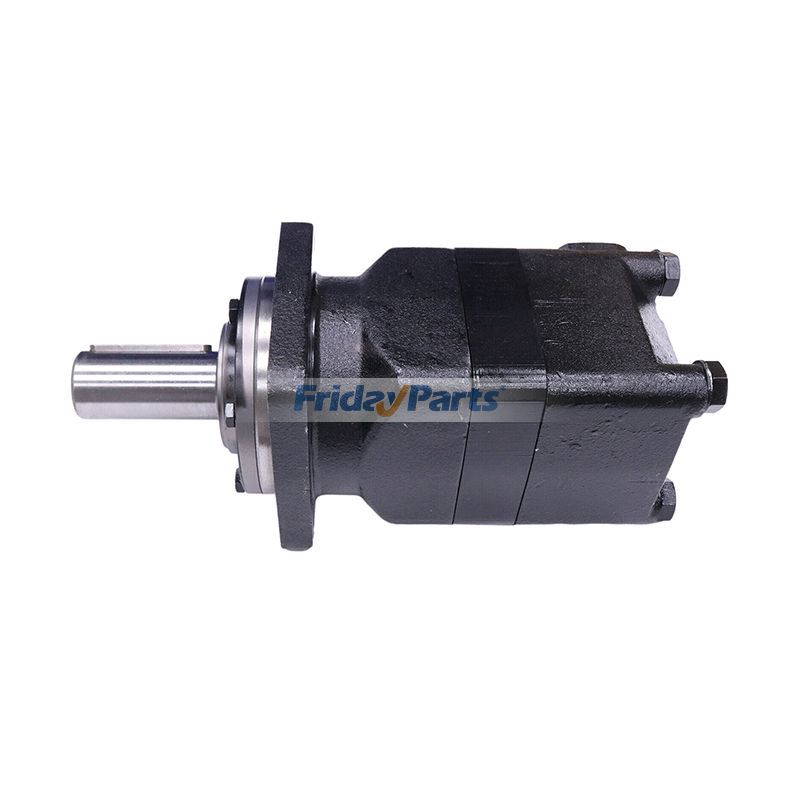

40mm 3/4 BSP Hydraulic Orbital Motor 151B3005 OMT500-151B3005 replace Danfoss

40mm 3/4 BSP Hydraulic Orbital Motor 151B3005 OMT500-151B3005 for Danfoss

Replace Part Number:151B3005, 151B-3005, OMT500-151B3005, OMT500151B3005

Specification:

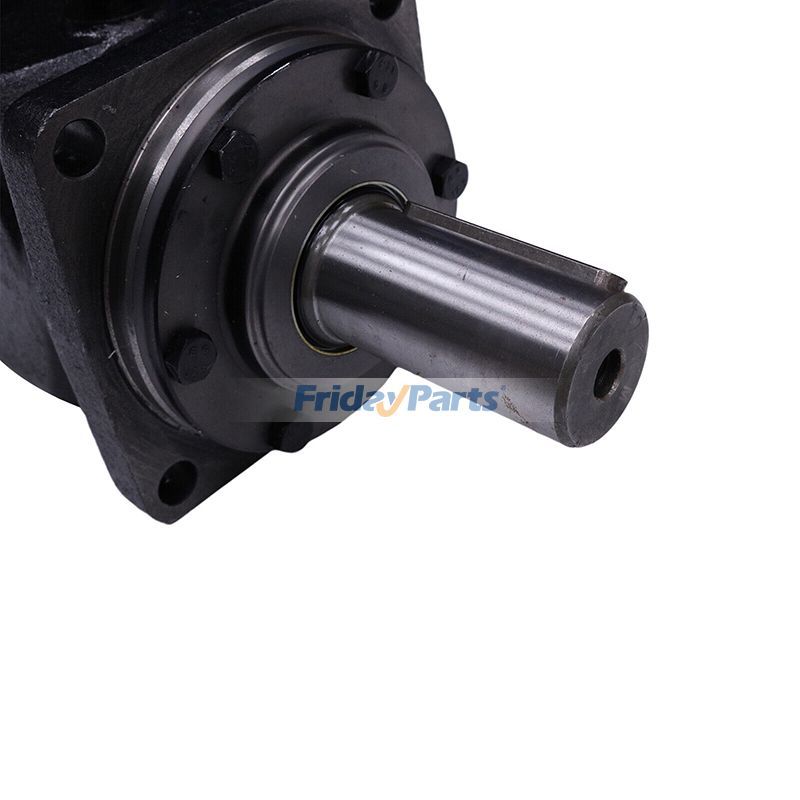

Cylindrical output shaft 40mm with 3/4 BSP port
OMT 500 Low Speed High Torque motor, Geometric Displacement 523.6 cm3
Motor size: 500
Geometric displacement( cm^3[in]):523,6[31.95]
Max speed cont: 240 rpm
Max speed int: 285 rpm
Max torque cont(Nm[lbf in]): 1220[10800]
Max torque int(Nm[lbf in]): 1370[12130]
Max output power cont(kW[hp]): 26,5[35.5]
Max output power int(kW[hp]): 30,0[40.2]
Max pressure drop cont(bar[psi]): 160[2320]
Max pressure drop int(bar[psi]): 180[2610]
Max pressure drop peak(bar[psi]): 210[3050]
Max oil flow cont(l/min[gpm]): 125[33.0]
Max oil flow int(l/min[gpm]): 150[39.6]
Max starting pressure with unloaded shaft(bar[psi]): 10[145]
Min starting torque at max press drop cont(Nm[lbf in]): 950[8410]
Min starting torque at max press drop int(Nm[lbf in]): 1060[9380]
Max inlet pressure cont(bar[psi]): 210[3050]
Max inlet pressure int(bar[psi]): 250[3630]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]

Application:
Fit for Danfoss
