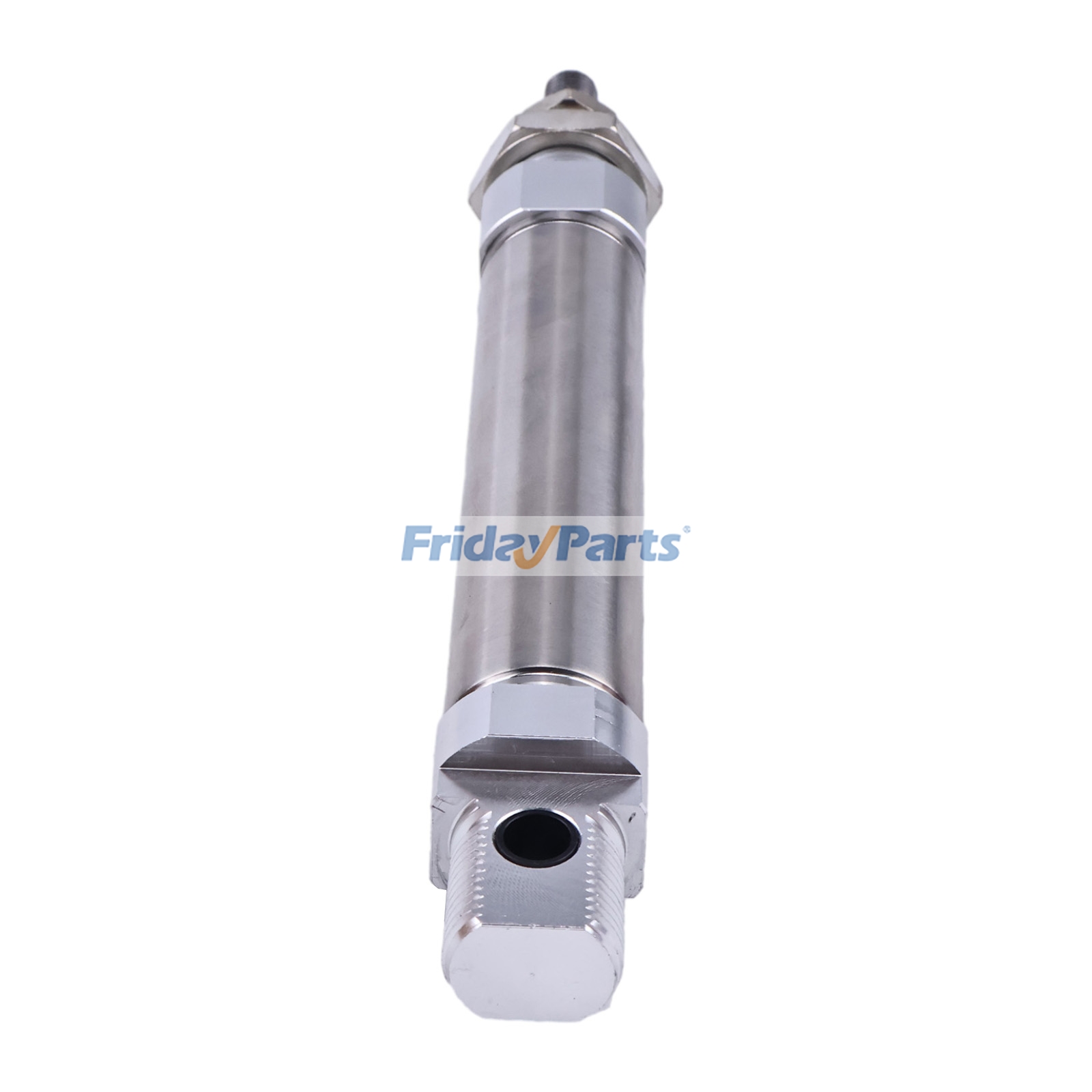

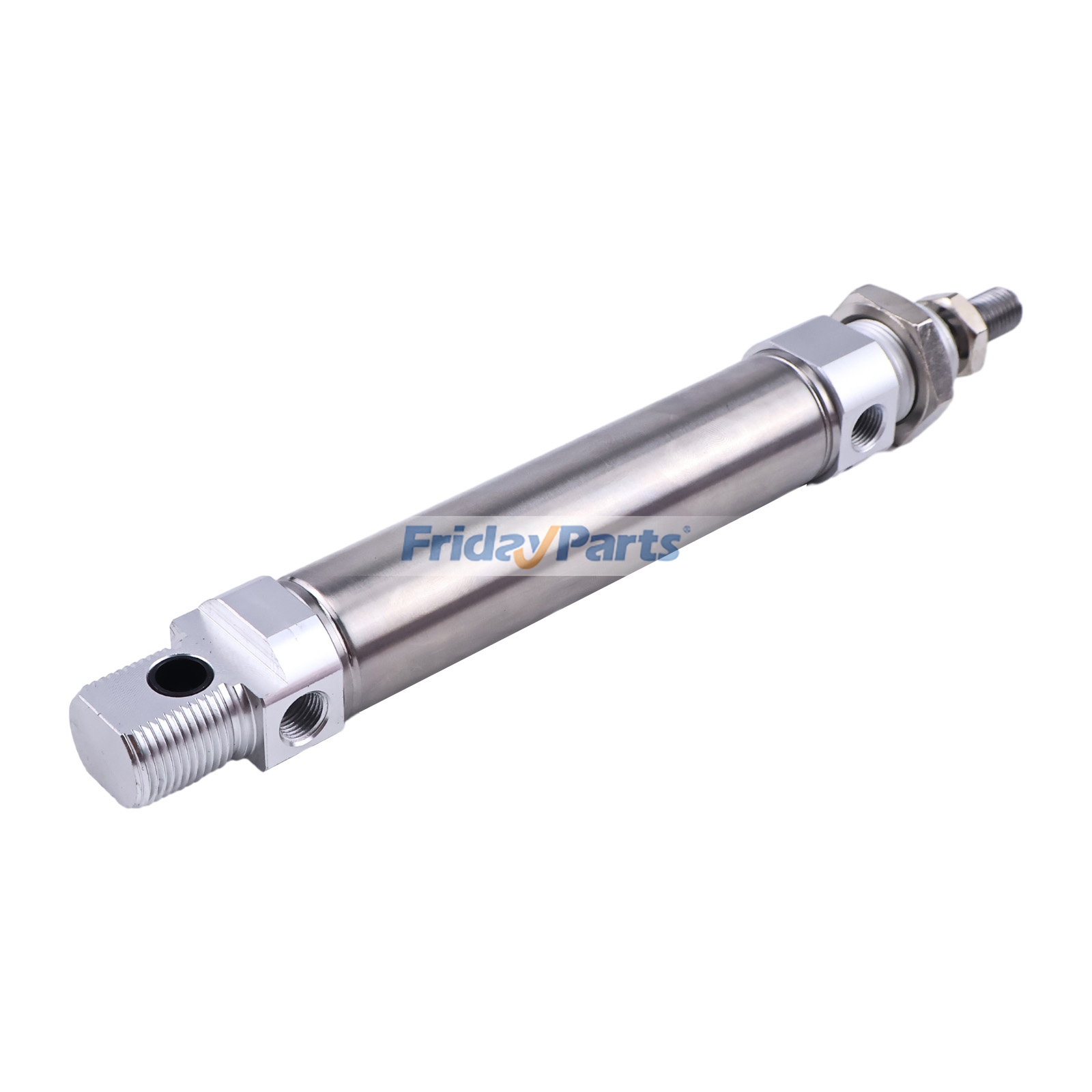

Aftermarket Festo DSNU-25-80-PPV-A 19247 Pneumatic Cylinder for Automation Systems and Industrial Equipment

Aftermarket Festo DSNU-25-80-PPV-A 19247 Pneumatic Cylinder for Automation Systems and Industrial Equipment

Replacement Part Number: DSNU-25-80-PPV-A, DSNU2580PPVA, 19247

Specification:
Stroke: 80 mm
Piston diameter: 25 mm
Piston rod thread: M10x1.25
Cushioning: PPV: Pneumatic cushioning adjustable at both ends
Assembly position: Any
Conforms to standard: CETOP RP 52 P, ISO 6432
Piston-rod end: Male thread
Design structure: Piston, Piston rod, Cylinder barrel
Position detection: For proximity sensor
Variants: Single-ended piston rod
Operating pressure: 1 ... 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 ... 80 °C
Maritime classification: See certificate
Impact energy in end positions: 0.3 J
Cushioning length: 17 mm
Theoretical force at 6 bar, return stroke: 247.4 N
Theoretical force at 6 bar, advance stroke: 294.5 N
Moving mass with 0 mm stroke: 71 g
Additional weight per 10 mm stroke: 11 g
Basic weight for 0 mm stroke: 238 g
Additional mass factor per 10 mm of stroke: 6 g
Mounting type: With accessories
Pneumatic connection: G1/8

Applications:
Fit for Automation Systems Industrial Equipment and so on machines with Festo Pneumatic Cylinder DSNU-25-80-PPV-A.
