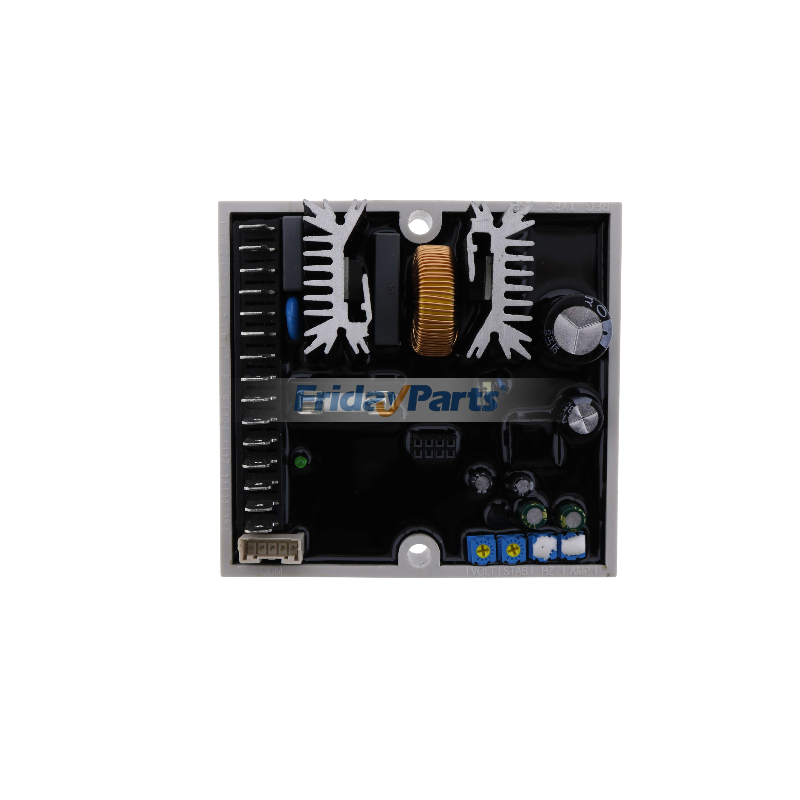

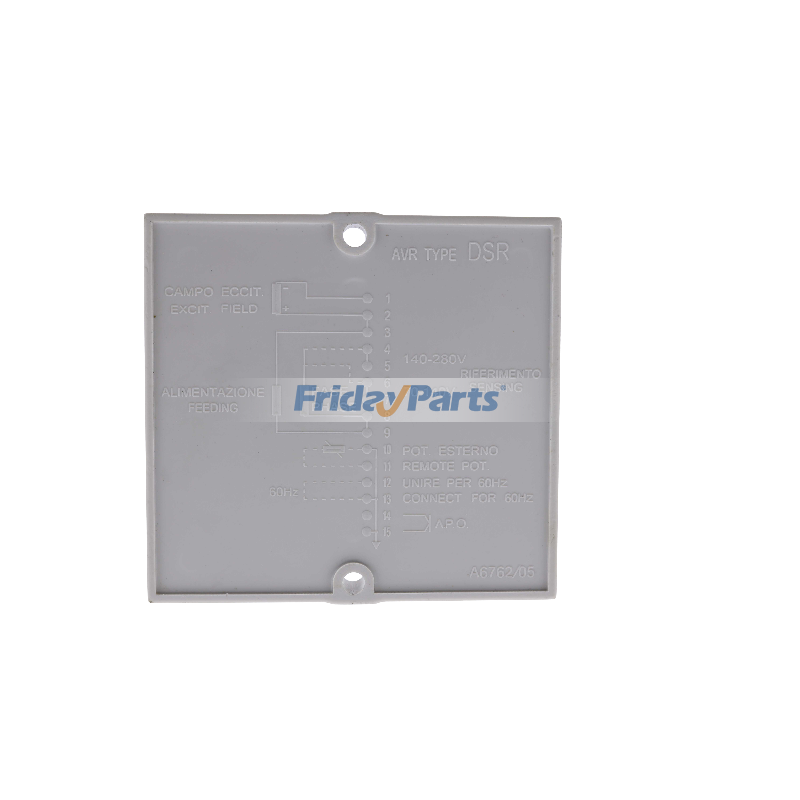

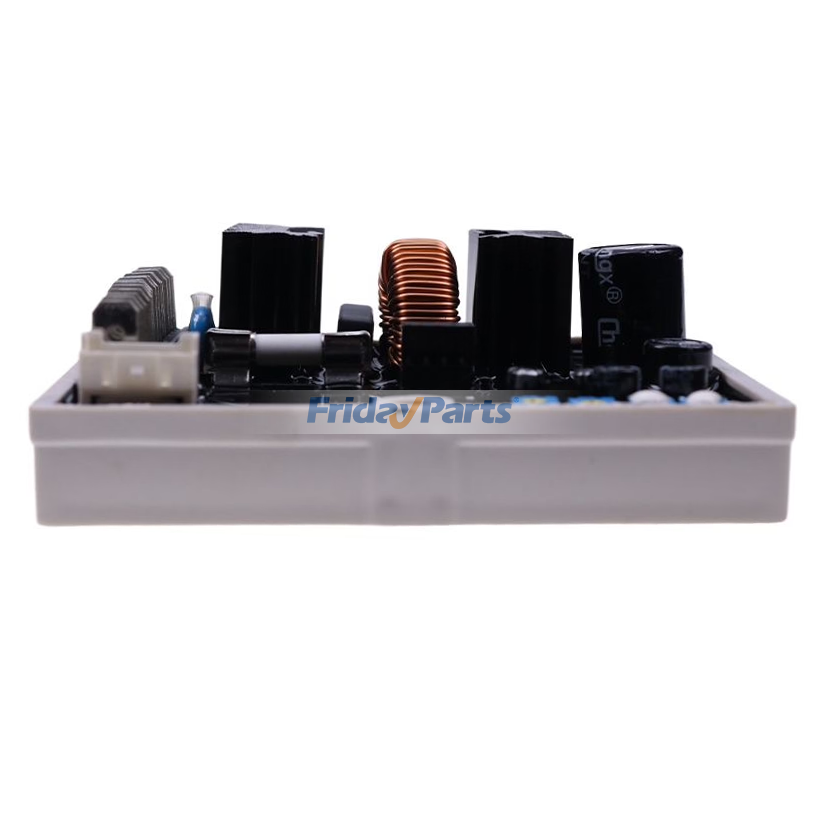

Automatic Voltage Regulator AVR DSR A6762/04 A6762/05 for Meccalte Generator
Replace Part Number:
A6762/04, A6762/05, A676204, A676205, A6762-04 A6762-05
Applications:
Fit for Meccalte Generator
Specifications：
| Product Type | Automatic Voltage Regulator (AVR) |
| Compatible Brand | Mecc Alte |
| Model | DSR |
| Part Numbers | A6762/04 / A6762/05 |
| Generator Type | Brushless synchronous generator |
| AVR Technology | Digital AVR |
| Sensing Voltage | Single-phase or three-phase |
| Sensing Voltage Range | 170 – 480 VAC (L–L or L–N, configurable) |
| Frequency Range | 50 / 60 Hz (auto-sensing) |
| Power Supply Input | From generator auxiliary winding |
| Excitation Output Voltage | Max. 120 V DC |
| Excitation Output Current | Continuous: up to 4 A DC Intermittent: up to 7 A DC |
| Voltage Regulation Accuracy | ±1.0% |
| Response Time | Fast transient response |
| Protection Functions | Over-voltage, under-frequency, loss of sensing |
| Adjustment | Voltage, stability, UFRO via trimmers |
| Operating Temperature | –25°C to +70°C |
| Typical Applications | Industrial gensets, standby generators, commercial power systems |
| Brand: | FridayParts |
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | A6762-04 A6762-05,A6762/04,A6762/05,A676204,A676205 |
