If the air conditioning system is failing under hot weather, it maybe will cause operator fatigue and costly downtime. Although many people perhaps will suspect the major components, such as the compressor, the problem often originates from a smaller and frequently misunderstood part: the AC dryer. Neglecting the health condition of this part is a mistake, which may lead to a series of failures in the entire air conditioning system. This guide aims to provide you with the professional knowledge you need. We will accurately explain the concept and working principle of the air conditioning dryer, elaborate on the six key warning signals of its failure, show you how to identify these symptoms, and clearly indicate when the dryer must be replaced.

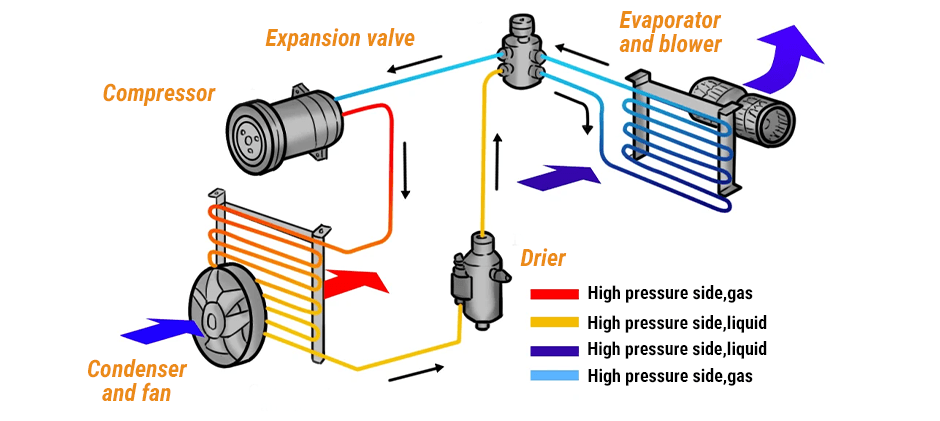

What is an AC Dryer and How Does it Work?
The AC dryer is one small tank-shaped component, which is located at the high-pressure part of the air conditioning circulation, usually between the condenser and the expansion valve. Although it does not appear eye-catching, its function is of vital importance to the health and longevity of the entire system.
Its working principle and role are as follows:
- Moisture Removal (Its Primary Job): The primary function of the AC dryer is to absorb the moisture. Inside the dryer tank, there is contained a desiccant, and this kind of material can strongly adsorb and retain the water molecules, just similar like the silica gel packet inside the new electronic product. Moisture is the number one enemy of the air conditioning system. If let it is let circulate, it will be mixed with the refrigerant to form the corrosive acid, which will corrode the metal components from the inside to the outside. Under the cold conditions, it even will freeze and cause blockage.
- Filtration: The receiver dryer is playing the role of the filter, capturing the solid contaminants. These contaminants may include the tiny metal fragments generated by the normal wear of the compressor, or the debris which has entered into the system during the previous repairing process. By capturing these particles, it can protect the sensitive and expensive components in the subsequent pipeline, such as the expansion valve and the AC evaporator.
- Refrigerant Storage: It is serving as the temporary storage container for the liquid refrigerant. Along with the variation of the cooling demand of the cabin, the dryer can ensure to provide the expansion valve with a stable and bubble-free liquid refrigerant supply, in order to realize the optimal performance.
In essence, the air conditioning receiver-drier can ensure that the refrigerant circulating inside the system is pure, dry, and always being ready for the cooling of the cabin.
6 Warning Signs and Symptoms of AC Dryer Failure
A failing AC dryer will almost always produce noticeable symptoms. Being able to recognize these signs early can save you from a much larger and more expensive system-wide failure.
1. Poor or Inconsistent Cooling Performance
This is the most common and at the same time the most direct symptom. If the desiccant bag inside the AC dryer ruptured or the internal filter is filled with debris, then it will be causing the blockage. Such a blockage will restrict the flow of the liquid refrigerant toward the AC evaporator. When the supply of the refrigerant is not sufficient, the evaporator cannot cool to a degree enough to cool the air that is blowing into the cabin. The result is that the air coming out from the vent is becoming warm, weak, or fluctuating between the cold and the warm.
2. Visible Frost or Icing
This is a sign of a serious blockage inside the AC dryer. According to the law of thermodynamics, when high-pressure liquid is forced to pass through the restrictor, its pressure decreases rapidly, causing the temperature to drop sharply. If your AC dryer becomes blocked, the point of the blockage will be functioning as this kind of restrictor. The refrigerant will be expanding and cooling rapidly at this point, making the outside of the dryer or its outlet pipeline to become cold enough to freeze the moisture from the surrounding air, and thus forming the visible frost layer or the ice layer.
3. Foggy or Oily Film on Interior Windows
If you discover a persistent mist film on the inner side of the cabin window that is difficult to clean, it possibly indicates that the desiccant bag inside the AC dryer has ruptured. The desiccant is composed of tiny beads. After the bag of desiccant has ruptured, these beads will be crushed into a fine powder. This kind of powder will be mixed together with the refrigerant oil, forming the aerosol, and will be blown away throughout the whole system, finally being discharged from the vent, leaving behind the tiny oily residue upon the window.
4. Unpleasant Musty or Moldy Odor
The capability of the desiccant inside the AC dryer for absorbing the moisture is belonging to the limited. Once it becomes completely saturated, it can no longer perform its function, and any additional moisture entering the system will circulate continuously.This moisture will be accumulating in the dark and damp environment of the evaporator housing, providing the ideal breeding bed for the mold. Therefore, every time the fan is turned on, an unpleasant “dirty-sock” smell will be blown into the cabin.
5. Rattling Noises from the Engine Bay
If you are hearing from the region of the AC pipeline the sound of “ka-da, ka-da,” then it is possible that the sound belongs to the AC dryer. For the heavy-duty equipment, there are two possible reasons:
- Internal failure: The desiccant bag has ruptured, and the loosened desiccant particles are making the “ka-da, ka-da” noise inside the metallic canister.
- Loose installation: The continuous and violent vibration of the construction site is causing the installation bracket of the dryer, as time passes, to become loosened, leading the dryer to vibrate and to collide with the frame or with other components.
6. Visible Refrigerant Leaks at the Fittings
Although the leakage may occur at any location, the inlet and the outlet joints of the AC dryer are the common points of failure. Because of the high temperature and the vibration, the sealing elements will age as time goes on. Because the refrigerant will immediately evaporate, you may not necessarily be able to see the liquid dropping down. On the contrary, you should be checking whether, around the joints, there is greasy residue. The refrigerant oil, along with the refrigerant circulating, will be leaving at the leaking location a film of oil which is attracting the dust and the dirt.
How to Identify Bad AC Dryer Symptoms?
Now that you know the signs, performing a quick diagnostic check is straightforward. When the engine is running and the AC is turned on, you can perform a basic inspection.
| Symptom to Check For | How to Identify It | Likely Cause Related to AC Dryer |
|---|---|---|
| Poor Cooling | Run the AC on max. Is the air from the vents consistently cold or is it lukewarm? | Internal clog is restricting refrigerant flow. |
| Frost/Ice | Visually inspect the AC receiver drier canister and the lines connected to it. Look for any white frost. | Severe internal clog is causing a rapid pressure drop. |
| Rattling Noise | With the engine running, listen carefully in the area of the drier. | A desiccant bag has ruptured or mounting brackets are loose. |
| Oily Residue | Inspect the inlet and outlet fittings on the drier. Is there a buildup of oily dirt? | The seals are leaking refrigerant and oil. |
| Musty Smell | Turn on the fan. Does a foul odor come from the vents? | The desiccant is saturated and can no longer absorb moisture. |
This simple checklist can help you determine if the AC dryer is the likely source of your air conditioning problems, allowing you to have a more informed conversation with your mechanic.
When Do You Need to Replace an AC Dryer?
This is the most critical piece of information for any equipment owner. There is one unbreakable rule when it comes to this component:
You MUST replace the AC dryer ANYTIME you open the AC system to the atmosphere for a repair.
There are no exceptions to this rule. The moment you open the system, the desiccant inside the drier contacts the humidity in the air. It will immediately begin to absorb this moisture, and within a very short time, it will become fully saturated and completely useless. You must plan to replace the AC receiver dryer in any of the following situations:
- When replacing the AC compressor.
- When replacing a leaking condenser or AC evaporator.
- When replacing any ruptured or leaking AC hose.
- If you know the system has a leak and you leave it uncharged for an extended period.
Replacing the dryer is a low-cost insurance policy for your entire AC system.
In Conclusion
The AC dryer is small in volume and low in price, but it carries the important duty of protecting the most expensive components inside the air conditioning system. If one learns to recognize the 6 key warning signals of its failure and understands that any large-scale maintenance of the air conditioning system requires replacing the dryer, one can prevent the small problem from escalating into a systemic disaster. At that time, by selecting a high-quality and reasonably priced aftermarket AC dryer from a trustworthy supplier such as FridayParts, you can protect the system without increasing repair expenses.
