It’s frustrating when the engine or transmission warning lights on the dashboard keep coming on. It often signals a serious issue. If a quick scan reveals the P0871 fault code in your Cummins transmission system, the situation may seem more confusing. What does this code mean? Can it be ignored? The answer is no. P0871 typically indicates a significant issue with the transmission fluid pressure sensor, requiring immediate attention.
Reading this article will help you solve all your problems. We’ll explain the meaning of P0871 Code, its causes, and how to diagnose and fix it promptly, eliminating any confusion surrounding this fault code. Let’s get started!
Key Takeaways
What It Is: The P0871 code means the TCM has detected an abnormal fluid pressure reading in the overdrive circuit.
Common Symptoms: Expect harsh shifting, gear slipping, loss of power, or overdrive not engaging.
Common Misdiagnosis: People often blame the sensor or solenoid, but these may just be reporting a deeper issue.
Real Culprit: In most cases, it’s due to internal hydraulic leaks in the transmission valve body, not a failed electronics part.
Urgency: This is often your last warning before overdrive clutch failure and a costly transmission rebuild. Fix it fast.

What Does the Cummins P0871 Code Mean?
At its core, the diagnostic trouble code P0871 stands for “Transmission Fluid Pressure Sensor/Switch ‘C’ Circuit Range/Performance.” Let’s break that down into plain English. Your heavy-duty transmission relies on hydraulic fluid pressure to engage and disengage different clutch packs, which allows it to shift gears. The Transmission Control Module (TCM) needs to know what this pressure is at all times. It gets this information from a series of pressure sensors or switches.
The P0871 code is a “rationality” code. This means the TCM isn’t just seeing a high or low pressure; it’s seeing a pressure reading that makes no logical sense for the current situation. For example, the TCM might command the overdrive circuit to be off, but the pressure sensor is reporting that the circuit is pressurized. This conflict tells the TCM that something is fundamentally wrong within the hydraulic circuit, so it triggers the warning light and stores the P0871 code.
What Causes the P0871 Code?
Understanding the cause is critical to avoiding a common and costly mistake. Many people see a code related to a pressure sensor and immediately replace the sensor or the entire solenoid pack it’s part of. While this can sometimes be the fix, it often isn’t. Sometimes the information detected by the sensor is what triggers the code, but the root cause is almost always mechanical wear.
Common Symptoms of P0871 in Cummins Engines
When the Cummins P0871 code is active, your machine’s performance will suffer noticeably. Be on the lookout for:
- Harsh or Erratic Shifting: The transmission may slam into gear, or shifts may become unpredictable and rough.
- Getting Stuck in Gear: The transmission might go into a “limp mode” and refuse to shift out of a single gear (often second or third) to protect itself from further damage.
- Failure to Shift into Overdrive: Your machine may not be able to reach its top travel speed, as the transmission cannot engage the final overdrive gear.
- Loss of Pulling Power: Especially on grades or under heavy load, the machine may feel weak due to slipping clutches.
- Transmission Overheating: Internal hydraulic leaks cause friction and heat, which can lead to overheating warnings and rapid fluid degradation.
- Illuminated Check Engine or Transmission Warning Light: This is the most obvious sign that a code has been stored.

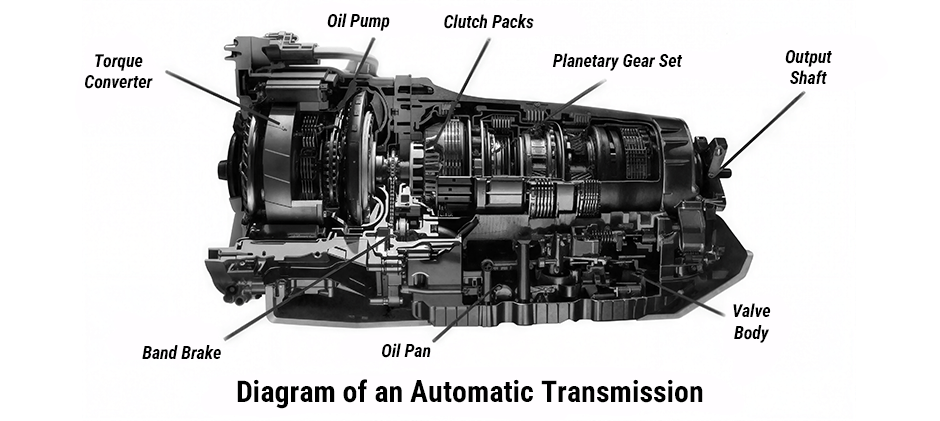

Key Components Behind a P0871 Fault
| Component | Description |
|---|---|
| Transmission Control Module (TCM) | The computer that controls all transmission functions. |
| Valve Body | A complex maze of channels, valves, and springs that directs hydraulic fluid to the correct clutch packs, the hydraulic control center. |
| Solenoid Valve | A group of electronically controlled valves is mounted on the valve body. The TCM commands these to open/close to direct fluid flow. |
| Transmission Fluid Pressure Sensor | Measures hydraulic pressure in a specific circuit and reports it to the TCM. The sensor in the overdrive circuit relates to P0871. |
The most common cause of the Cummins P0871 code is wear in the bores of the valve body where the solenoid switch valves operate. These valves shift back and forth thousands of times, gradually wearing down the aluminum bores. Once worn, high-pressure fluid can leak past the valve and into an adjacent circuit at the wrong time, creating the illogical pressure that the sensor detects.

How to Diagnose the P0871 Code?
Diagnosing the Cummins P0871 code correctly requires a methodical approach, moving from simple visual checks to more advanced testing. Rushing this process is how you end up replacing parts that aren’t broken.
Step 1: Preliminary Diagnostics (The Basics)
This is the first line of defense and can be done with basic tools and a careful eye.
1. Check Transmission Fluid
- Level: Low fluid causes pressure issues. Check with engine running and at operating temperature per manufacturer guidelines.
- Condition: The fluid should be bright and clean under normal conditions. But if it’s dark, burnt, or contains metal shavings, that’s a strong sign of internal damage—not just a P0871 code—and you might be looking at the need for a full rebuild.
2. Scan for Other Codes
At this point, it’s important to use a quality OBD-II scanner to check for any additional transmission-related codes. When codes for incorrect gear ratios (such as P0734 or P0735) appear along with a P0871, it’s a strong indication that the overdrive clutches are already damaged and slipping.
3. Visual Inspection of Wiring
Carefully inspect the entire wiring harness that runs to the transmission. Look for any obvious signs of damage:
- Chafed or melted wires.
- Corroded pins in the main connector.
- Loose or disconnected plugs.
- Damage from debris or heat exposure.
Step 2: Intermediate Electrical Checks (Requires a Multimeter)
If everything looks good so far, then the next step is to move on to testing the electrical components in the circuit. For this, you’ll need a digital multimeter and some familiarity with how to use it. Make sure you also have the service manual for your specific machine—it’s the only way to get the right pinouts and resistance specs.
- Test the Pressure Sensor: Disconnect the transmission harness and measure resistance across the overdrive pressure sensor pins. Compare with the service manual specs. A reading of infinite (open circuit) or zero (short circuit) means the sensor has failed.
- Test the Solenoid: Measure the resistance of the overdrive solenoid. If it’s outside the specified range, the solenoid is likely faulty.
Step 3: Advanced Diagnostics (Professional Level)
If all the electrical components and wiring test correctly, the problem is almost certainly hydraulic and internal to the transmission.
- Live Data Monitoring: A scan tool lets technicians compare the TCM’s commanded state with the actual pressure switch reading. If the switch shows ON when the TCM says OFF, it’s clear proof of an internal hydraulic cross-leak.
- Hydraulic Pressure Testing: This is the most reliable test. By connecting pressure gauges to test ports, a tech can measure pressure in real time. Pressure in the overdrive circuit when it should be zero confirms valve body wear or seal leak.
How to Fix the P0871 Code?
The solution for the P0871 code depends entirely on the results of your diagnosis.
Solution 1: Addressing Fluid and Wiring Issues
If your diagnosis found a problem in the preliminary steps, the fix is straightforward:
- Low Fluid: Top up the transmission fluid to the correct level with the manufacturer-specified type.
- Damaged Wiring: Repair or replace the damaged section of the wiring harness. Ensure all connections are clean and secure.
After performing these fixes, clear the codes and operate the machine to see if the code returns. If it does not, you have found your problem.
Solution 2: Replacing the Sensor or Solenoid Pack
If your electrical tests pointed to a failed overdrive pressure sensor or solenoid valve, then replacing the component is the next step. On most heavy-duty transmissions, this involves dropping the transmission oil pan to access the valve body where these parts are mounted.
- Important Note: This is often a temporary fix if you have not confirmed the root cause. If the underlying issue is valve body wear, a new solenoid pack will soon be subjected to the same improper hydraulic pressures, and the code will likely return.
Solution 3: Servicing the Valve Body
If your diagnosis points to an internal hydraulic leak, the valve body must be addressed. This is the most common and most permanent solution for the P0871 code. You have two main options:
- Replace the Valve Body: A remanufactured valve body is often the best option—it usually includes upgraded parts that fix original design flaws, making it more durable than a new OEM unit. If unavailable, new aftermarket valve bodies are also a solid choice, often offering better performance than stock.
- Have the Valve Body Rebuilt: A specialized transmission shop can machine the worn bores in your existing valve body and install oversized valves and plugs to restore hydraulic integrity.
This is a complex job that requires removing the valve body from the transmission. While it is more involved, it is the only way to permanently resolve a problem caused by internal wear.
Solution 4: Rebuild It
If you see clutch debris or have gear ratio codes, the damage is already done. The P0871 was just a warning—your overdrive clutches are burned out. At this stage, fixing the valve body alone won’t help. You’ll need a full rebuild with new clutches, seals, gaskets, and valve body repairs. It’s the most costly and time-consuming fix.
When Do You Need to Seek Professional Assistance?
You should call a qualified heavy equipment mechanic if:
- You are not comfortable performing electrical diagnostics.
- You lack the specialized tools, like advanced scanners or hydraulic gauges.
- The diagnosis points to an internal problem, like a bad valve body or clutch failure.
- You have performed a repair (like replacing a sensor), and the code returns.
Transmission work is complex and unforgiving. A small mistake can lead to major damage. Knowing when to call in a professional is a skill in itself.
Conclusion
The P0871 code on your Cummins engine’s transmission is a serious warning that demands a thorough and logical diagnostic approach. While it can be tempting to jump to conclusions, taking the time to rule out simple fixes before tackling complex internal components will save you time, money, and frustration. When it comes time for repairs, trust FridayParts to provide the high-quality aftermarket components you need, from sensors and solenoids to complete valve body kits. At the same time, we offer affordable and reliable alternative solutions for original factory parts, which can replace the expensive original parts and help you resume work more quickly.
