The undercarriage system does constitute one of the most extravagant singular investments amidst the upkeep of excavator equipment, oft accounting for no less than half of the total expense of repair. Wherefore the span of its longevity becometh of paramount consequence. Yet, to inquire “How long endureth the life of an excavator undercarriage system?” resembleth greatly the questioning of how long a set of automobile tires may be pressed into service—there existeth no solitary answer. But, through the apprehension of pivotal variables, the discernment of tokens of attrition, and the adherence to practices most judicious, one may obtain a most precise estimation, thereby seizing dominion over the fate of one’s maintenance. This present treatise shall furnish a practical disquisition upon the life expectancy of the undercarriage system and lend succor in the prolongation of its span.
Key Signs of Excavator Undercarriage Wear
Before discoursing upon the span of service (reckoned in hours), one must first apprehend what semblance a fatigued undercarriage assumeth. Proactive scrutiny is verily the sovereign stratagem for averting calamitous fracture and unbidden cessation. In the diurnal patrol, attend with utmost vigilance unto these portents of attrition.
- Stretched or “Snaking” Tracks: As the inner pins and bushings within the chain grow consumed, the aggregate length increases, which phenomenon is denominated “pitch extension.” Thereby the track, in its advance, appeareth slackened or to meander sideward like a serpent.
- Pointed Sprocket Teeth: The virgin sprocket tooth is thick and rounded. Yet, as the track chain yieldeth to attrition, it chafeth upon the sprocket, transfiguring the cusp into a sharp “shark-fin” likeness. Once sharpened, it doth precipitate with swiftness the further erosion of the chain itself.
- Worn Rollers and Idlers: Behold whether the rolling surfaces of the rollers present flattened provinces. Inspect whether the rims (outer margins) grow thinned or notched, whence the track shall deviate. Any visible leakage of oil from the roller or idler proclaimeth seal demise, and if unreplaced, the component shall soon seize.
Loose Hardware: The violent throbbing of the excavator induces the bolts affixing track shoes, rollers, and guards to loosen. Missing or loosened hardware is a perilous omen demanding instant redress. - Excessive Noise and Vibration: Should the undercarriage utter unaccustomed raspings, shrieks, or collisions, or should the advance become jolting and unsteady, it is manifest evidence that the members are already consumed and no longer may proceed with smooth operation.
How Many Hours Does an Excavator Undercarriage Last?
This is the million-dollar question. While there is no fixed number, we can provide a reliable range based on decades of industry data. On average, a new excavator undercarriage can last anywhere from 4,000 to 6,000 operating hours.
However, this range is massive. The actual lifespan you experience will fall into one of three general categories, depending entirely on how and where the machine is used.
“We run two identical excavators. One works in sandy, abrasive soil and travels constantly; we’re lucky to get 3,500 hours out of its undercarriage. The other sits on a stockpile of soft loam and rarely moves; we’ve seen over 7,000 hours on that one. It’s all about the application and the operator.”
Let’s break down the expected lifespan by service type.
| Service Type | Typical Lifespan (Hours) | Operating Conditions |
|---|---|---|
| Severe Service | 2,500 – 4,000 Hours | Constant operation in hard rock, demolition debris, or highly abrasive sand. High-speed travel, frequent turning, and work on steep slopes. |
| Moderate Service | 4,000 – 6,000 Hours | The most common scenario. Work in mixed soils (dirt, clay, some gravel). A balance of digging and traveling. Good maintenance practices are followed. |
| Light Service | Column 2 Value 3 | Ideal conditions. Primarily stationary digging in soft soils like loam or clay. Minimal travel, wide turns, and operation on flat ground by an experienced operator. |
As you can see, a machine in a severe application may go through two full undercarriages in the time it takes for a machine in a light application to wear out one. This is why understanding the factors that influence this wear is so critical to managing your costs. When wear does occur, replacing individual components like a worn track roller or a damaged front idler can be a cost-effective way to extend the life of the entire system.
4 Factors Affecting the Undercarriage Lifespan
Four main factors determine whether your undercarriage will last 3,000 hours or 7,000 hours. The good news is that you have a significant amount of control over most of them.
1. Operating Conditions & Terrain
This is the one factor you have the least control over, as the job dictates the environment.
- Abrasiveness: Materials like sand, rock, and crushed concrete are highly abrasive and act like sandpaper, grinding away at steel components. Soft materials like clay and topsoil are much less aggressive.
- Impact: Working in rocky terrain or demolition involves high-impact loads that can chip roller flanges and bend track shoes.
- Moisture & Packing: Materials like mud and clay can pack into the undercarriage components. As this material dries, it becomes as hard as concrete, seizing rollers and dramatically accelerating wear on every moving part.
2. Operator Habits
The operator has a massive influence on undercarriage life. A smooth, skilled operator can easily add 1,000+ hours to an undercarriage’s lifespan compared to an aggressive or inexperienced one. Key habits include:
- Minimizing Unnecessary Travel: Excavators are designed to dig, not to travel long distances. Use a truck or trailer to move the machine between distant points on a job site.
- Controlling Speed: High-speed travel, especially in reverse, causes a huge amount of wear on the pins and bushings. The track is designed to wear less when moving forward.
- Making Wide Turns: Sharp, pivoting turns (counter-rotating) put immense side-load pressure on rollers, idlers, and the track chain itself. Make wide, gradual turns whenever possible.
- Working Up and Down Slopes: Avoid traveling or working sideways across a steep slope (“side-hilling”). This shifts the machine’s weight to the downhill side, causing accelerated wear on those rollers and track links.
3. Maintenance Practices
This is where you have the most control. Excellent maintenance is the secret to a long-lasting undercarriage.
- Daily Cleaning: This is the single most important maintenance task. At the end of every shift, use a shovel and pressure washer to remove all packed mud, rock, and debris from the undercarriage.
- Proper Track Tension: A track that is too tight causes immense friction and wear on every component. A track that is too loose can cause the track to derail. Check the track sag regularly and adjust it according to the manufacturer’s specifications for your specific working conditions (e.g., looser for packing conditions).

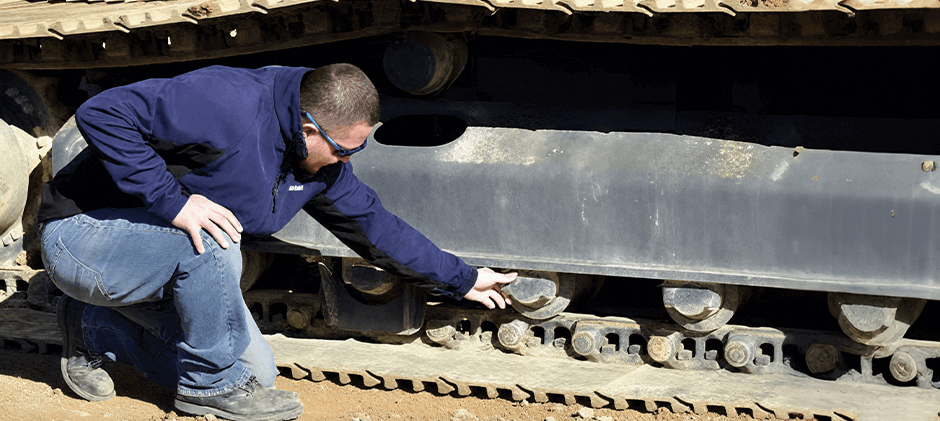

- Regular Inspections: The daily walk-around is not just a suggestion. Look for the wear signs mentioned earlier. Catching a leaking carrier roller or a loose bolt on your chain guard early can prevent a much larger and more expensive failure down the line.
4. Part Quality and Machine Configuration
The parts you use matter.
- Quality of Components: When it’s time for replacement, choosing high-quality parts is crucial. Premium undercarriage parts are made from high-carbon, boron-alloyed steel and are properly heat-treated to provide a deep, hardened wear surface that resists abrasion and impact.
- Track Shoe Width: Use the narrowest track shoe possible for your application. Wide shoes are great for flotation in soft mud, but on hard or rocky ground, they increase stress on the undercarriage and are more easily bent.
Warning Up
The longevity of the excavator undercarriage system is not a number fixed in stone, but rather a direct consequence of its usage span and the manner of its upkeep. While one is powerless to alter the conditions of the ground upon which the machine treads, yet the habits of the operator and the methods of maintenance lie within the realm of control, whereby the utmost essence of each component may be extracted. When, in the course of inevitability, wear manifests itself and replacement becomes requisite, then to consort with a trustworthy aftermarket purveyor like FridayParts is verily the most sagacious stratagem. By obtaining, at modest prices, a copious stock of parts possessed of both quality and durability, one may curtail idle hours, diminish cost per hour, and sustain the machine’s vigor and profitability.
