Choosing the right hydraulic seal kit depends on the seal type, material, operating pressure, temperature, and more. This guide explains the main types of hydraulic seals, compares common seal materials, and covers the key factors to check before buying a replacement seal kit.

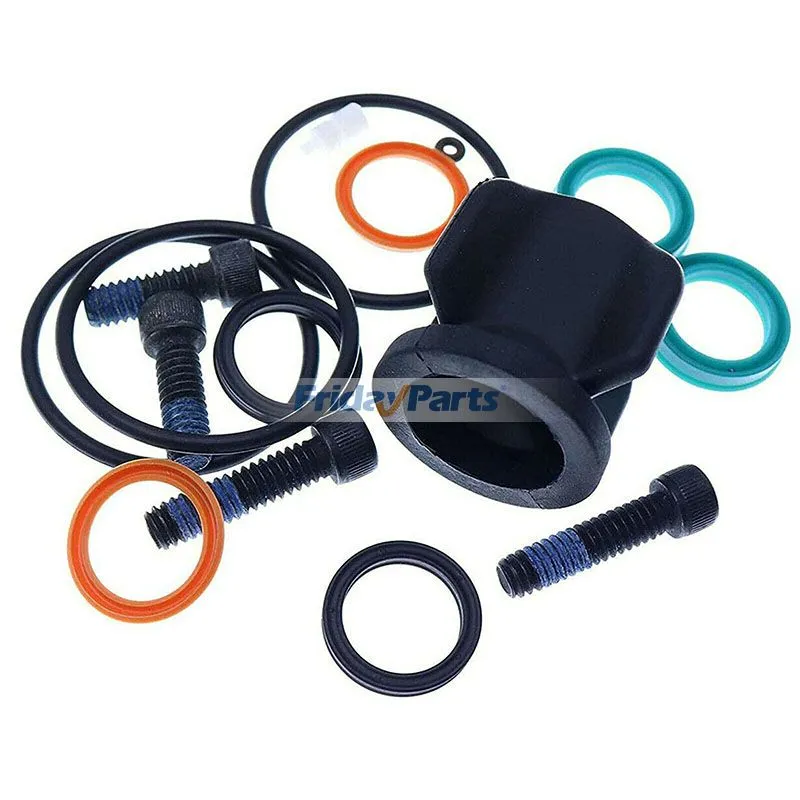

Hydraulic Seal Types and Applications
In hydraulic systems, we group seals by where they sit on the cylinder and what job they do. Every seal has its own job, and they all help your hydraulic parts last longer. Here are the key seal types you should know:
- Rod Seal: This dynamic seal sits right in the cylinder head. As the cylinder rod slides in and out, it stops hydraulic oil from leaking out of the cylinder. It holds system pressure and keeps oil inside where it belongs.
- Piston Seal: Mounted on the piston itself, this is also a moving‑part seal. It keeps oil from slipping past the piston between the two sides of the cylinder. That way pressure can build properly, so the cylinder pushes or pulls with its full power.
- Wiper (Scraper): The wiper is super important for keeping dirt out. It fits on the outer face of the cylinder head. When the rod slides back inside, it wipes away dirt, dust, mud and moisture off the rod. This keeps grime from getting into your cylinder and ruining internal parts and the hydraulic oil.
- Static Seals: Unlike moving dynamic seals, static seals go between parts that don’t move against each other — for example, between the cylinder barrel and end cap. O‑rings and backup rings are typical examples. Their main work is to seal up the joint tight and stop high‑pressure hydraulic fluid from leaking out.
- Wear and Guide Rings: These don’t actually hold back oil at all. Their job is to guide the piston and rod inside the cylinder. They take side‑to‑side loads, so metal parts such as the piston and cylinder bore won’t rub directly against each other. This cuts down wear on those costly metal components a whole lot.
Materials of Hydraulic Seals
There are 5 major seal kit materials, NBR, PU, Viton, Teflon, and EPDM. From oil resistance to durability under high pressure or temperature, different materials offer unique benefits. They also should be applied to different scenarios. Some are for oil-based systems while others may show a good performance in water-based systems. Understanding the properties of each material will help you maintain your hydraulic system efficiently.
1. Nitrile Rubber (NBR)
NBR is one of the most common materials for hydraulic seals due to its excellent resistance to oils, greases, and hydraulic fluids. The good thing is that It has a competitive price but it has a shortcoming. In terms of extreme temperatures, particularly high heat it shows limited tolerance, which can cause it to degrade.
2. Polyurethane (PU)
Polyurethane is known for its superior durability and high tensile strength. It is a rather popular choice for dynamic sealing applications where components experience frequent movement, such as piston or rod seals. However, same as NBR, its performance may decline in extremely high-temperature environments. So if your machinery is under a heavy workload, the NBR and PU are not your best choices.
3. Fluorocarbon (Viton)
Unlike the other two above, Viton is highly regarded for its exceptional resistance to both high temperatures and harsh chemicals. (It is actually a brand name for fluorocarbon.) This makes it ideal for applications where the hydraulic system operates under extreme heat or comes into contact with aggressive fluids, such as solvents or acids. So, you can tell that it also costs more to afford a Viton seal kit. Medical equipment, refrigeration systems, the chemical industry, etc. have a special preference for this material.
4. PTFE (Teflon)
PTFE, commonly known by the brand name Teflon, is a material known for its low friction and excellent chemical resistance. It performs exceptionally well in high-pressure environments and can tolerate a wide range of temperatures. PTFE is also resistant to almost all chemicals and provides minimal wear, which reduces the need for frequent replacements. However, it is less elastic than other materials like NBR or PU, which means it may require additional support in some sealing applications.
5. EPDM
While the above-mentioned other materials are appropriate for oil-based systems, EPDM (ethylene propylene diene monomer) is not good enough to deal with that… But It is particularly well-suited for systems that involve water-based hydraulic fluids, steam, and coolants though. It offers excellent resistance to heat, weathering, and ozone. For example, EPDM seals are widely used in the 2010-2019 Ford F-150, Caterpillar 320D, and etc. Since these machines have high requirements for temperature resistance, corrosion resistance, and anti-aging performance, and have a water-based hydraulic system, an EPDM seal is ideal.
Factors to Consider When Choosing Seals
When purchasing the proper seal kits, you have to consider several key factors. Pressure level, temperature, size, fluid compatibility, and machine operating speed are the 5 main considerations. Details such as speed of movement should be taken care of, too.
Pressure Level
First, the seals must be able to withstand the operating pressure of the system without deforming or failing. It is wise to select a seal that can cope without breaking. Under a heavy workload situation, sometimes, more expensive selections are the ones to purchase. The seal design should create a tight fit while minimizing friction. It also needs proper lubrication to avoid wear and tear.
Temperature
Temperature is another important factor. Not all seals can withstand high pressure. Besides the operating temperature, the seal needs to handle any temperature changes in its surroundings. For instance, a seal placed in a climate-controlled space might not tolerate the extreme temperatures found outdoors. If your machinery is often exposed to extreme cold or high heat, NPR or PU won’t be your perfect selection.
Size
FridayParts also strongly recommends you read your hydraulic manual before buying, which may indicate what kind of seal kit and size is ideal. When purchasing a seal, remember to carefully check the compatibility and size information of the seals to see if they match your machine model.
Fluid Compatibility & Movement Speed
As we talk above, check whether your hydraulic system is water-based mainly or oil-based mainly. If it is water-based, EPMD ones are strongly recommended. In dynamic applications, the speed of movement must be accounted for, as higher speeds can cause excessive wear on the seals. Lastly, environmental factors such as dust, dirt, or moisture can affect the longevity of the seals, so the operating environment should always be considered when selecting the right seals.
How to Measure Hydraulic Cylinder Seals?
Getting the exact measurements of your old seals is crucial for finding the perfect replacement. Here is a step-by-step guide on how to measure them correctly:
- First, identify your seal profile: Start by looking at the cross-section of your seal and matching it against a standard seal profile chart. (You can often find or download seal profile catalogs online to help with this).
- Measure the seal’s Outer Diameter (OD), Inner Diameter (ID), width, and height: Often, the dimensions are printed directly on the seal. If not, you can measure the seal using a ruler, verniers, or calipers. When measuring diameters, be sure to take multiple measurements around the seal in order to calculate an accurate average measurement.
- Measuring multi-part seals: For seals that come in multiple parts, carefully measure the Outer Diameter (OD), Inner Diameter (ID), and the width of the complete seal assembly.
- Measuring Bearing Rings: When measuring Bearing Rings (or wear rings), make sure to take your measurements including the gap.
- Measuring O-Rings: For O-Rings, measure the cross-section using a ruler, calipers, or verniers. Always measure an O-Ring from its internal sides. Alternatively, you can measure an O-Ring using a specialized measuring cone. All measurements can then be cross-referenced with a standard O-Ring chart.
- Ordering replacement seals: Having the correct measurements makes ordering replacement seals much easier and ensures a proper fit. If you are still unsure about your measurements, our knowledgeable team at FridayParts is always on hand to help you out.
Signs of Seal Kits Replacement
Seal kits are consumptions, so regular checks and replacements are necessary. Visible signs of wear, such as cracks or deformation, are clear indicators that the seals need replacing. Hydraulic fluid leaks around cylinders or pumps also suggest seal failure. Additionally, a noticeable drop in system performance or pressure loss can indicate that the seals are no longer providing a proper seal and should be replaced to avoid further damage to the equipment.
Conclusion
Proper maintenance could greatly extend seal kits lifespan. What you should do is do regular inspections, keep your hydraulic system clean, and operate your equipment within the recommended pressure and temperature range to avoid overstressing the seals.
If you have to replace them with new ones, remember to select the proper types and materials.
