The undercarriage is a complex system of moving parts that gives your excavator maneuverability and stability. However, it endures harsh conditions and can also lead to significant component degradation and damage. This often goes unnoticed until a failure occurs. This article will guide you through the definition of undercarriage damage, its common causes, a detailed repair process, and key preventative measures to protect your investment.
What Is Undercarriage Damage?
The undercarriage system refers to the entire assembly beneath the machine, inclusive of track, frame, and all the components that drive and guide them. One may regard it as the legs and feet of the equipment. This system consists of several key parts functioning together:
- Track chain and track shoes: the “belt” contacts the ground.
- Rollers: inclusive of bottom track rollers carrying the weight of the machine, and top carrier rollers supporting the return of the track.
- Idlers and sprockets: the front idler guides the track at the front, while the sprocket, as a gear at the rear, engages with the track chain to drive the machine.
- Track frame: the structural pillar connecting all these components.
The damage to the undercarriage system means any form of wear, breakage, or failure affecting these parts. Its scope ranges from slight abrasive wear to catastrophic failure, such as the fracture of the frame or the seizure of the roller. Since such damage to the undercarriage may occupy up to 50% of the total maintenance cost during the entire service life of the machine, understanding and managing this damage does not merely mean repairing, but also protecting your bottom line.
Why Did the Undercarriage Damage?
Although a certain degree of abrasion cannot be avoided, premature and accelerated destruction usually comes from some particular factors. Identifying these factors can make you adjust the operation, thereby prolonging the life span of the component.
1. Abrasive and severe environment
The ground on which the machine is working is regarded as the most crucial element. The materials, such as sand, gravel, and rock, behave like sandpaper, unceasingly abrading the rollers, carrier rollers, and the track links. When working in an environment of high corrosivity, such as acidic soil or a region with high salinity, the wearing of the metal can also be significantly accelerated.
2. Improper Operation
The manner in which one manipulates the machine exerts a direct influence upon the longevity of the undercarriage. Certain habits of utmost harmfulness may be enumerated as follows:
- Excessive High-Speed Operation, Especially in Reverse: The fundamental design intention of the track resides primarily in forward locomotion. Should one persist in high-velocity backward travel, the consequence shall be the undue attrition of bushings and sprockets.
- Counter-Rotation and Sharp Turns: When the operator compels the machine into sudden rotational placement, immense lateral load stress shall be imposed upon the track links, pins, and roller flanges. To execute turns with a wider arc and gentler manner is invariably the preferable course.
- Constant Work on Slopes: When the machine operates laterally on slopes, the total mass naturally shifts onto the downhill side, which hastens the erosion of the rollers and idler flanges located there.
3. Material Accumulation
When slurry, clay, snow, or debris accumulate inside and around the undercarriage components, such a circumstance is considered to occur. The accumulated materials may produce tremendous destruction. They increase the weight, impose additional burden upon the engine and transmission system, and may obstruct the free movement of the components. What is even worse, such materials may freeze overnight, severely jamming the rollers, while exerting enormous pressure upon the seals, thereby causing leakage and bearing failure.
4. Improper Track Tension
The adjustment of track tension requires a subtle equilibrium.
- Too Loose: If the track remains excessively loose, it may “derail” or slip away from the idler and rollers, particularly when turning or operating upon uneven ground. Such a phenomenon may result in severe damage to the frame and surrounding components.
- Too Tight: If the track remains excessively tight, it generates overwhelming friction and burden throughout the entire system. Such a condition accelerates, in a significant manner, the wear of pins, bushings, rollers, idlers, and sprockets.
How to Fix Undercarriage Damage?
When one harbors suspicion regarding the damage of the undercarriage system, the employment of a systemic method possesses crucial significance for precise diagnosis as well as effective repair. The neglect of problems, even those appearing minor, almost certainly will result in the emergence of subsequently more expensive failures.
Step 1: Cease operation and locate a secure and level area
Once the operator perceives abnormal noise, experiences excessive vibration, or observes the machine deviating to one side, they should at once stop working. Then, they should move the machine to a flat and stable surface to carry out the examination safely.
Step 2: Conduct a thorough cleansing of the undercarriage system
One cannot diagnose what the eyes fail to perceive. The accumulation of mud and debris is capable of concealing cracks, leakages, and worn components. First, employ a shovel or iron rod to remove the larger congested substances, and afterwards utilize a high-pressure washer to clean the components comprehensively.

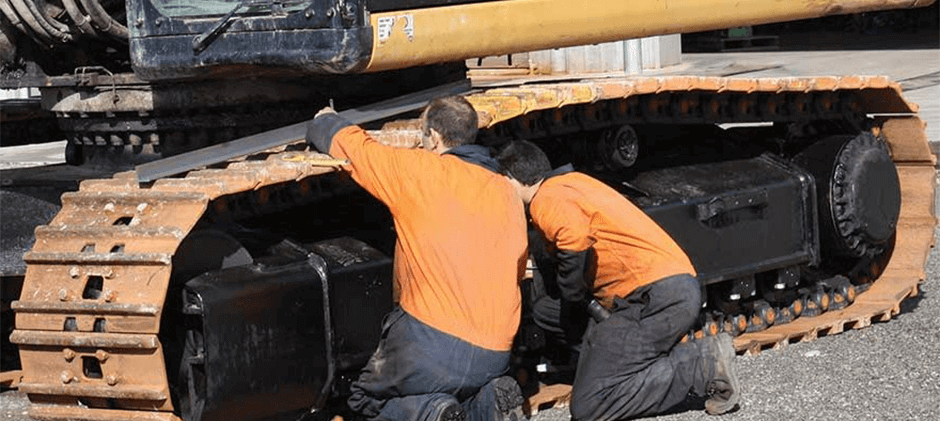

Step 3: Perform the Detailed Visual Inspection
After the chassis has been cleansed, one should examine, in sequence, each singular component.
- Track chain and track shoes: One ought to observe whether the track shoes carry any manifestation of cracking or bending. The bolts, by which the track shoes are fastened to the track chain, must be examined for any condition of looseness or absence.
- Rollers: One is required to inspect each lower roller individually. The existence of flattened portions (which signify that the bearing has seized) must be noted, as well as any leakage phenomena appearing around the seals. The same kind of scrutiny is also demanded of the carrier rollers above. A single defective roller will, in a rapid manner, injure the track links that proceed upon it.
- Idler and sprocket: The fore idler must be inspected for irregular wear upon its surface, for such an occurrence may denote a misalignment. The sprocket teeth must likewise be observed. With the advance of wear, the teeth shall grow sharp and take a hooked formation. A sprocket in grievous wear will fail to engage properly with the track bushings and will hasten the attrition of the entire chain.
- Frame and guards: One should examine the track frame for the presence of any cracking, most especially around the welds. It is requisite to ascertain that all rock guards remain intact and not bent into the passageway of the track.
Step 4: The Repair or Replace Decision
Once you’ve identified the problem, you need to decide on the fix.
- Minor Repairs: Some issues, like a cracked track frame, can sometimes be repaired by a certified welder. Loose bolts can simply be tightened to the correct torque specification.
- Component Replacement: For most wear-related issues, replacement is the only viable solution. Operators consider components like rollers, idlers, and sprockets as wear items. If a track roller seal fails and it loses oil, the internal bearings will quickly wear out, and you must replace the roller. The same is true for a worn-out sprocket or idler.
This is where sourcing quality parts becomes essential. Whether you need a single component or are performing a complete rebuild, using dependable aftermarket crawler undercarriage parts offers a cost-effective way to restore your machine’s performance without paying the high price of OEM parts. A reliable supplier can provide a vast inventory of excavator parts, ensuring you get what you need quickly to minimize downtime.
Step 5: Seek a Professional Assessment
If you discover grave structural impairment or remain in uncertainty regarding the magnitude of attrition, it is most advisable to invite a qualified technician of heavy-duty equipment to conduct a professional appraisal. They possess the specialized instruments for the measurement of attrition degree concerning internal pins and bushings, and furthermore, they are able to provide a comprehensive proposal for the execution of repair.
How to Prevent Undercarriage Damage?
Prevention is always regarded as more economical than repair. If one integrates these practices into daily operation, one can save thousands of dollars in the long term.
- Daily Inspection and Cleaning: Regard quick checking and cleaning as indispensable elements within both starting and shutting-down procedures.
- Practice of Intelligent Operation: Train operators to conduct wide-range and gradual turning, avoid reverse rotation, minimize the high-speed backward driving, and when moving up or down slopes, insist on straight-line instead of side-way motion.
- Maintain Correct Track Tension: Inspect track sag regularly according to the manufacturer’s specification. Excessively tight or excessively loose track becomes the primary cause leading to premature wear.
- Select Appropriate Track Shoes: Whenever possible, utilize the narrowest track shoes while still ensuring sufficient flotation. On hard and rocky ground, using wider shoes increases stress and wear upon the entire system.
When to Take Measures for Undercarriage Damage?
Once the operator discovers any of the following admonitory manifestations, immediate action is necessary:
- Novel or anomalous sounds: the frictional rasp, the shrieking squeal, or the resounding detonation all constitute evident portents of difficulty.
- Excessive vibration: if the motion abruptly descends into a state of intolerable bumpiness, the carrier roller or idler may indeed have succumbed to malfunction.
- Visible leakage: the appearance of any trace of oil upon the exterior of the carrier roller or idler proclaims the failure of the sealing element.
- Recurrent derailment: if the track persistently disengages, it announces loosened chains, eroded guiding constituents, or a misalignment within the frame.
Do not “operate until the day’s conclusion.” A solitary impaired carrier roller may, in its contact, ruin the adjoining track links, transforming a diminutive repair into a colossal expenditure. Timely intervention remains the essential stratagem for the governance of cost.
A Final Word on Undercarriage Health
Your machine’s undercarriage is a complex system, with every component interdependent. Its health and longevity aren’t a matter of luck; they’re the direct result of diligent inspection, proper operation, and timely intervention. Consider preventative maintenance a valuable investment, and choose high-quality replacement parts when repairs are necessary. At the same time, choose Friday Parts as your preferred parts brand. As a long-standing parts supplier, we offer affordable parts with quality and service that far surpass the original equipment manufacturer. We proactively protect the value of your machine and maximize uptime on the jobsite.
