What is a Tractor Anti-lock Brake System?
On your tractor, the Anti-lock Brake System is a key safety features that prevent the wheels from locking up during hard braking. Instead of the wheels stopping entirely while the machine is still moving, the ABS rapidly pulses the brake pressure. This allows the wheels to keep rotating slightly, even during maximum braking effort.
Why is this essential for heavy equipment? On complex surfaces like muddy fields, loose gravel, or slick inclines, a locked wheel means a total loss of steering control. Badly, this can lead to dangerous skids or even tipping. The ABS keeps steering control while even braking, allowing you to maneuver around obstacles and bring the machine to a safe stop. It constantly monitors the speed of each wheel. If it finds one is about to lock, adjust the brake force on that specific wheel immediately. Keeping this system functional is essential for safe operation in tough environments.
Reasons Your tractor ABS light Can Come On

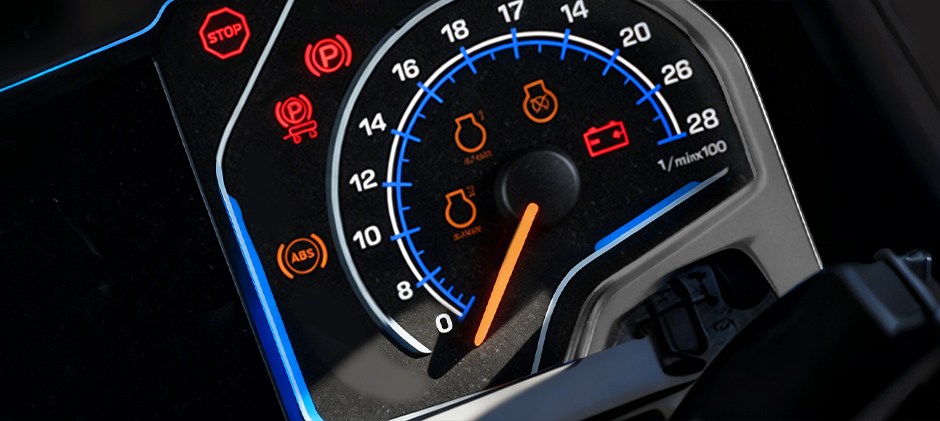

The tractor ABS light indicator is amber and marked with the letters “ABS”. It reminds you of whether the ABS is working normally. Like other construction lights, when the ABS light stays on, the system has detected a fault and likely disabled itself for safety. Your standard brakes will still work, but you’ve lost the anti-lock safety feature. Knowing the potential causes is the first step to fixing it. The problem is often located in several key areas as follows.

Malfunctioning ABS Module
The ABS module plays the role of the brain in the entire system. It receives data from the wheel speed sensors and decides when to activate the ABS pump to adjust brake pressure. On many tractors, the ABS module also communicates with the traction control system. Because these systems share information, a fault in one will trigger a warning light for the other. Like any electronic component, these modules fail due to electrical surges, internal corrosion, or simple wear over time. A module failure is a more complex issue; using professional diagnostic tools to confirm is necessary.
Low Levels in the Fluid Reservoir
In a hydraulic brake system, the brake system relies on pressurized fluid to work. If the brake fluid level in the reservoir drops too low, the sensor will detect it and trigger a warning. Tractors endure constant vibration and jarring movements, so brake lines or fittings will leak slowly over time. A low fluid level is a serious safety concern, as it can affect your entire braking ability, not just the ABS.
Broken or Dirty Wheel Speed Sensors
This is the most common reason, especially for tractors. Each wheel has a wheel speed sensor. Monitors its rotational speed and sends this information to the ABS module. Because these sensors are located right at the wheel hub, they are exposed to mud, dirt, and water.
- Contamination: blocks the sensor from getting an accurate reading due to a layer of thick mud or dirt.
- Damage: Physical damage comes from things like rocks or branches that can strike the sensor.
- Corrosion: Constant exposure to moisture corrodes the sensor’s electrical connector, interrupting the signal.
When the ABS module receives an illogical or missing signal from one of the sensors, it can no longer accurately determine wheel speed and will shut the system down, turning on the warning light.
Damaged or Dirty Tone Ring
The wheel speed sensor works in tandem with a tone ring (or reluctor ring). This is a notched or toothed metal ring that rotates with the wheel. As the teeth pass by the sensor, they create a magnetic pulse that the sensor reads to calculate speed. Like the sensors, these rings can also be a source of problems. Debris can get lodged between the teeth, leading to erratic signals. In more extreme cases, a severe impact could crack or warp the ring, making it unreadable.
System is Turned Off
Although it might sound too simple, it’s worth checking. On some heavy equipment models, operators can manually disable ABS or traction control when they need to. The switch was pressed by accident, which is also possible. If the light is on, read your owner’s manual to check if there is a deactivation switch. Ensure it is in the “On” position.
ABS Troubleshooting
When the tractor ABS light comes on, a systematic approach can help you find the problem efficiently. Here are the steps we recommend.
Visual Inspection
Before using any tools, start with a thorough visual check. This simple step can often find a common problem.
- Check Brake Fluid: Ensure the fluid is at the normal level and check for any visible leaks around the brake lines and calipers.
- Inspect Wheel Speed Sensors: Look at each wheel hub. Check for sensors that are covered in mud or dirt. Detect broken wires or damaged connectors leading to the sensors.
- Check the Fuses: Locate your machine’s fuse box and find the fuse. A blown fuse can disable the system. Usually, a fuse blows because of a potential electrical problem that needs to be fixed.
Decode the Fault Codes
If a visual inspection doesn’t work. Please retrieve the diagnostic trouble code (DTC) stored in the ABS module. This code will point you directly to the reasons for the fault. There are two ways to do this.
Reading ABS Blink Codes
Some tractor models have a feature called “blink codes.” You can make the ABS light flash in a pattern by taking a specific action (like turning the key in a certain sequence or pressing a diagnostic button). This pattern has a specific fault code. For example, two flashes, a pause, and then three flashes might mean “Code 23.” You would then look up that code in the service manual to identify the problem.
| Example Blink Code | Potential Meaning |
|---|---|
| 1-2 | Right Front Wheel Speed Sensor Fault |
| 1-3 | Left Front Wheel Speed Sensor Fault |
| 2-1 | ABS Pump Motor Failure |
| 3-5 | ABS Control Module Internal Error |
Note: This table is for illustrative purposes only. Always consult your machine’s specific service manual.
Using an OBD Scanner
How to Reset the Tractor ABS Light
Once you have identified and repaired the underlying issue (e.g., cleaned a sensor, replaced a broken wire), the light may turn off by itself after a short period of operation. If it doesn’t, you may need to reset it.
The most effective way is to use an OBD scanner, which will have a function to “Clear Codes.” This erases the stored fault from the module’s memory.
Another common method is to disconnect the machine’s battery for about 15-20 minutes. This can reset the memory of many of the vehicle’s computer modules, including the ABS. However, be aware that this does not fix the problem. If the fault still exists, the light will come right back on as soon as the system runs its self-check.
Conclusion
When the ABS warning light on your tractor lights up, it’s a sign that this key safety system isn’t working right. The reason could be all sorts of things—maybe just a dirty sensor, which is easy to fix, or something trickier like a broken module—but you can never brush this off. If you want to figure out exactly what’s wrong, start by checking things with your eyes first, then move on to pulling up the fault codes.
If you need to replace parts during repairs, whether it’s a new sensor or a full repair kit, FridayParts has you covered. We offer OEM-quality parts fit for John Deere, Kubota, Bobcat, and more brands, helping you get your tractor back on the road safely and quickly. Contact us today!
People Also Ask
Is it okay to drive with the ABS and brake lights on?
If both the ABS light and the main brake warning light are on, it is not safe to drive. This often shows a serious problem with the base hydraulic brake system, like very low fluid or a loss of pressure. We recommend stopping the machine immediately and checking it.
What are the potential risks of driving with the ABS light on?
If just the tractor ABS light is on, your standard brakes may still be working. However, the risk of wheel lock-up and skidding increased, especially on wet, icy, or loose surfaces. And you will have less steering control in an emergency stop. In some countries or areas, driving with the ABS light on could also have legal problems.
What if my ABS light starts blinking?
A steady ABS light indicates a stored fault. A blinking ABS light often signals a severe or active fault, requiring immediate attention. It is best to stop the machine in a safe place as soon as possible and call for service.
How much does it cost to fix the tractor’s ABS light?
The cost can vary a lot. A simple fix—like cleaning a dirty wheel speed sensor—might not cost much at all. Replacing a sensor or a bit of wiring isn’t expensive either. But if the problem’s with the ABS module or the hydraulic pump, the repair cost is higher. Good-quality aftermarket parts, though, usually give you a reliable fix without spending as much.
Will the ABS light reset itself?
Sometimes. For certain types of temporary faults (like a momentary loss of signal), the light may turn off on its own after the system runs several successful self-checks. However, for most “hard” faults where a component has failed, the light will remain on until the part is replaced and the code is cleared.
