Hydraulic Orbital Motor - Replaces Danfoss 151B-2186
Replacement Part Number: 151B-2186, 151B2186
Specifications:
Displacement: 489.97 Cm³/r [29.9 In³/r]

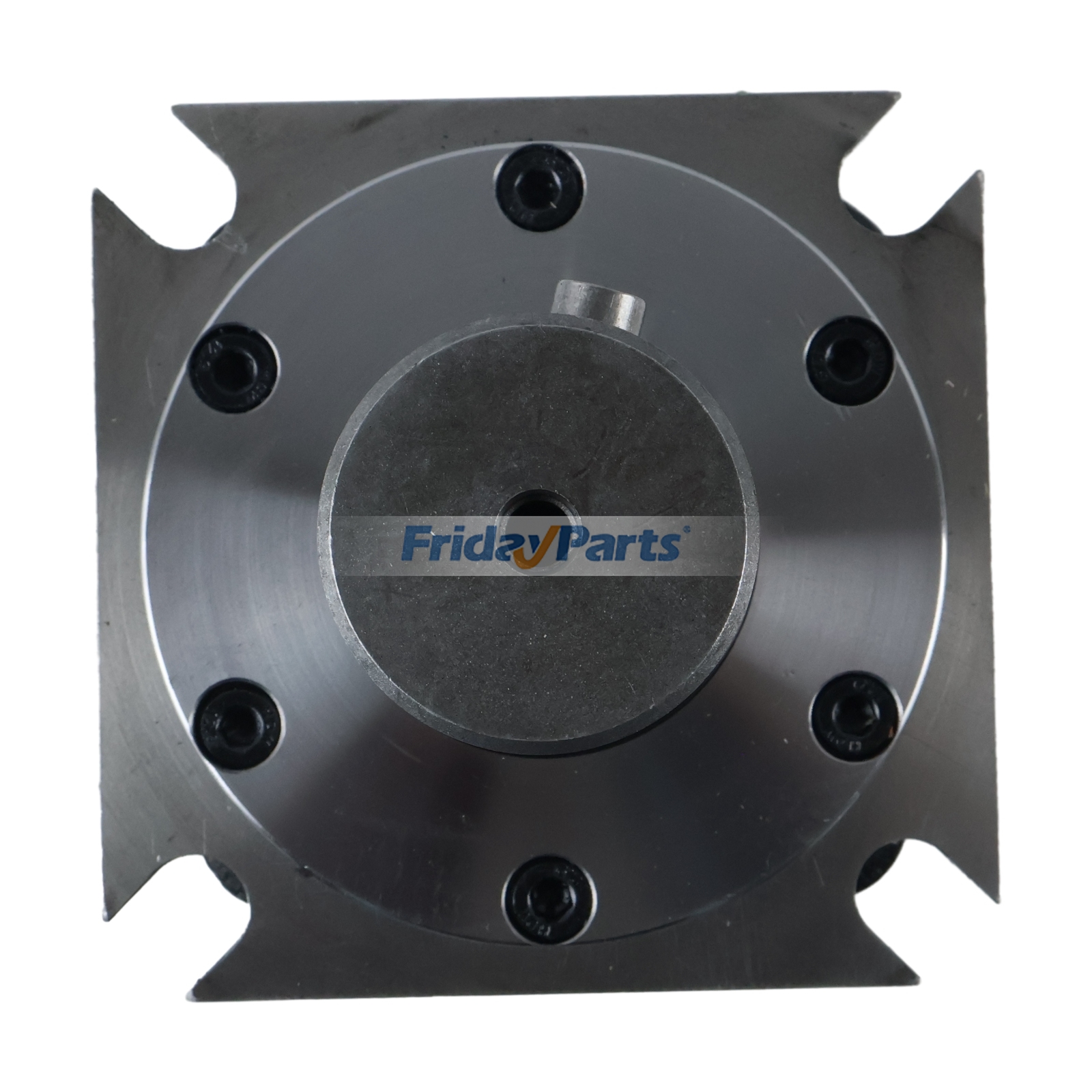

Mounting Type:
Standard, 4 Bolt Flange
127.0 [5.00] Pilot Dia.
16.76 [.660] Dia. Holes
On 161.92 [6.375] Dia. Bolt Circle

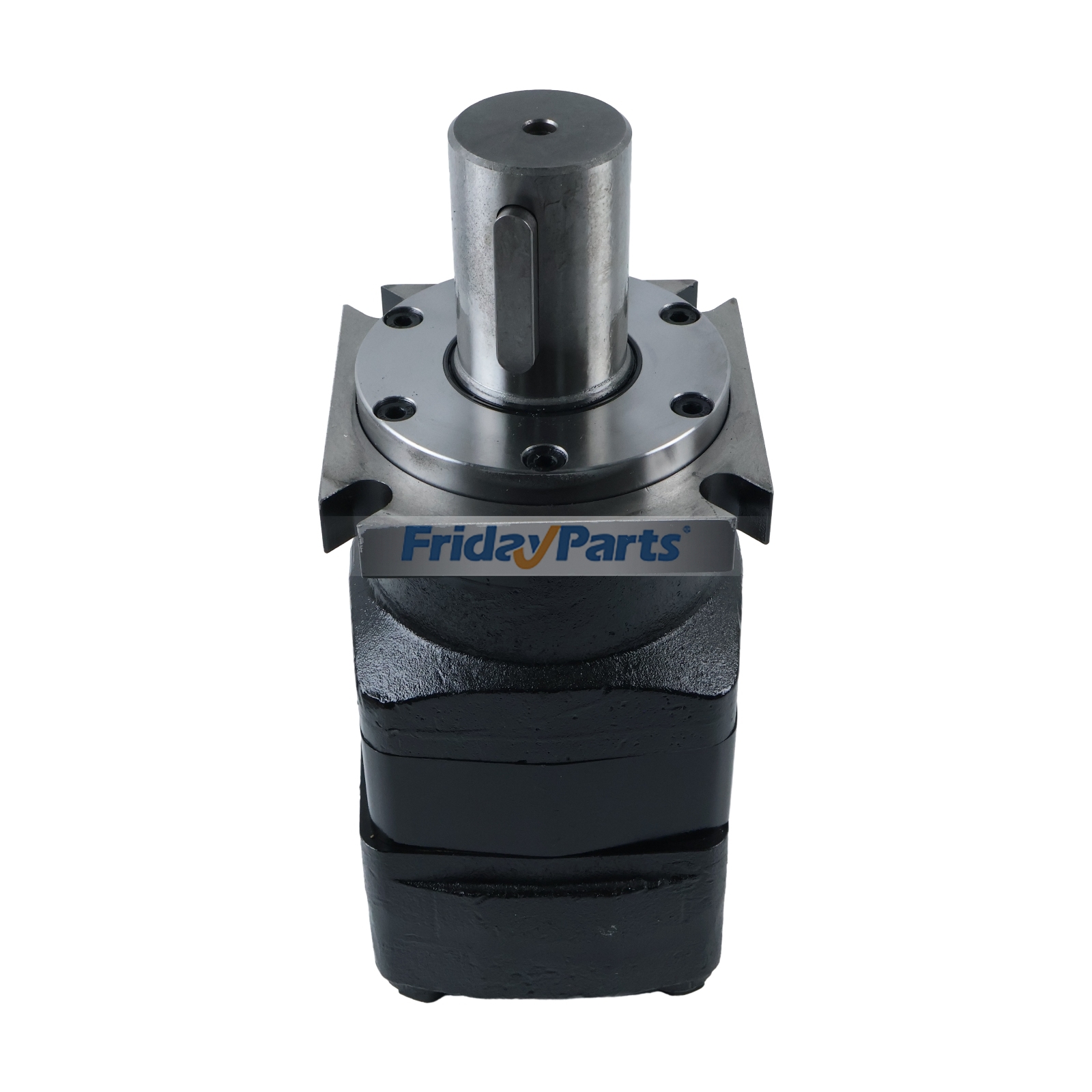

Output Shaft:
57.15 [2.250] Dia. Straight Shaft
With .500-20 UNF-2B Thread In End
12.7 [.50] Square × 63.5 [2.50] Straight Key

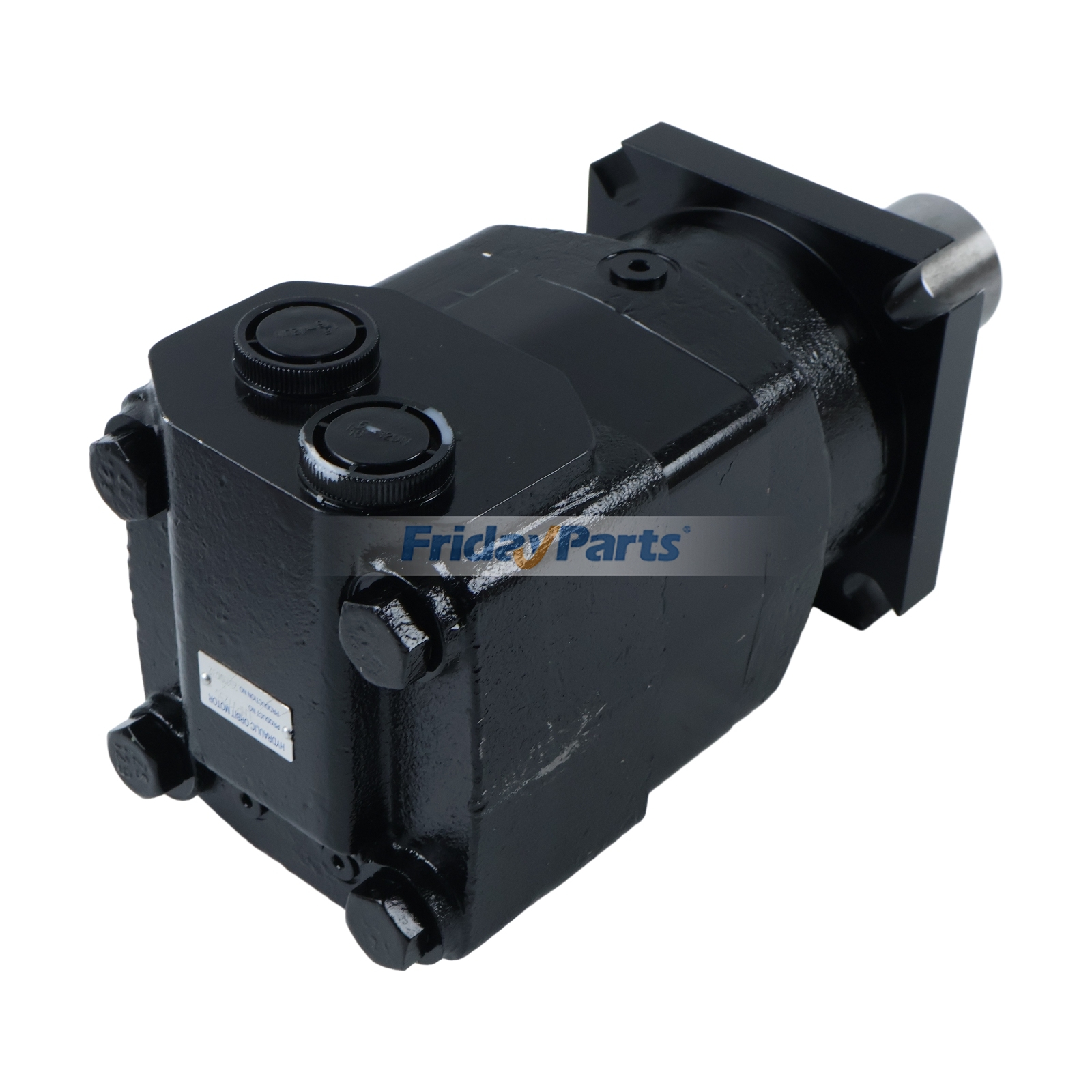

Ports:
1.875-12 UN-2B SAE O-Ring
Staggered Ports
Case Flow Options:
.5625-18 UNF-2B Case Drain
SAE O-Ring Port
Application:
This is an aftermarket hydraulic orbital motor designed to directly replace Danfoss 151B-2186. It is suitable for use in a wide range of loaders, tractors that requires the Danfoss 151B-2186 hydraulic orbital motor specification.
Disclaimer:
This part is not manufactured by or affiliated with Danfoss. It is an independent aftermarket product.
| Brand: | FridayParts |
| Compatible Model Brand: | For Danfoss |
| Replacement Part Number: | 151B-2186 |
