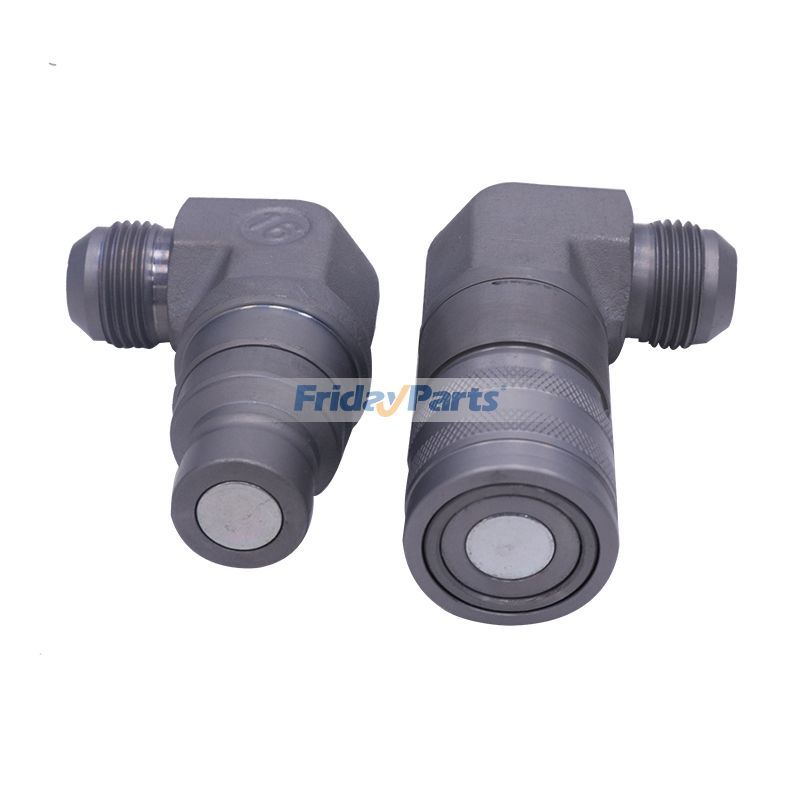

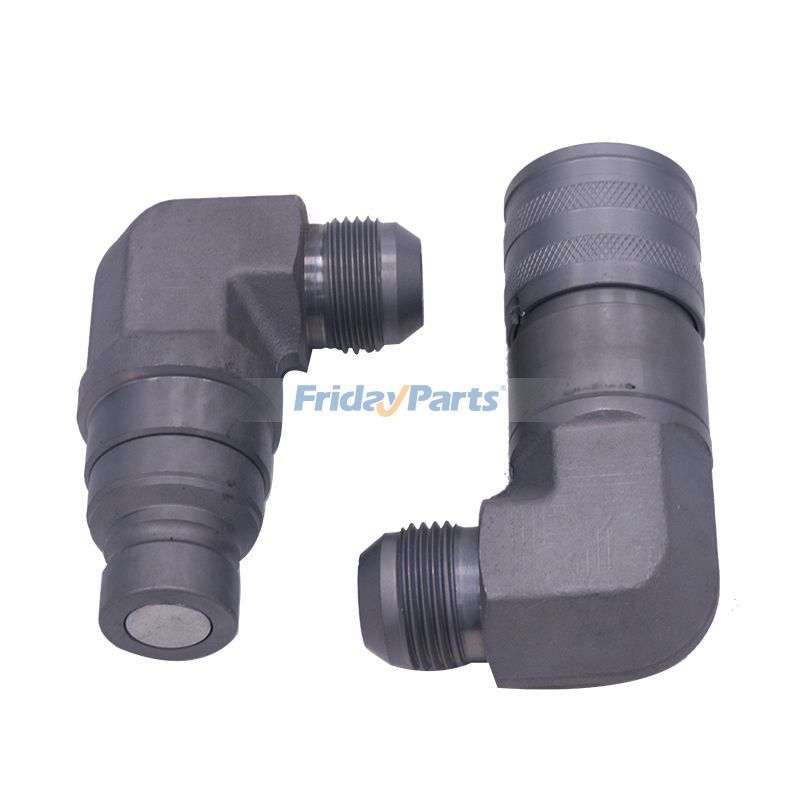

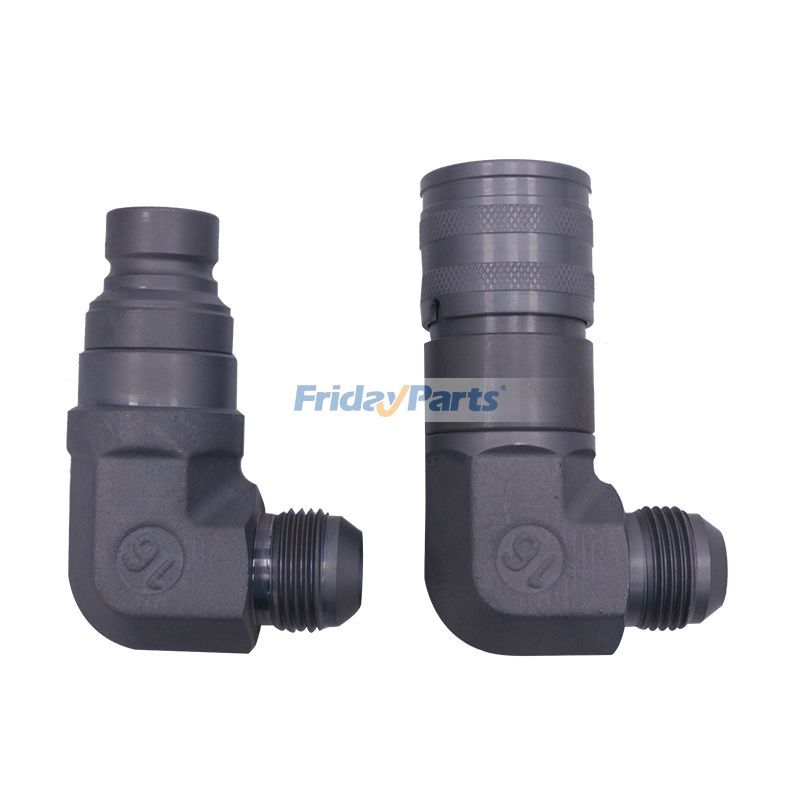

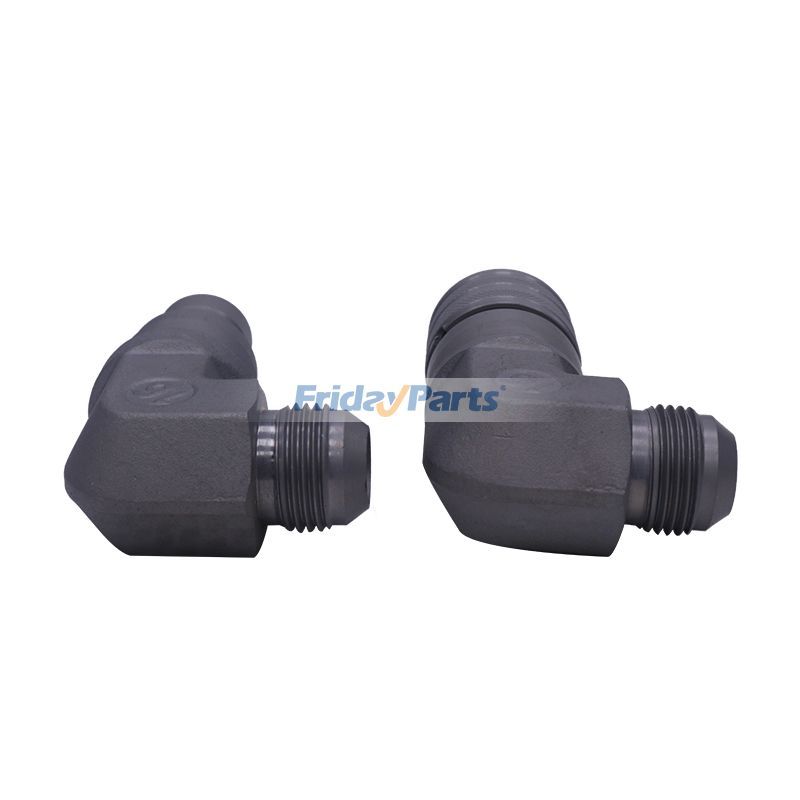

Male & Female Hydraulic Coupler Kit 7246795 7246781 for Bobcat Loader A300 653 753 853 963 S130 S185 S205 S300 S530 S630 S750 S850 T190 T200 T320 T550 T595 T740

Male & Female Hydraulic Coupler Kit 7246795 7246781 for Bobcat Loader A300 653 753 853 963 S130 S185 S205 S300 S530 S630 S750 S850 T190 T200 T320 T550 T595 T740

Part Number:
Male Flat Face Coupler:7246795
Female Flat Face Coupler:7246781

Applications:
90 Degree Flat Faced Male Coupler, 1/2" body, 1-1/16" JIC thread, 7246795
Bobcat flat faced couplers are engineered to have no leaks during connection and disconnection, as well as long-lasting polymer seals to sustain dirty and dusty conditions that are typical in agriculture and construction.
No fluid spillage or air inclusion keeping equipment safe and clean
Avoid costly fluid spills
Internal components designed to maximize fluid flow with minimal change in pressure
Push to connect
Working pressure of 35 MPa
High grade carbon steel with zinc-nickel plating
ISO 16028 interchange
Half inch body size
1-1/16 inch JIC thread
Manfacturers Part Number: FFH08-61/34S M

Fits the following Bobcat attachments:
Backhoe, Box Blade, Brush Saw, Concrete Mixer, Landscape Rake, Mower, Planer, Rotary Cutter, Snowblower, Spreader, Sweeper, Tiller, Tree Spade, Wheel Saw

90 Degree Flat Faced Female Coupler, 1/2" body, 1-1/16" JIC thread, 7246781
Bobcat flat faced couplers are engineered to have no leaks during connection and disconnection, as well as long-lasting polymer seals to sustain dirty and dusty conditions that are typical in agriculture and construction.
No fluid spillage or air inclusion keeping equipment safe and clean
Avoid costly fluid spills
Internal components designed to maximize fluid flow with minimal change in pressure
Push to connect
Working pressure of 35 MPa
High grade carbon steel with zinc-nickel plating
ISO 16028 interchange
Half inch body size
1 1/16 inch - 12 JIC thread
Manufactures stamp: 3FFH08-61/34SFS

Fits the following Bobcat equipment:
All Wheel Loader: A220, A300, A770
Attachments: Angle Broom, Backhoe, Grapple, Planer, Snow Blade, Snowblower, Trencher, V-Blade, Wheel Saw
Skid Steer Loader: 653, 751, 753, 763, 773, 853, 863, 873, 883, 963, 3650, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850
Track Loader: 864, T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Kit Include:
1*Male Flat Face Coupler
1*Female Flat Face Coupler
