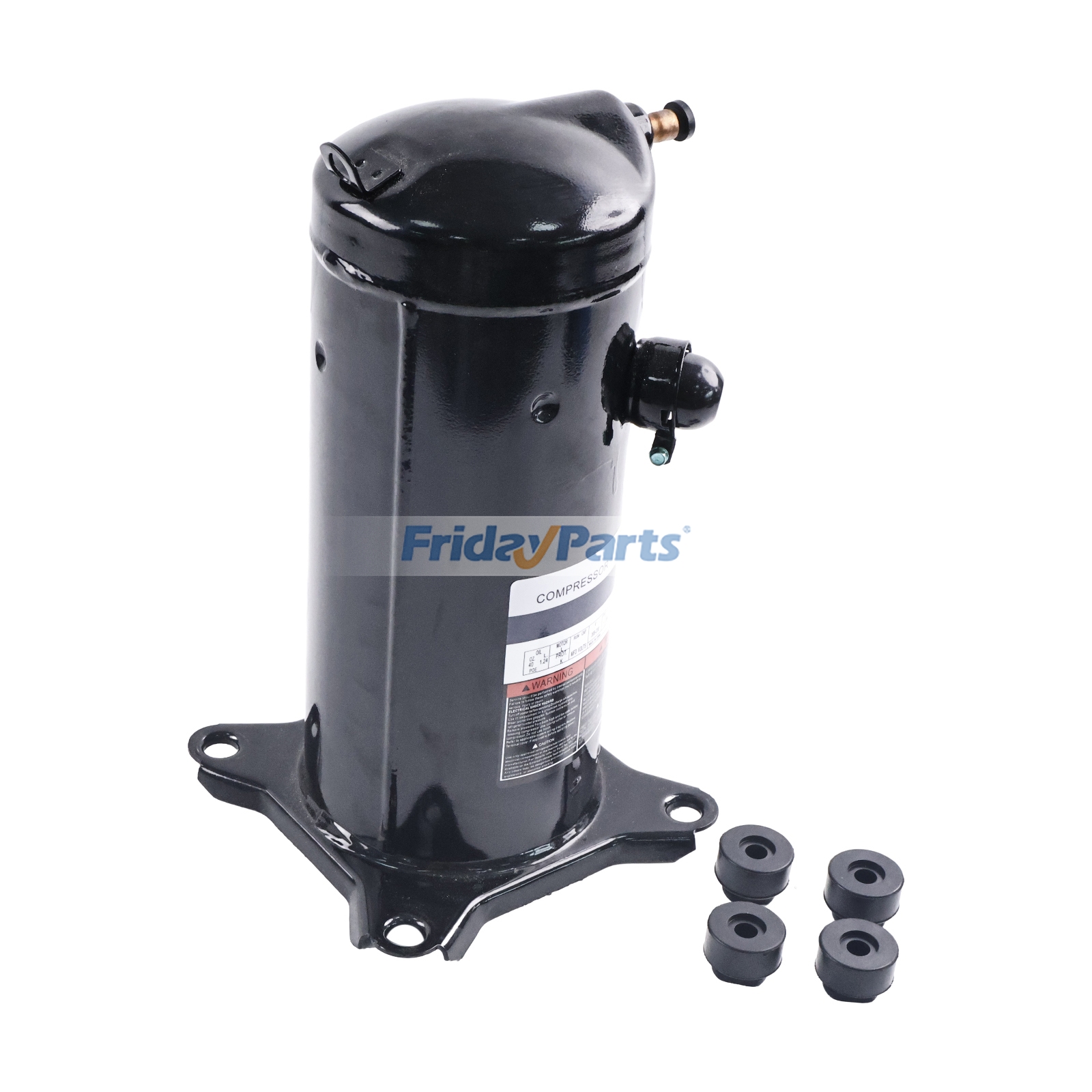

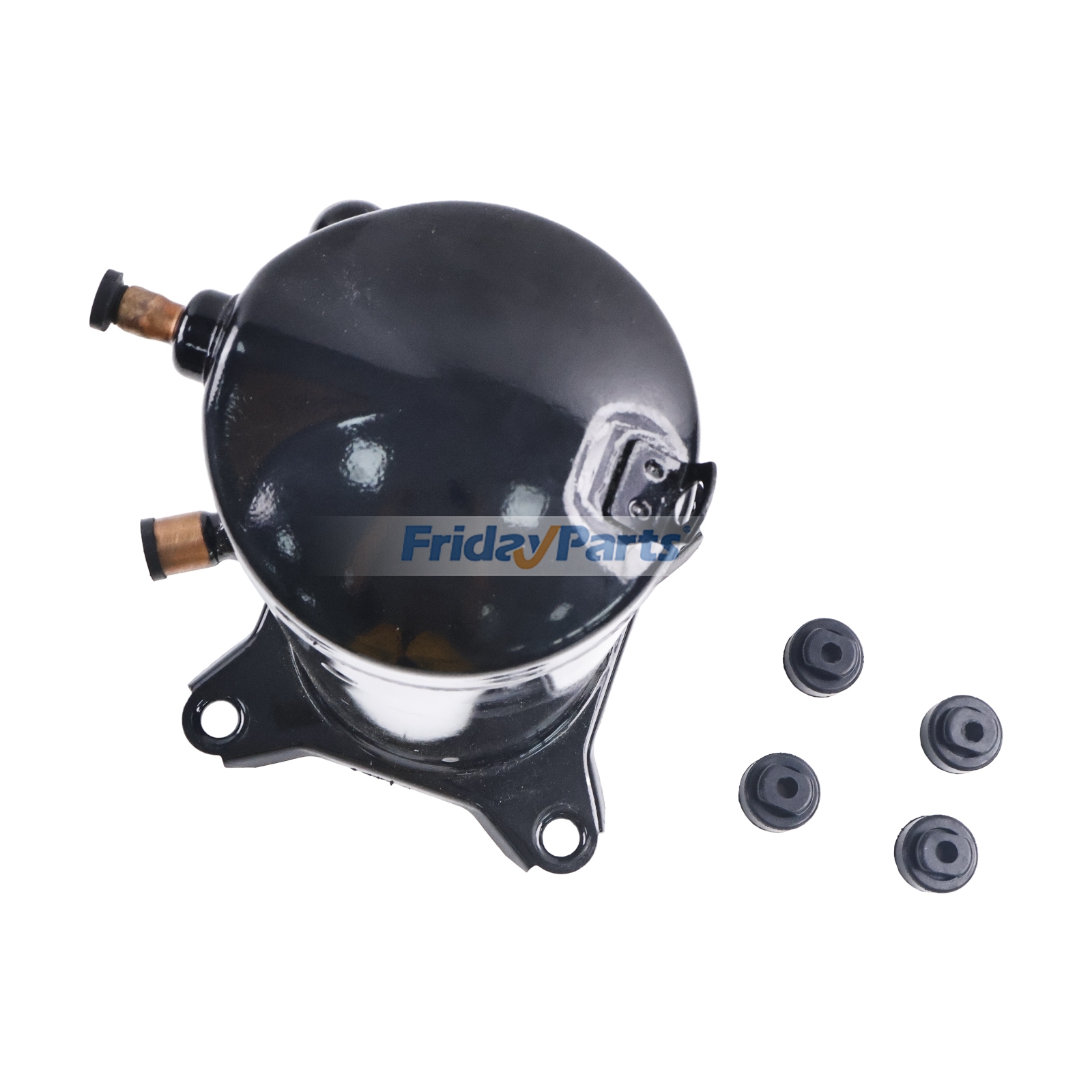

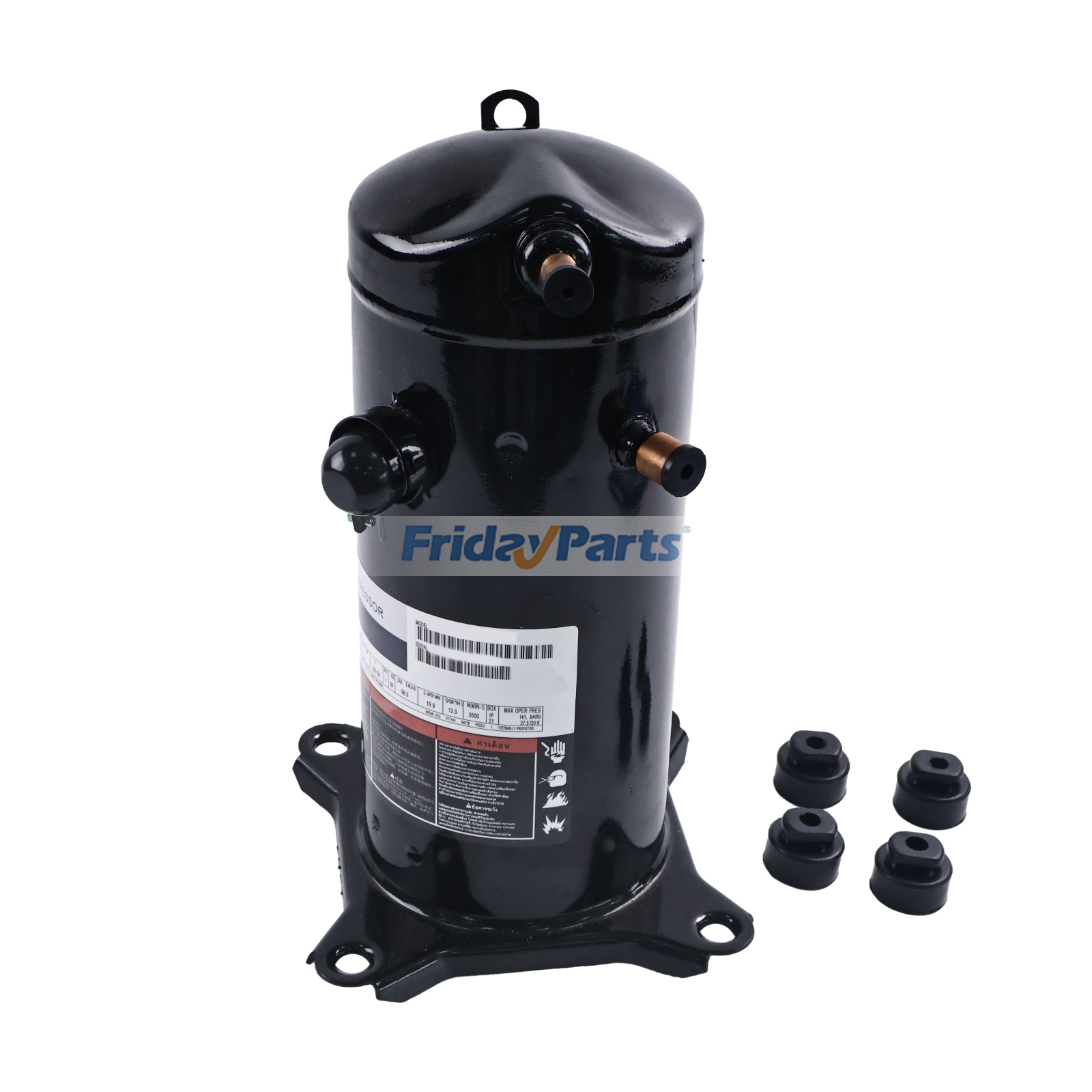

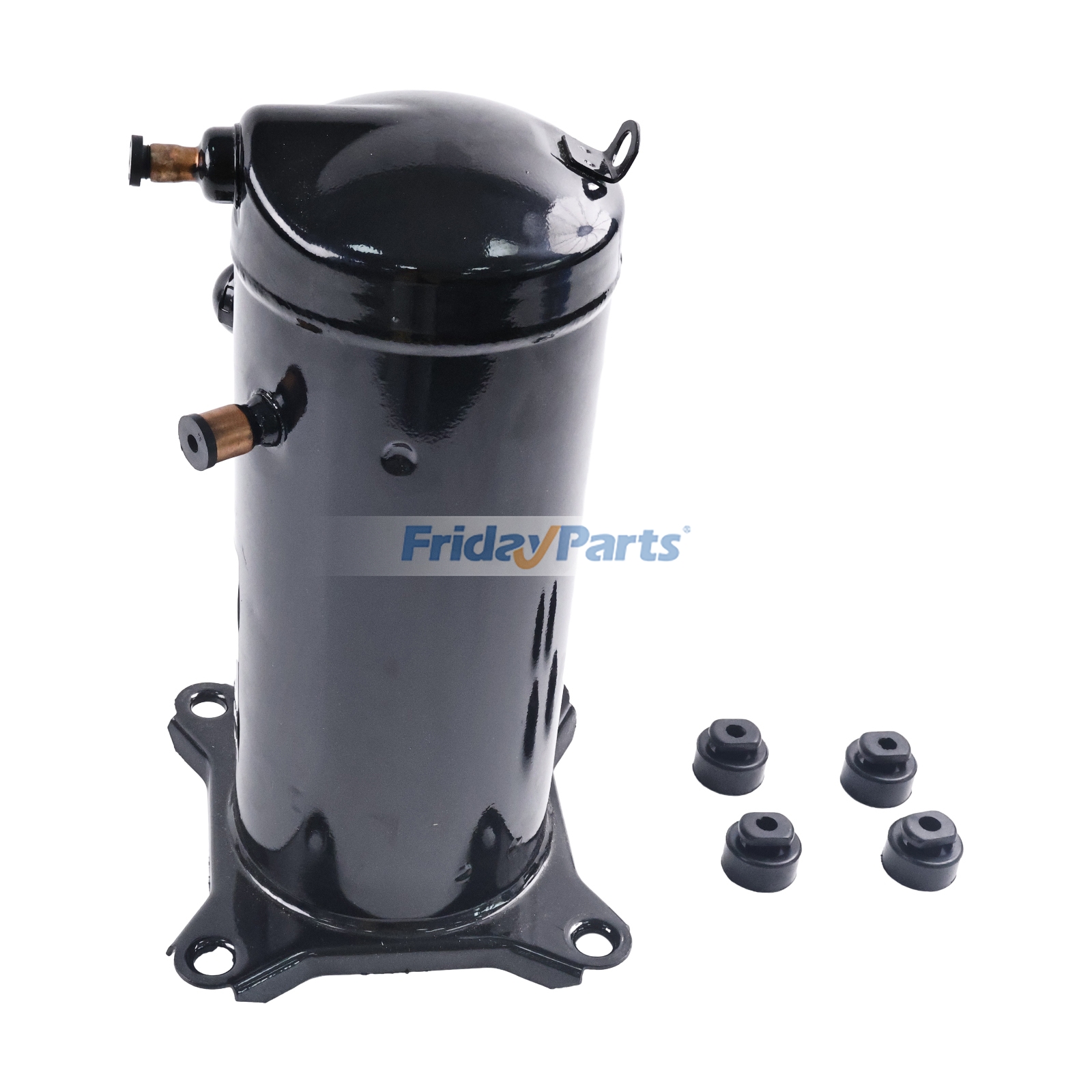

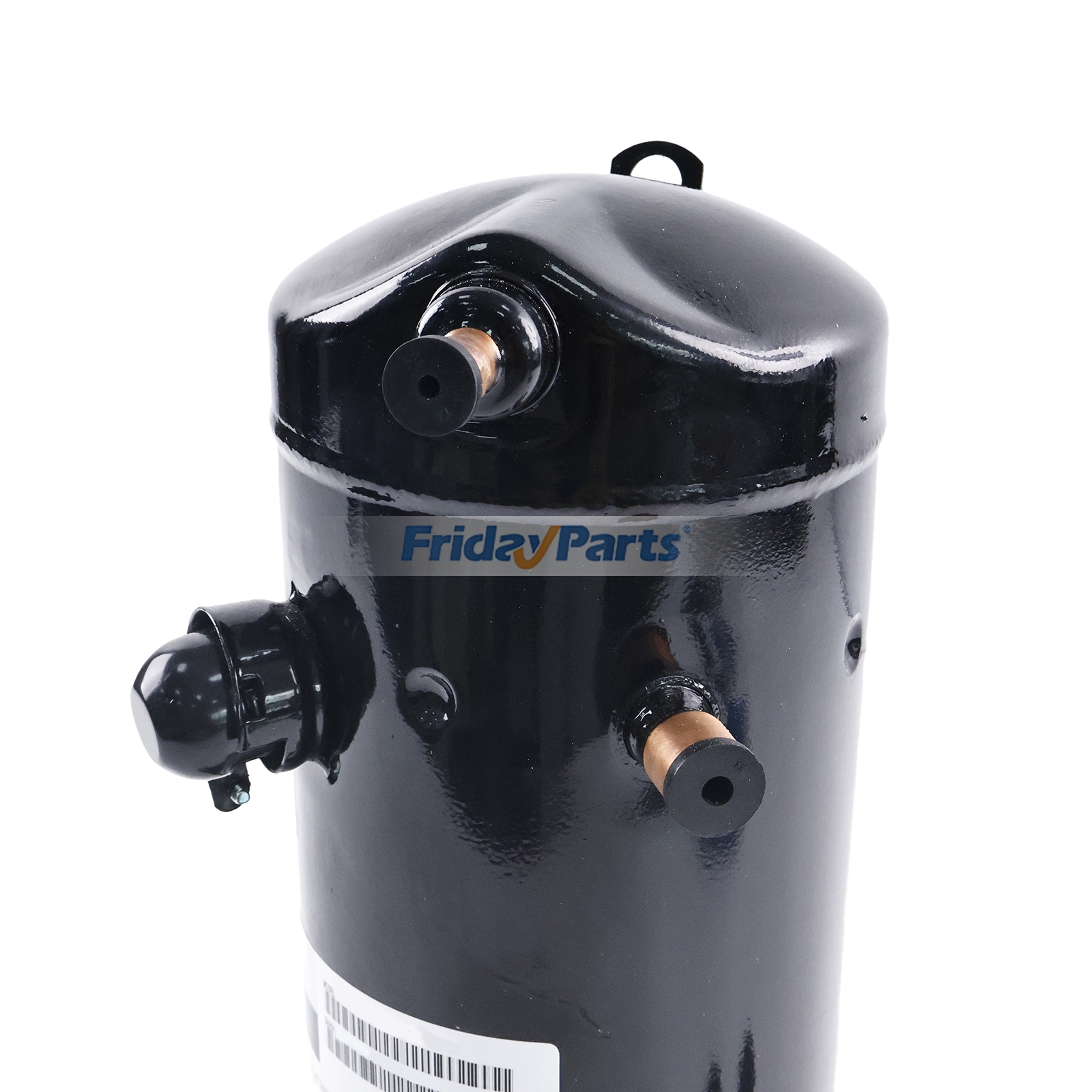

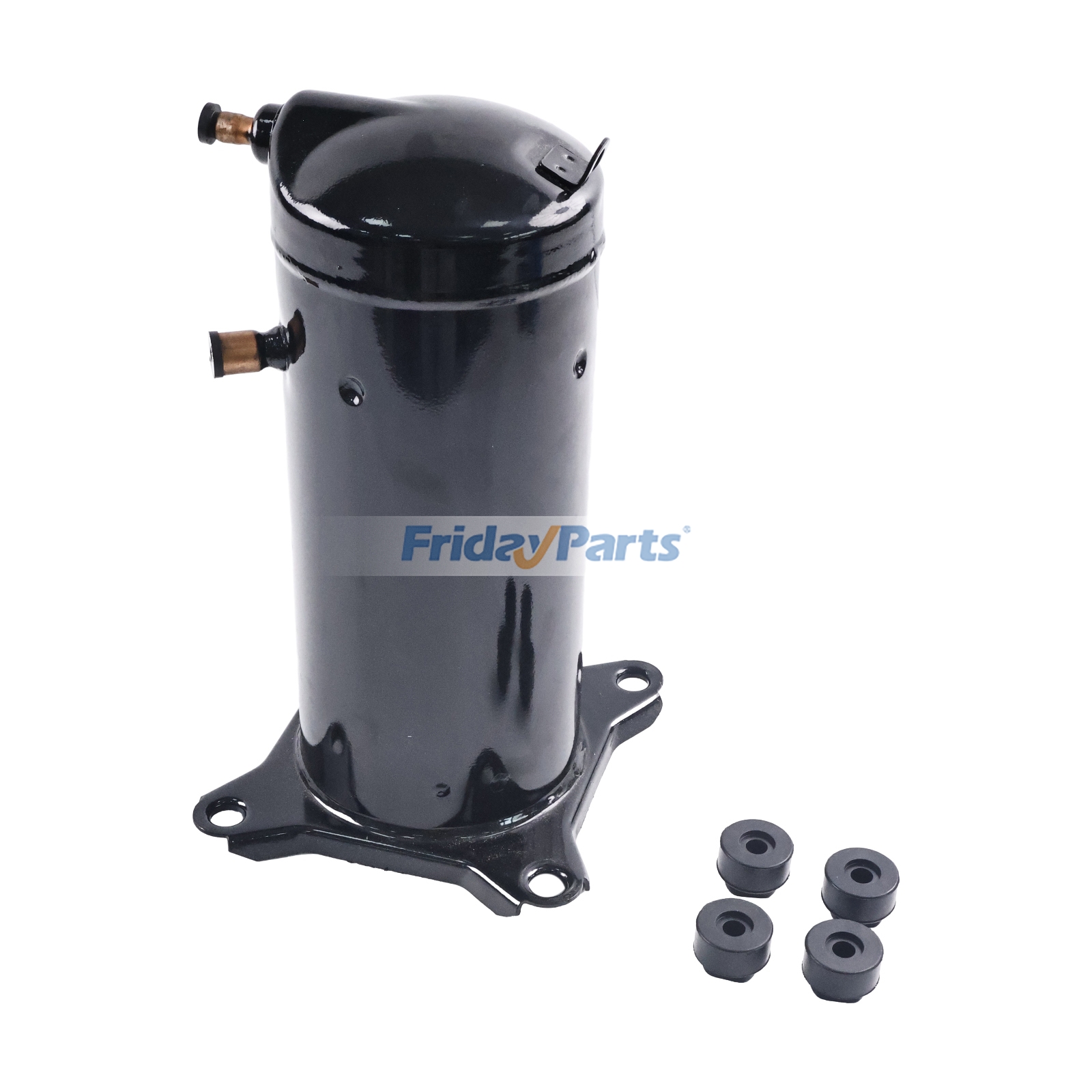

208-230V 1PH 4.5HP R-22 Scroll Compressor Replacement for Copeland ZR54K5E-PFV-800
Replacement Part Number: ZR54K5E-PFV-800, ZR54K5EPFV800
Specification:
Phase: 1PH
Voltage: 208–230V
Frequency: 60Hz
Nominal Cooling Capacity: 53,500 BTU/h (4.5 HP)
Power: 4.5 HP / 4,850 W
Refrigerant: R22, compatible with R407C/R134a
EER: 10.3
Rated Load Current (RLA): 21.8 A
Max Operating Current: 34 A
Locked Rotor Current (LRA): 146 A
Oil Type: POE Polyester Oil
Suction Line: 7/8" ODF
Discharge Line: 1/2" ODF
Applications:
Fit For Commercial HVAC and Air Conditioning Systems
| Brand: | FridayParts |
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | ZR54K5E-PFV-800 |
