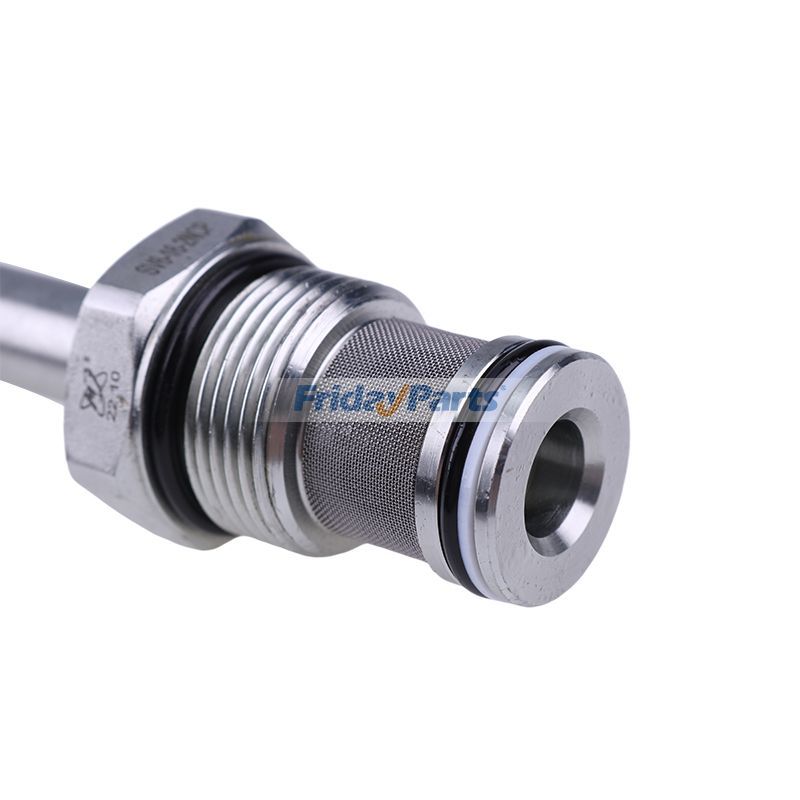

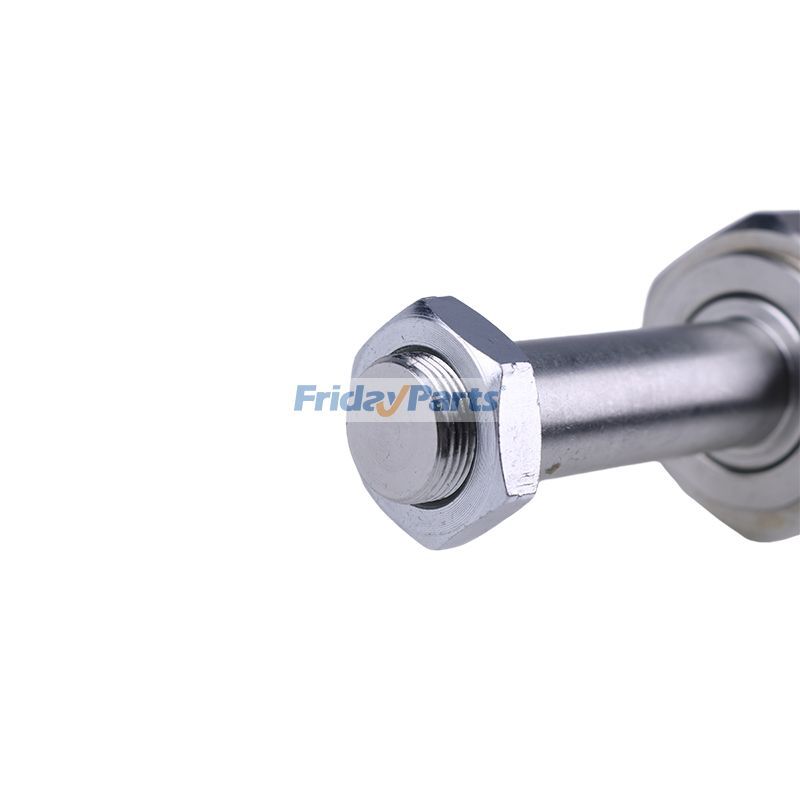

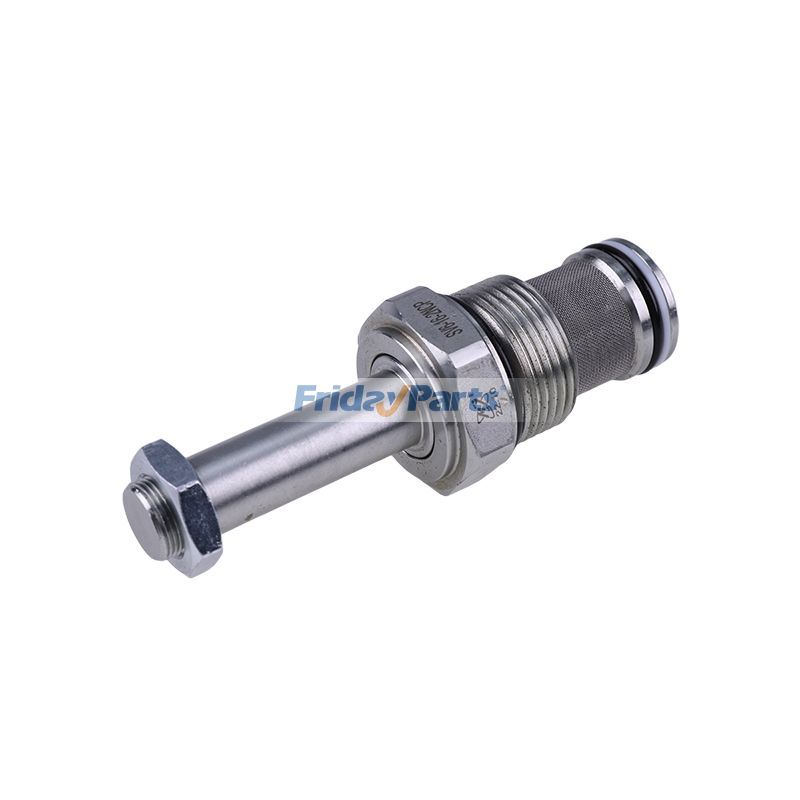

Solenoid Cartridge Valve Replacement for Hydraforce SV16-20 SV16-20-0-N-00
Replacement Part Number: SV16-20, SV16-20-0-N-00, SV16200N00, SV1620
Description:
A solenoid-operated, 2 port, normally closed, poppet-type, screw-in hydraulic cartridge valve, designed to function as a load-holding or blocking valve in applications requiring low internal leakage.
Operation:
When de-energized, the SV16-20X acts as a check valve, allowing flow to pass from port 1 to port 2, while blocking flow in the reverse direction. When energized, the poppet lifts to open the port 2 to port 1 flow path. In this mode, flow from port 1 to port 2 is severely restricted.
Features:
Continuous-duty rated coil. Hardened seat for long life and low leakage. Optional coil voltages and terminations. Efficient wet-armature construction. Cartridges are voltage interchangeable. Unitized, molded coil design. Manual override option. Optional waterproof E-Coils rated up to IP69K. Industry-common cavity.
Application:
Fit for Excavator, Loader
| Brand: | FridayParts |
| Compatible Model Brand: | For Hydraforce |
| Replacement Part Number: | SV16-20, SV16-20-0-N-00, SV16200N00 |
