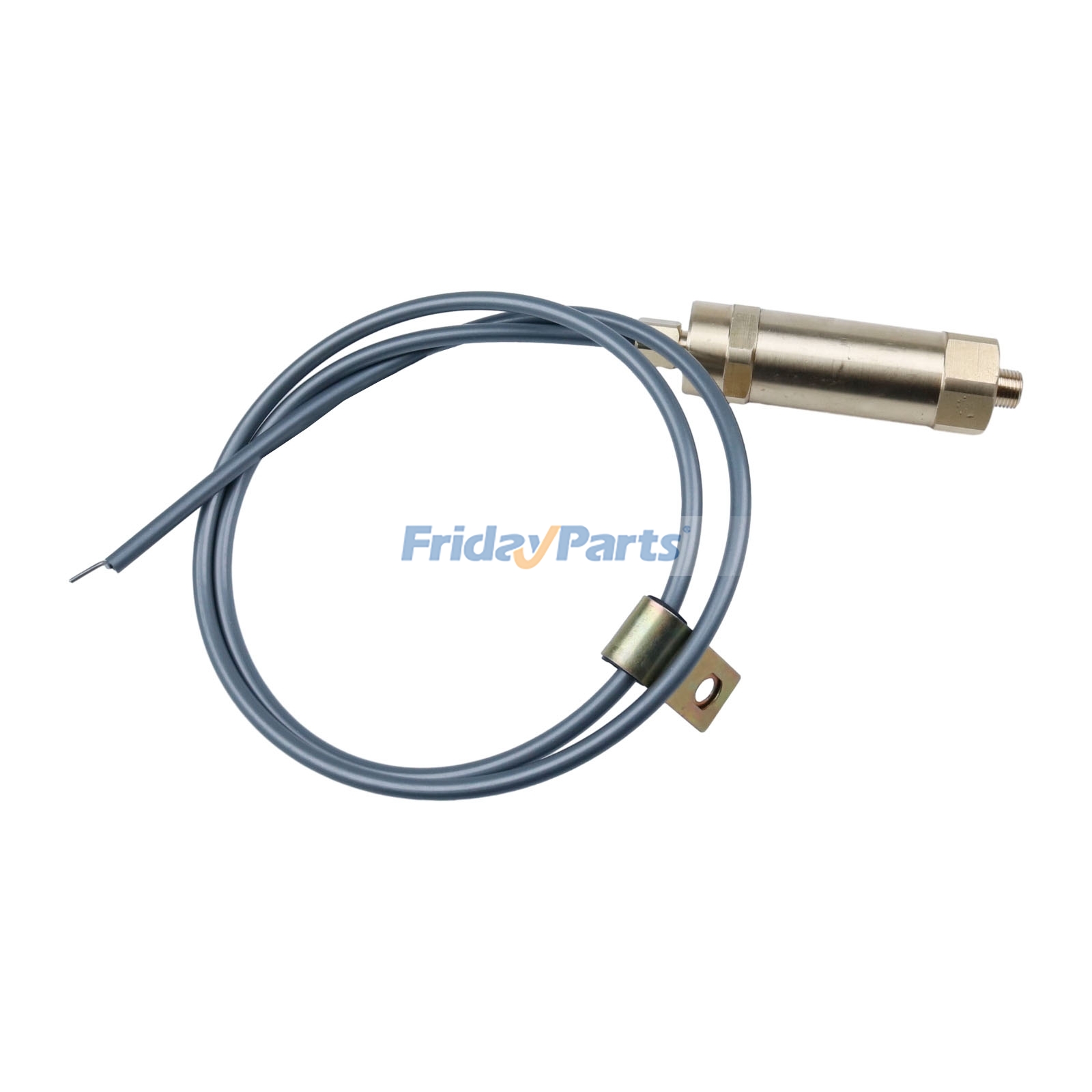

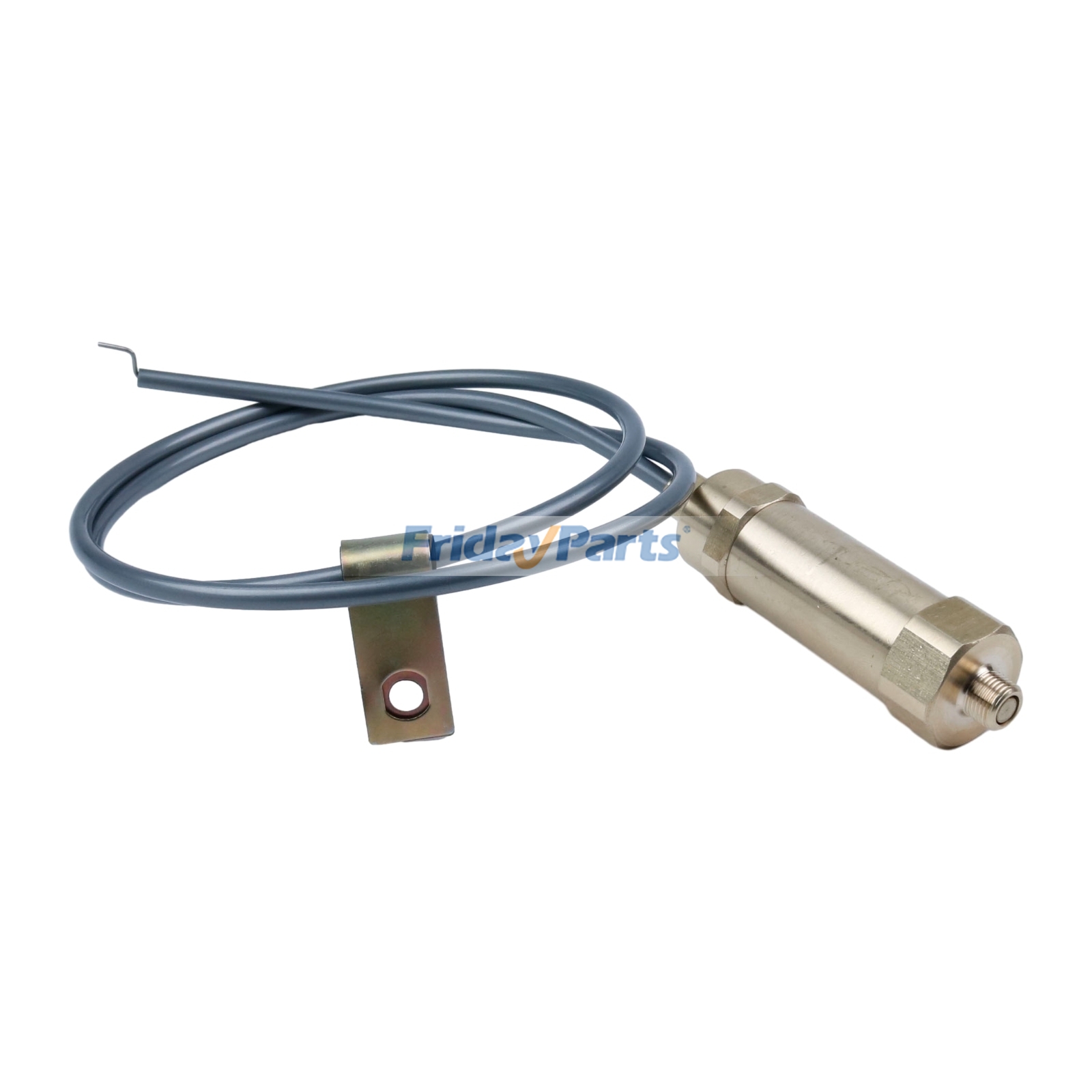

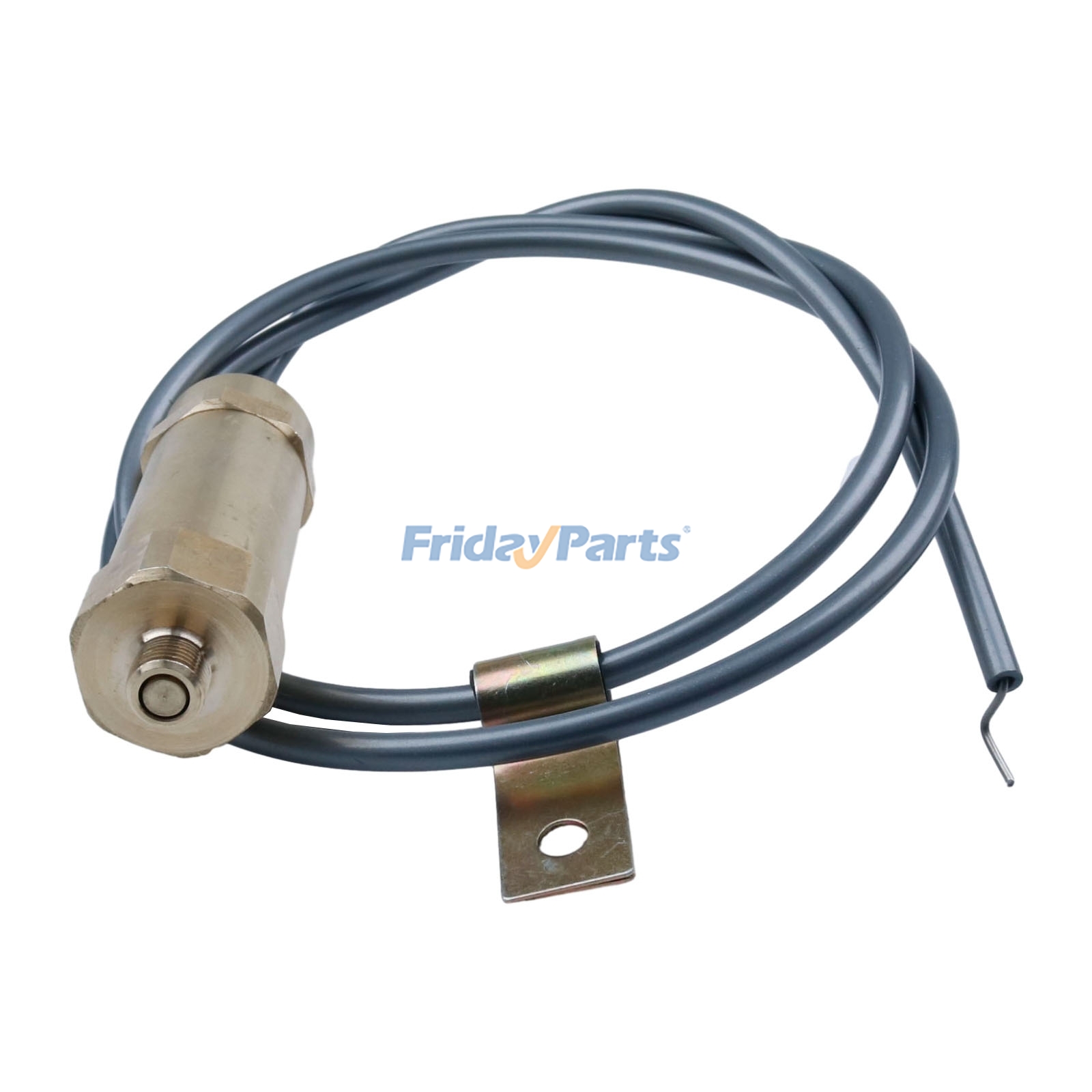

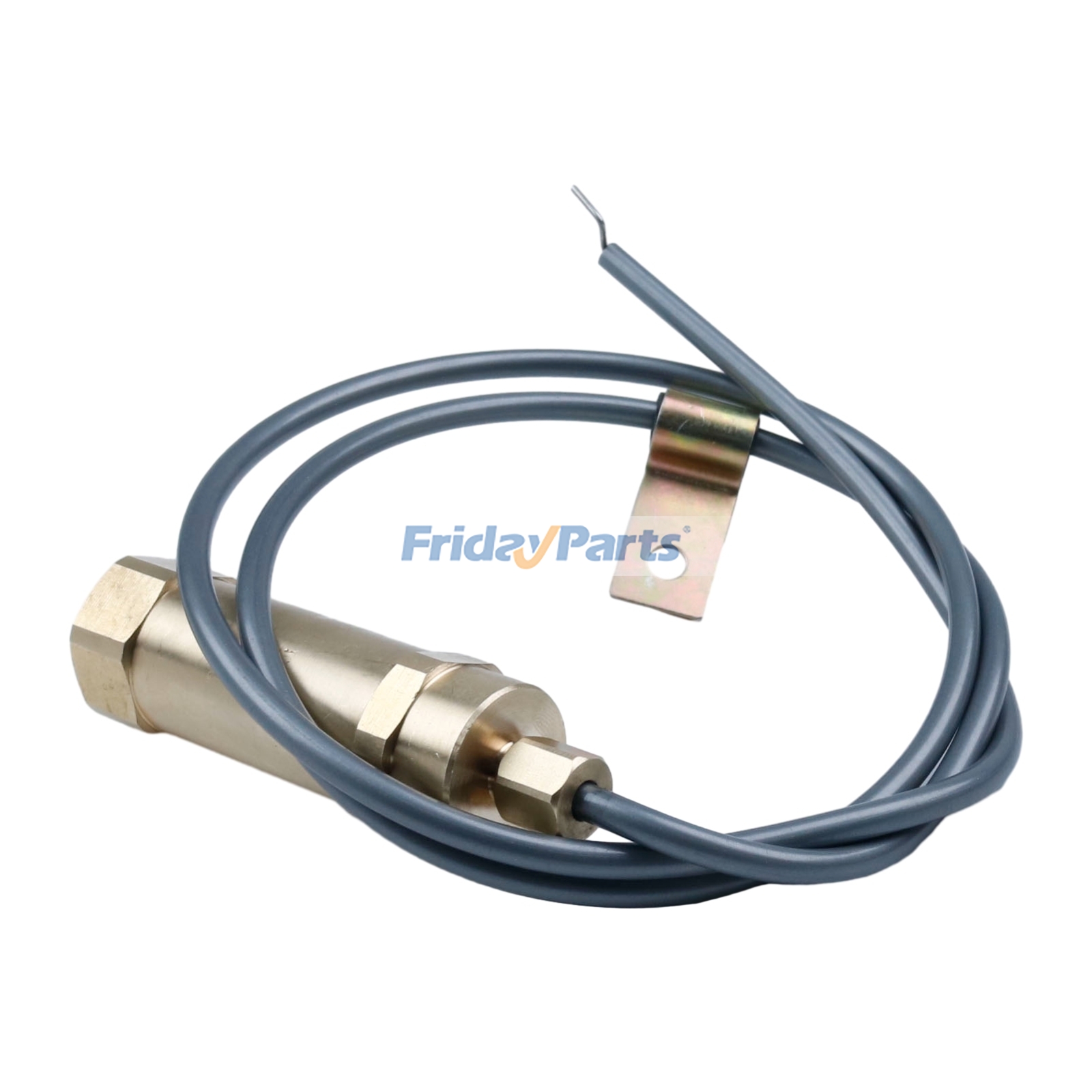

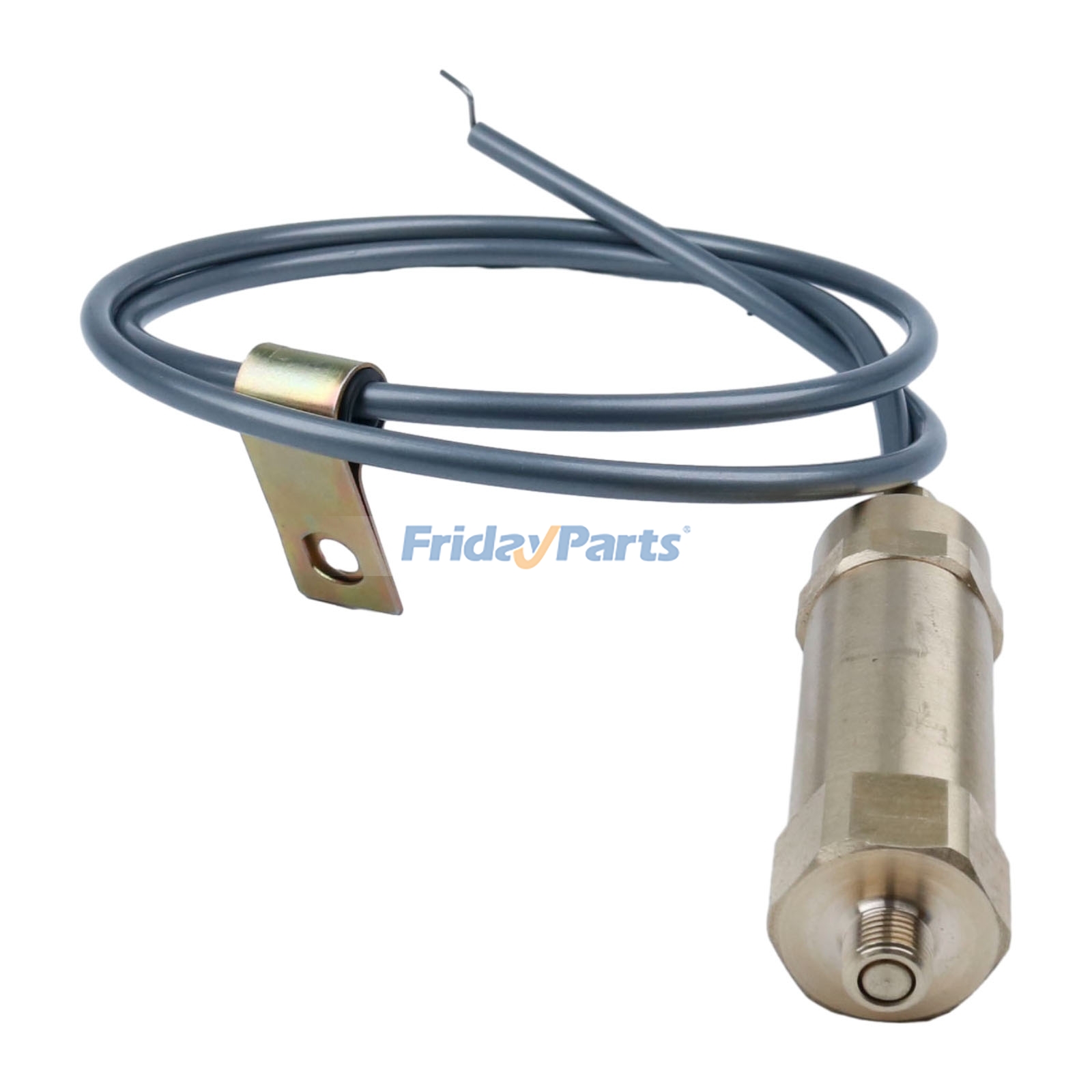

Throttle Control Cable 23426687 for Ingersoll Rand Air Compressor

Throttle Control Cable 23426687 for Ingersoll Rand Air Compressor

Replacement Part Number: 23426687

Connection & Installation:
Inlet Connection: 1/8" Male NPT
Outlet Connection: 1/2" NPT
Number of Ports: 2
Included Components: Clip for mounting
Batteries Required: No

Performance Specifications:
Stroke Length: 1.00 inch
Retracted Spring Force: 16.89 LBF
Minimum Actuation Pressure: 80 PSI
Maximum Operating Pressure: 500 PSI
Operating Temperature Range: -15°F to 400°F

Description:
This throttle control cable is designed for 8 HP to 13 HP gas engine-driven compressors to regulate engine speed for continuous operation. It works in conjunction with a pilot valve and an unloader valve. When the compressor reaches the unload (cut-out) pressure, the pilot valve sends a pneumatic signal to the throttle control, which actuates and extends to reduce engine speed. As compressed air is used and the compressor reaches the load (cut-in) pressure, the signal is released, and the throttle control retracts to restore normal engine operation.

Constructed with a brass body, Viton seals, stainless steel springs, and stainless steel cable, the cable is permanently lubricated and self-cleaning. Routing clamps are included for secure installation and protection. Using a throttle control helps save fuel and extend the life of both the engine and the compressor.

Applications:
Fit For Ingersoll Rand Air Compressor
