Knowing the exact 6.6 duramax oil capacity saves you time and prevents costly engine damage. For almost every generation of this engine, the answer is exactly 10 quarts of diesel engine oil when you also replace the filter. In this guide, we break down the fluid capacity across different model years, the best oil types to use, and how to complete a basic oil change at home.
How Much Oil Does a 6.6 Duramax Hold?
Most GM 6.6L Duramax V8 engines take exactly 10 quarts of oil, and that number already accounts for the oil that goes into your new oil filter. If you just change the oil and reuse the old filter, you’ll only need around 9 to 9.5 quarts to hit the full mark on the dipstick.
Keeping your oil at the right level is super important for heavy‑duty diesels. Small gas engines only use oil for basic lubrication, but turbo diesels depend on oil for way more. It has to carry massive heat away from pistons, valve parts and turbo bearings.
“Too little oil and your engine starves and overheats. Overfill it, and the oil gets foamy, which drops oil pressure.” With those risks in mind, we suggest grabbing at least three gallons (12 quarts) before you start the oil change. That covers the 10 quarts you need for the service, plus two extra quarts to stow in your truck for top‑ups later.
For reference, if you run a mixed fleet, you’ll see competing engines like the 6.7L Cummins need 12 quarts. That’s because it’s a longer inline‑six design. The Duramax V8 setup uses a bit less oil overall.
6.6 Duramax Oil Capacity by Engine Generation
General Motors has updated the 6.6L Duramax block many times since its release to meet strict emissions rules and boost horsepower. Despite these mechanical changes, the 6.6 duramax oil capacity has stayed perfectly steady over the last two decades.
LB7 and LLY Oil Capacity
The LB7 covers the 2001 to early 2004 model years. The LB7 oil capacity is exactly 10 quarts with a new filter. These early trucks are highly desired today because they lack modern, complex exhaust systems. In mid-2004, GM released the LLY to fix earlier injector issues found on the LB7. The LLY (2004.5-2005) keeps the exact same 10-quart oil pan layout.
LBZ and LMM Oil Capacity
Many diesel fans view the 2006 and 2007 LBZ as one of the best pre-emissions truck engines ever made. It offers a great blend of strong power and a solid internal block. The LBZ requires 10 quarts of oil. From late 2007 to 2010, the LMM arrived with a new diesel particulate filter (DPF) system. Even with these new exhaust parts, the LMM oil pan configuration remained unchanged at a 10-quart refill.
LML Oil Capacity
From 2011 to 2016, the LML generation introduced structural changes to handle higher injection pressures and stricter environmental laws. Whether you drive a 2012, 2015, or 2016 model, the LML 6.6 duramax oil capacity is always 10 quarts of heavy-duty diesel oil. The block design changed, but the fluid volume did not.
L5P Oil Capacity
Starting in 2017, the L5P platform brought massive power upgrades to the Silverado and Sierra heavy-duty trucks. Even with new engine oil control techniques and block enhancements, the 2017 through 2024 L5P models still take 10 quarts of oil.
What Type of Oil Does a 6.6 Duramax Take?
Picking the right oil is just as important as knowing how much to add. These turbo diesel engines need oil built to stand up to high heat, heavy loads and soot buildup over thousands of miles. Keep these points in mind when shopping for oil:
- 15W-40 for mild and warm weather: This is the standard go-to viscosity for Duramax. It forms a thick protective layer to stop metal parts from grinding together when you tow big trailers or haul heavy loads in regular temperatures.
- 5W-40 or 5W-30 for cold climates: If you deal with freezing winters, this thinner synthetic oil makes cold starts way easier. That smaller first number means oil flows quicker to key engine parts right when you turn the key in freezing weather, cutting down wear on startup.
- Full synthetic vs conventional oil: Full synthetic oil cuts friction better, helps with fuel mileage and can help your engine last longer than regular conventional oil. It holds up way better under extreme heat and won’t break down as fast as plain mineral oil.
- API diesel rated oil: No matter what brand or viscosity you pick, make sure the label shows a diesel API rating like CK-4. Diesel oil has special heavy-duty additives that trap soot and neutralize acids. Regular gasoline engine oil doesn’t have these additives at all.
How to Change Oil on a 6.6 Duramax?
Changing your own oil saves cash and lets you know the work gets done properly. Here’s our simple step‑by‑step guide you can follow right in your driveway.
Step 1: Get All Tools and Supplies Ready
Before crawling under the truck, have everything handy. You’ll need 10 quarts of good diesel engine oil, a new oil filter, a 13mm or 15mm socket (matches your drain plug), a ratchet, oil filter wrench and a big drain pan. Since your truck takes 10 quarts, grab a pan that holds at least 16 quarts so old oil doesn’t spill over.
Step 2: Warm Up the Engine and Set Up Your Workspace
Fire up the truck and let it run 3 to 5 minutes. Warm oil flows easier and flushes out more dirt and debris. Park on level ground, pull the parking brake tight, and lay big cardboard sheets under the engine to catch stray drips.
Step 3: Drain the Old Oil
Set your drain pan right under the oil pan drain plug. Use your socket to carefully loosen and take out the plug. Let the oil fully drain for around 15 minutes. While waiting, check the old oil. If it looks milky or smells sweet, coolant may be mixing in — that usually means a blown head gasket. If the oil is just plain black, keep going.
Step 4: Swap Out the Oil Filter
Slide your drain pan under the oil filter. Pro Tip: Slide a piece of aluminum foil behind the filter base. It guides messy oil straight down into your pan, keeps your frame clean and stops burnt oil odors later.
Use your filter wrench to take off the old filter. Grab the new filter and dab a little fresh oil on its rubber gasket for a tight seal. Screw the new filter on by hand. Once it touches the base, twist it another 3/4 turn until snug. Don’t crank it down with a wrench.

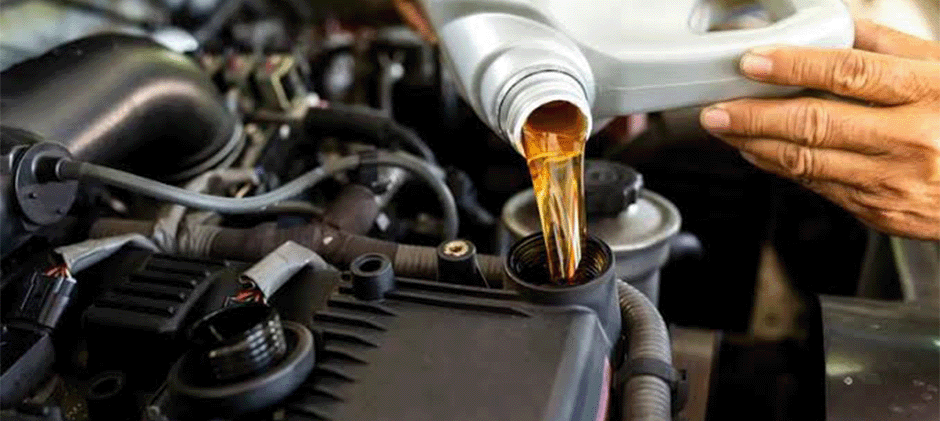

Step 5: Refill Oil and Check the Level
Put the drain plug back in with a new crush washer to stop leaks, and tighten it properly. Head up to the engine bay, take off the oil fill cap, and use a clean funnel to pour in exactly 10 quarts of fresh diesel oil. Put the cap back on, start the truck and let it idle for two minutes while you look underneath for leaks. Shut the engine off, wait five minutes so the oil drains back down into the pan, then pull the dipstick and confirm the oil level is correct.
Step 6: Reset the Oil Life Monitor
Last, get in the driver’s seat. Turn the key to accessory mode, don’t start the engine. Use the steering wheel buttons to pull up the oil life screen on your dash. Hold the checkmark or reset button until it shows 100%.
Frequently Asked Questions
How Many Quarts of Oil Does a 6.6 Duramax Take With a New Filter?
If you’re doing a full oil change with a brand-new filter, this engine takes exactly 10 quarts (2.5 gallons) of oil. This number works for nearly all Duramax trucks you’ll see out on the road.
Does Every 6.6 Duramax Have the Same Oil Capacity?
Yep, factory oil capacity stays at 10 quarts across all generations: LB7, LLY, LBZ, LMM, LML and L5P. But if you add an aftermarket deep oil pan for better cooling, you’ll need more oil. Always double-check the dipstick for the final oil level once you modify parts.
Can You Use 15W-40 Oil in a 6.6 Duramax?
Absolutely. 15W-40 is the most popular and recommended viscosity for these engines under regular weather. It gives great protection for towing, heavy hauling and everyday driving.
How Much Oil Does a 6.6 Duramax Need Without Changing the Filter?
If you just drain the oil pan and reuse the old filter, you’ll need about 9 to 9.2 quarts to fill the crankcase. We strongly suggest swapping the filter every time you change oil, to keep the oil clean and guard your engine parts.
Conclusion
Sticking to the correct oil volume for your 6.6 Duramax is the best way to protect your heavy‑duty truck long‑term. Whether you’ve got an older LB7 or the newer L5P, 10 quarts of good diesel oil keeps everything running smooth, handles extreme heat and cuts down extra internal wear. At FridayParts, you can grab the right filters, fluids and maintenance parts easily to nail every oil change.
