Hey there, fellow lawn warriors! If you’re here, chances are your Ariens Ikon XD 52″ zero-turn mower suddenly stopped cutting, or you heard that dreaded squealing sound of a worn-out belt. Don’t panic! Replacing or rerouting a deck belt might look like a giant, confusing puzzle, but it’s actually a quick DIY job. All you need to do is follow the golden rule: the “V” (narrow) side of the belt must always wrap inside the grooved spindle pulleys, while the “flat” (wider) backside of the belt runs against the flat idler pulleys. If a flat side is sitting in a V-groove, it’s on backward! With this key rule in mind, let’s look at the exact Ariens Ikon XD 52″ deck belt diagram and step-by-step routing path to get your mower back on the grass in no time.
Understanding the Ariens Deck Belt Diagram

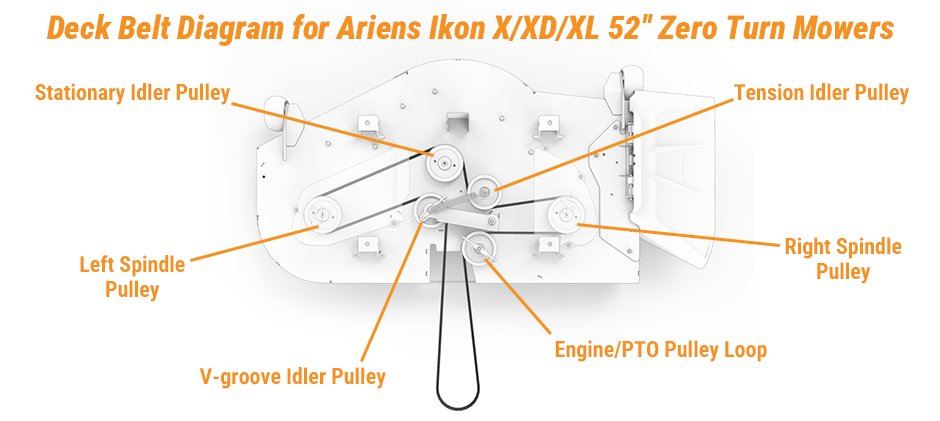

Having an Ariens deck belt diagram can facilitate the changing process of your Ariens deck belt for smooth operation. Before you grab your tools, take a look at how the deck belt actually travels around the pulleys. Here is a deck belt diagram for the Ariens Ikon XD 52” mower:
To make routing easier, let’s identify the key players on your 52-inch deck:
- Left & Right Spindle Pulleys: These spin your actual cutting blades.
- Stationary Idler Pulley: A fixed guide pulley at the top center.
- V-groove Idler Pulley & Tension Idler Pulley: These keep the belt nice and tight. The tension idler is attached to a spring arm that moves.
- Engine/PTO Pulley Loop: This is the long loop extending out the back of the deck that connects directly to the engine clutch to get its power.
How to Change the Ariens Ikon XD Mower Deck Belt with Diagram?
Ready to thread it? Follow this path starting from the left side:
- Wrap the Left Spindle: Loop the belt around the Left Spindle Pulley first.
- Go Around the Top: Run the top side of the belt across to the Stationary Idler Pulley (the one near the top center).
- Weave Through the Tensioners: Wrap the belt around the Tension Idler Pulley (on the right) and the V-groove Idler Pulley (in the center).
- Wrap the Right Spindle: Take the right side of the belt and loop it around the Right Spindle Pulley.
- The Engine Loop: Pull the long remaining loop straight back to hook around the Engine/PTO Pulley under your mower’s seat.
*Pro Tip: The “flat” side of the belt always runs against flat idler pulleys, while the “V” (narrow) side of the belt fits into the V-grooves of the spindle pulleys. If a flat side is sitting in a V-groove, it’s on backward!
This YouTube Video by Tom Doby shows clearly how to replace the deck belt for your Ariens Ikon XD 52-inch zero-turn mowers.
Wrapping up
And that’s it! Once your belt is routed according to the diagram, double-check that it is seated correctly in all the grooves, slowly release the tension arm, and you are ready to mow. Still need a replacement belt or other parts for your Ariens mower? At FridayParts, we provide a vast range of quality mower belts and replacement parts for your Ariens mower. Don’t let a broken part ruin your weekend. Head over to our website to find high-quality, reliable replacement parts and keep your outdoor gear running like new!
