Your Cub Cadet deck belt diagram is related to your mower’s deck size (42″, 46″, 48″, 50″, 54″) and frame type (Riding Mower vs. Zero-Turn). Typically, the belt runs off the engine PTO pulley and goes around the outer spindle pulleys. Find your exact model’s diagram below.
Riding Mower vs Zero-Turn Mower
Before looking at a specific Cub Cadet Deck Belt Diagram, we need to look at the type of machine you own. The belt routing changes depending on the mower’s frame and engine layout.
- A standard lawn tractor or riding mower is the traditional style. It has a steering wheel to turn the front wheels. You sit behind the front engine hood, and the mower deck sits underneath the middle of the frame. Since the engine is up front, the belt runs from that front engine pulley all the way back down to the deck pulleys.
- An RZT (Residential Zero‑Turn) mower works totally differently. These have rear‑mounted engines and lap bars for steering. With the engine in the back, your PTO (Power Take‑Off) clutch sits at the rear. The belt runs forward from the back of the machine out to the mower deck.
Because of this layout difference, a zero-turn belt diagram will never line up with a riding mower’s diagram, even when both mowers have the exact same deck size.
54-inch Cub Cadet Mower Deck Belt Diagram
A 54-inch mower deck uses a three-blade system, which means the belt must navigate around three main spindle pulleys and several idler pulleys to keep proper tension.

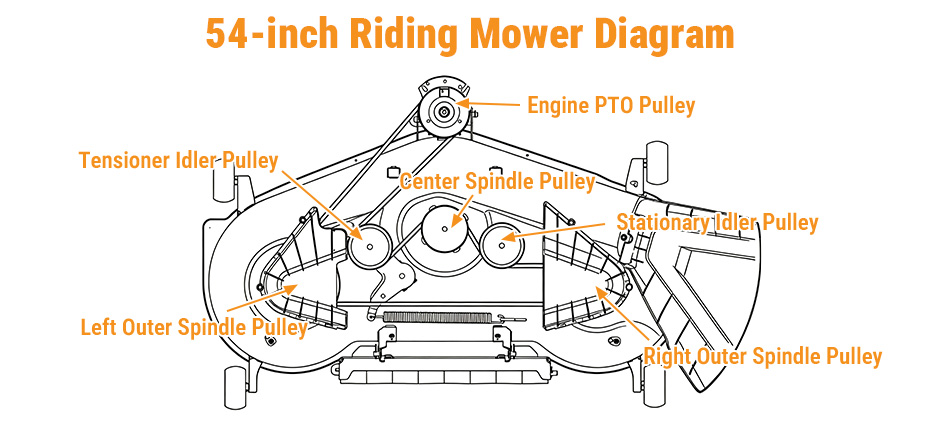

Riding Mower 54-Inch Deck Belt Diagram
For the 54-inch riding mower, start by looping the belt around the front engine PTO pulley. Route the belt straight back toward the deck. The belt will pass the stationary idler pulley on the left side and wrap around the left outer spindle pulley. From there, it goes across to the right outer spindle pulley, loops around the center spindle pulley, and catches the tensioner idler pulley on its way back to the front PTO. Always make sure the flat side of the belt rests against the flat idler pulleys, while the V-side sits inside the grooved spindle pulleys.

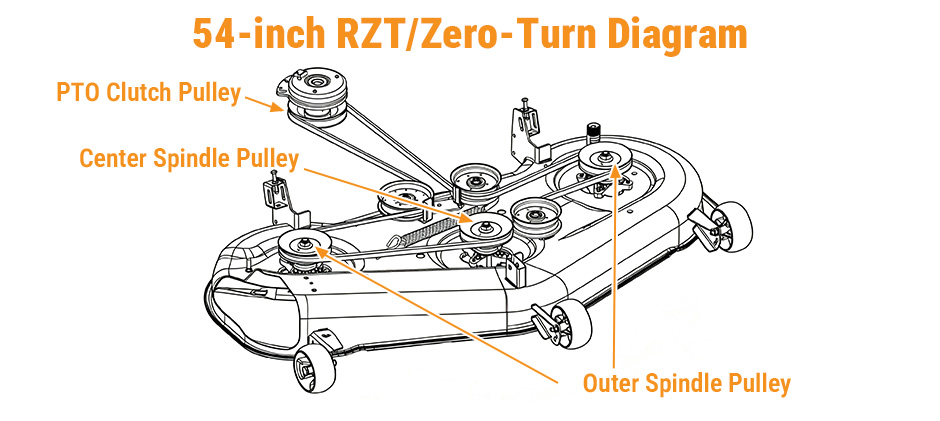

RZT/Zero-Turn 54-Inch Deck Belt Diagram
On the 54-inch RZT model, the routing starts at the rear electric PTO clutch. Pull the belt forward toward the deck. It will first wrap around the right outer spindle pulley. Next, it routes around the front center spindle pulley and over to the left outer spindle pulley. On the return path to the rear engine, the belt must pass through the spring-loaded tensioner idler pulley and a stationary idler pulley to maintain a tight grip.
Cub Cadet 50-inch Deck Belt Diagram
The 50-inch deck is very common and also uses a three-blade setup. The exact routing depends heavily on the specific model year and engine type.
Riding Mower 50-Inch Deck Belt Diagram

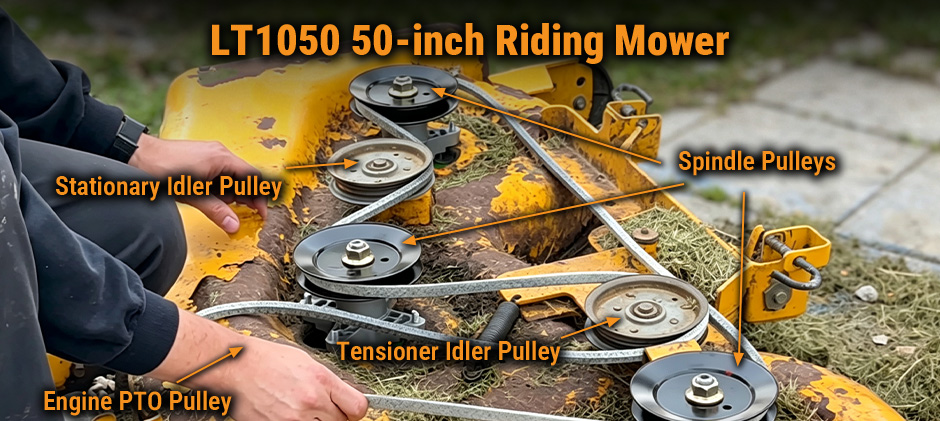

Cub Cadet LT1050 Deck Belt Diagram
The LT1050 is a classic riding mower. The belt routing begins at the front engine pulley. Bring the belt down to the deck, wrapping it around the left spindle pulley. Route it across the back of the deck to the right spindle pulley, then forward to the center spindle pulley. Finally, the belt passes against the tensioner idler pulley and the stationary idler pulley before heading back to the engine.
Cub Cadet LTX 1050 Deck Belt Diagram
The LTX 1050 series is a popular lawn tractor with a 50-inch mid-mount mower deck. However, there are three main engine versions for this series:
- LTX1050 KH (Kohler Engine, 2009–2014)
- LTX1050 KW (Kawasaki Engine, 2011–2014)
- LTX1050 VT (Briggs & Stratton Engine, 2009–2010)
“Always check your specific model number and year under the seat. Do not assume every LTX1050 uses the exact same diagram.”

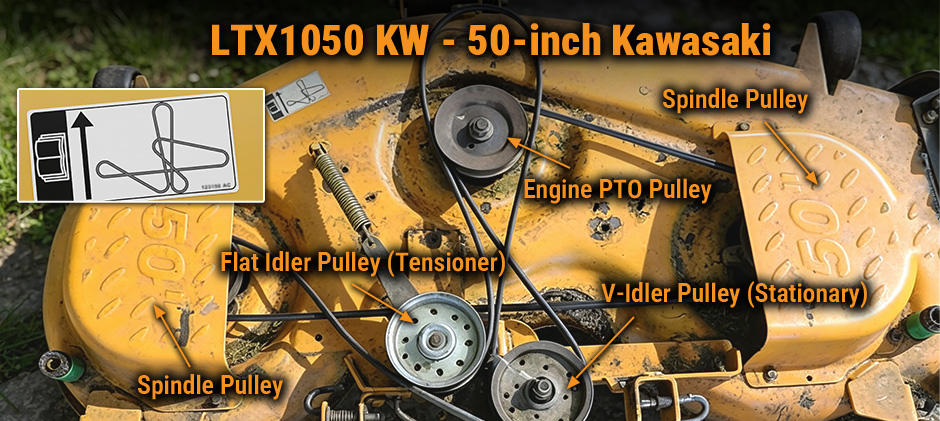

LTX1050 KW
For the Kawasaki engine version, the belt drops from the front PTO clutch. It routes around the left spindle pulley, crosses over to the right spindle pulley, and then wraps around the center spindle pulley. The belt then weaves through a specific arrangement of two idler pulleys (one stationary, one on the tensioner arm) before returning to the front.

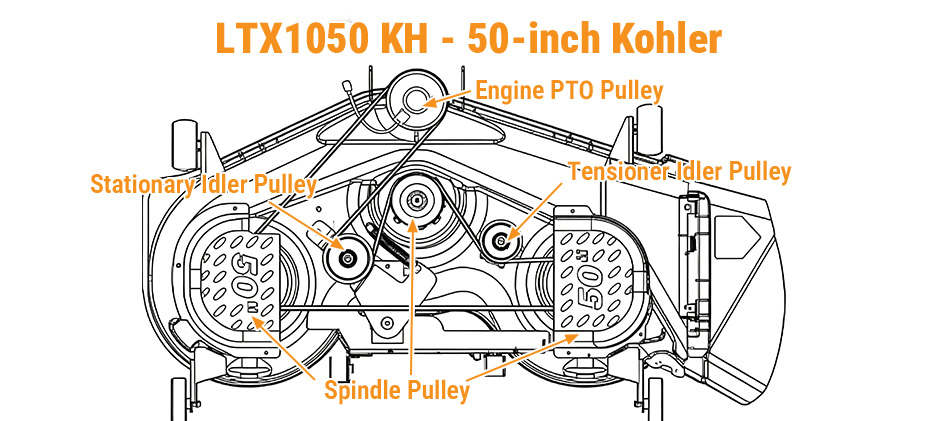

LTX 1050 KH
The Kohler engine version has a very similar path but with slight variations in the idler pulley bracket angles. Route the belt from the engine PTO to the left spindle, across to the right spindle, and around the center spindle. Ensure the back of the belt rides smoothly against the flat idler pulleys to prevent premature wear.

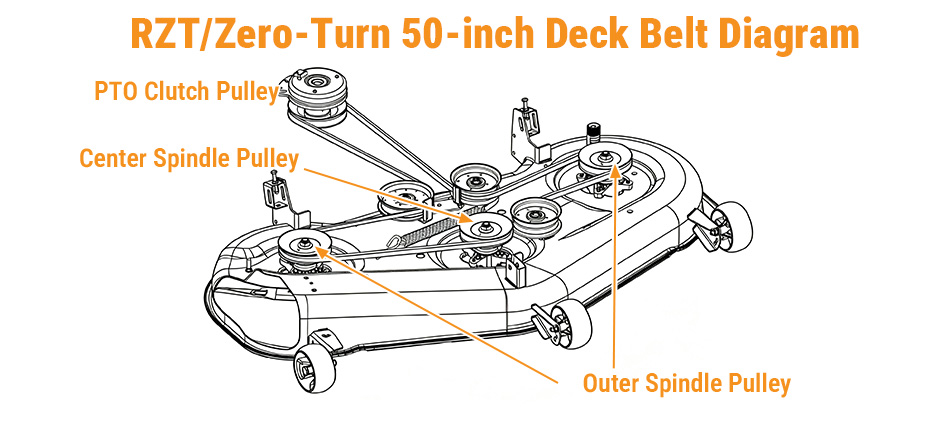

RZT/Zero-Turn 50-Inch Deck Belt Diagram
For the 50-inch RZT, start at the rear PTO clutch. Bring the belt forward to the right spindle pulley. Route it around the center spindle, then over to the left spindle pulley. The belt will then pass through the tensioner idler pulley system on the left side of the deck before returning straight back to the rear clutch.

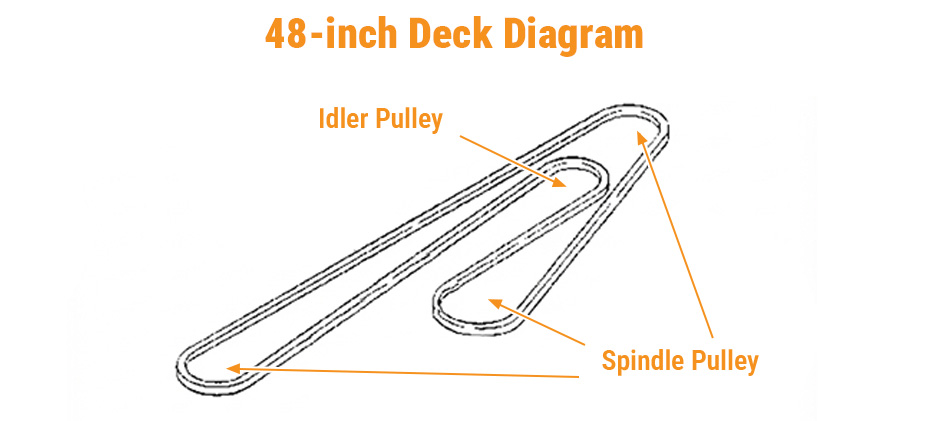

Cub Cadet 48-inch deck belt diagram
The 48-inch deck diagram features a tight three-blade configuration. Starting at the engine pulley, route the belt down to the deck. It wraps around the right spindle pulley first, then crosses over to the left spindle pulley. From the left spindle, it loops around the center spindle pulley. The belt then presses against the spring-loaded tensioner idler pulley to keep the system tight before returning to the main drive pulley.
46-inch Cub Cadet Mower Deck Belt Diagram
The 46-inch deck is unique because it generally uses a two-blade system, making the belt routing slightly simpler than the larger decks.

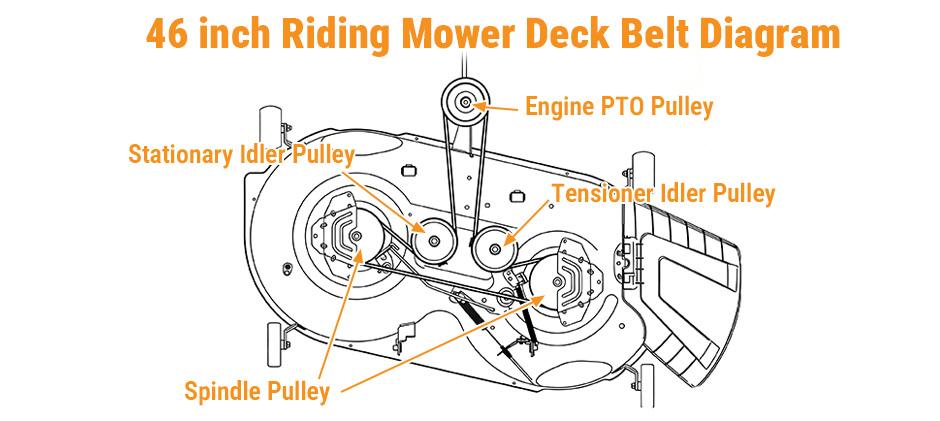

Riding Mower 46-Inch Deck Belt Diagram
Start by placing the belt on the front engine PTO pulley. Route it back to the right spindle pulley. From there, pull the belt straight across the deck to the left spindle pulley. On the return path to the engine, the belt must weave between the stationary idler pulley and the tensioner idler pulley. This creates a “V” shape in the middle of the deck.

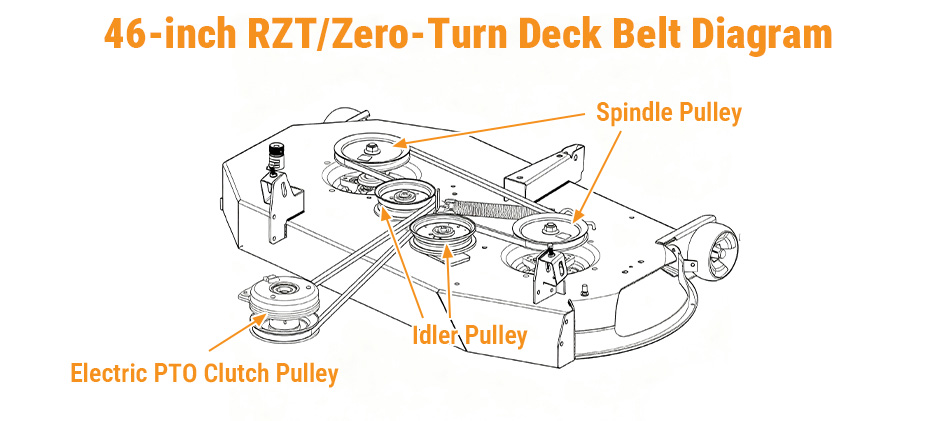

RZT 46-inch Deck Belt Diagram
For the 46-inch zero-turn, begin at the rear engine clutch. Pull the belt forward and wrap it around the left spindle pulley. Route it across to the right spindle pulley. As the belt heads back to the rear engine, it must pass through the tensioner idler pulley located near the center of the deck to maintain proper operating tension.
42-Inch Cub Cadet Mower Deck Belt Diagram
The 42-inch deck is a standard two-blade setup, very common for small to medium yards.

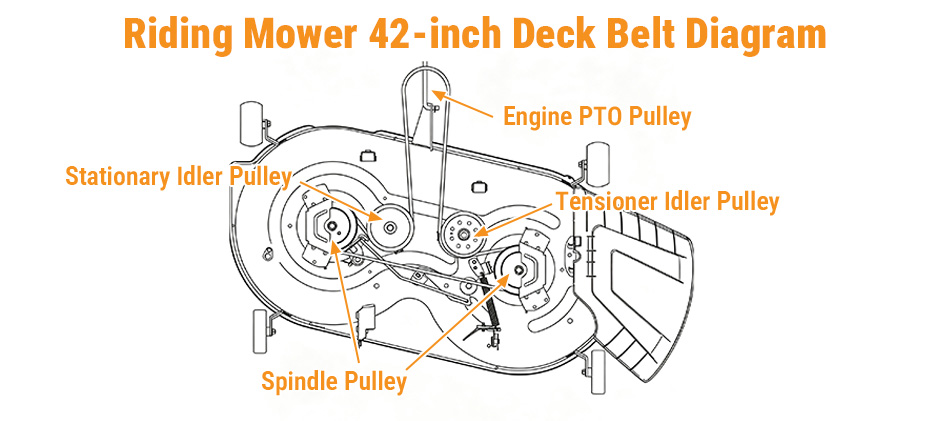

Riding Mower 42-inch Deck Belt Diagram
Route the belt from the front engine PTO pulley down to the right spindle pulley. Pull it across the deck to the left spindle pulley. The belt then routes back toward the front engine, passing over the tensioner idler pulley and the stationary idler pulley. Make sure the belt sits firmly in the grooves of both spindle pulleys.

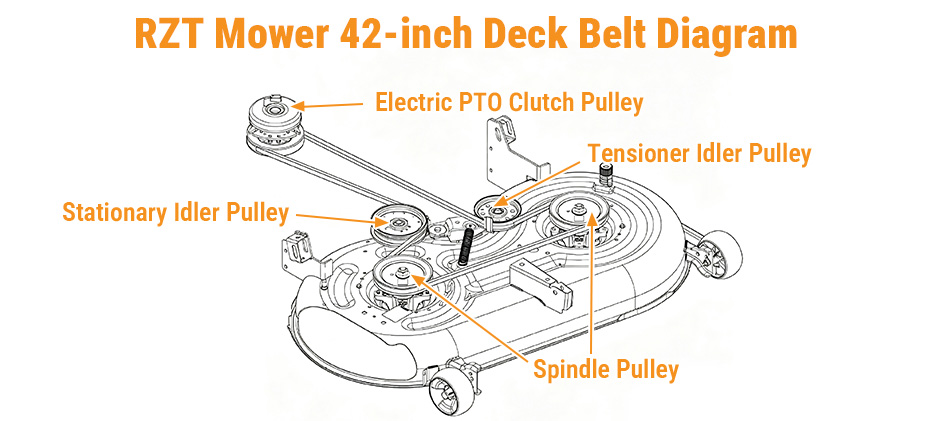

RZT Mower 42-inch Deck Belt Diagram
For the 42-inch zero-turn model, start at the rear PTO. Bring the belt forward to the left spindle pulley, then across to the right spindle pulley. Route the belt back toward the rear engine, making sure it presses firmly against the tensioner idler pulley arm.
Conclusion
Finding the correct Cub Cadet Deck Belt Diagram saves you time and prevents damage to your equipment. Always verify your specific model and deck size before routing a new belt. If you need replacement parts to keep your machine running smoothly, FridayParts offers quality mower deck belts at affordable prices with a vast inventory.
