SPN 111 FMI 18 on Cummins engines means a low engine coolant level condition, caused by actual low coolant or a faulty level sensor, and may trigger a warning or derate. This guide explains common reasons and how to fix them. Keep reading.

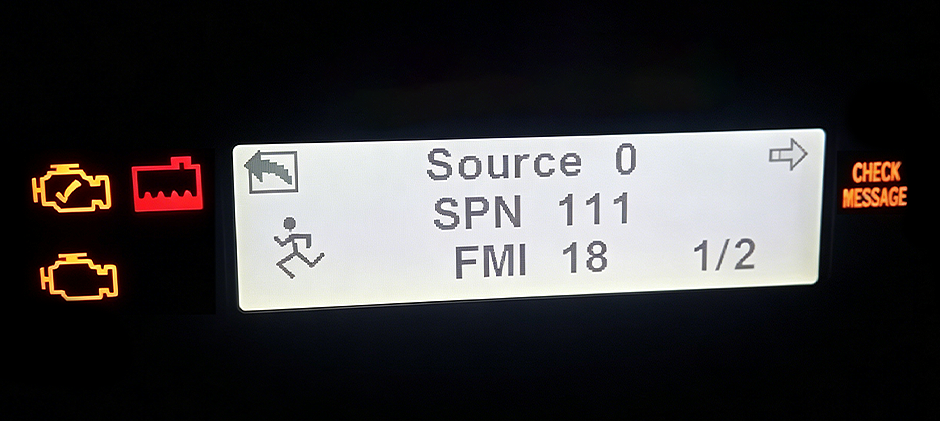

What Does Cummins SPN 111 FMI 18 Mean?
- SPN 111: Indicates the engine coolant level.
- FMI 18: It means “Data Valid but Below Normal Operating Range – Moderately Severe Level.”
SPN 111 FMI 18 means the ECM has detected that the engine coolant level is below the normal operating range. It’s important to note that this is not a sensor error code; it’s the sensor reporting a real low coolant condition.
Common Symptoms of Code SPN 111 FMI 18 You May Notice
You don’t even need a code scanner to tell something’s off with your engine. When this fault pops up, the ECM cuts in to protect the motor, and you’ll notice these obvious symptoms:
- Amber Check Engine Light: The dash’s Amber warning light will turn on, usually around 20 seconds after the system spots low coolant.
- Engine Derate (Loss of Power): To stop overheating and serious engine damage, the ECM will dial back torque. You’ll lose noticeable power, so hauling heavy loads or going uphill becomes tough.
- EGR System Shut Off: The ECM normally disables the EGR valve as extra protection, to take stress off the cooling system and lower overall heat buildup.
- Full Engine Shutdown Risk: On certain equipment, generators especially, the safety settings may kill the engine entirely if the low coolant issue doesn’t clear up.
Main Causes of SPN 111 FMI 18 Cummins Engine Error
This fault code confirms low coolant, so we’ll only check two main things: where the coolant went, or why the system falsely reads low fluid.
- Coolant is actually low: Coolant never disappears on its own—it leaks out. You might spot big puddles under the machine, or tiny slow seeps from hoses, radiator, water pump, or head gasket that’re easy to miss.
- Faulty reservoir cap: This cap isn’t just a cover—it keeps the cooling system pressurized to stop coolant boiling easily. If the cap can’t hold pressure, coolant turns to steam and leaks out little by little, dropping your fluid level over time.
- Improper Coolant Mixture: Using the incorrect coolant or over-diluted fluid creates problems. It can make the coolant boil too early or throw off the sensor’s level readings.
- Bad coolant level sensor: Even though FMI 18 means the signal reads valid, the sensors still break. It could get stuck showing low fluid, or have an internal short that keeps sending a low coolant alert to the ECM, even when the tank’s full.
- Damaged sensor wiring: The wire link between the sensor and ECM matters a lot. Corroded connector pins, wires rubbed raw against the frame, or loose plugs mess up the signal. The ECM mistakes this bad signal for low coolant.
How to Fix the SPN 111 FMI 18?
Follow this step-by-step process to track down and clear this fault code safely.
1. Cool the Engine First for Safety
Don’t touch a hot cooling system—it’s pressurized. Opening the cap will spray boiling coolant and burn you badly. Shut the engine off and wait 30 to 60 minutes for everything to fully cool down.
2. Do a Full Visual Check
Once cool, pop the hood and start with simple checks:
- Check coolant level: Find the plastic overflow tank marked MIN/MAX or COLD/HOT. Fluid should sit between the two lines. If it’s below MIN or the tank is empty, that’s your main issue right there.
- Search for leaks: Grab a flashlight and go over every cooling system part. Watch for puddles on the ground, damp hoses, or crusty colored coolant buildup around the radiator, water pump, thermostat and hose joints.
3. Top Up Coolant If It’s Low
Add the exact coolant type listed in your service manual. Don’t just use plain water unless it’s a total emergency—coolant has additives to stop rust and freezing. Fill up to between MIN and MAX, and don’t overfill the tank.
4. Check the Level Sensor And Its Wiring
If coolant is full, the problem is almost always the sensor or its wires:
- Find the sensor: The level sensor is normally mounted on the side of the overflow tank or straight on the radiator.
- Inspect the plug: Unplug the electrical connector. Look for green/white corrosion on the metal pins and frayed, broken wires. Clean dirty connectors with electrical contact spray. Bad connections often send wrong low-coolant signals to the ECM.
A broken sensor can throw other related fault codes, too. SPN 111 FMI 13 specifically means the sensor is out of calibration. But with FMI 18 and full coolant, focus on the sensor and wiring first.
5. Reset the System and Test
After refilling coolant, repairing leaks or cleaning connectors, put everything back together. Start the engine. Most of the time the code clears automatically once the ECM reads a normal coolant level during operation.
If the warning light stays on, use a scan tool to erase the code manually. Run the machine or drive it for a while to make sure the fault doesn’t come back.
Conclusion
SPN 111 FMI 18 means the coolant level is too low. If you don’t fix it in time, the engine may lose power or overheat. Follow the diagnostic steps to find the cause. If you need replacement cooling system parts, FridayParts has reliable aftermarket parts ready to help get your engine back to work.
