The freon leak is a common problem in off-road machinery AC, so many people will ignore it. However, though it doesn’t cause serious machine mechanical downtime, it’ll lead to AC system failure, environmental impact, and more.
For your operation to be comfortable and efficient, the timely fixing of the freon leak problem is important. This guide will tell you what causes the freon leak, how to check and fix the freon leak, helping you save money and prevent more serious damage.
What Causes Freon Leaks?
Off-road equipment operates in a world of constant vibration, impacts, and debris. Unlike passenger cars, the AC systems on these machines are subjected to extreme stress, leading to common failure points:
- Hose Abrasion and Vibration: This is the number one cause. Manufacturers often route Hydraulic and AC hoses close to the machine’s frame or engine components. Because of this, constant, heavy vibration causes them to rub against a surface, eventually wearing a hole through the hose.
- Impact Damage: The condenser, which looks like a small radiator, is usually mounted at the front of the machine. To identify a faulty condenser, you can read: 7 signs of a faulty condenser. The condenser’s exposed position means that rocks, branches, and other debris can easily strike and puncture it.
- Seal Failure: Additionally, over thousands of hours of operation, the rubber O-rings at connection points and the main shaft seal on the AC compressor can dry out, crack, and fail, creating slow leaks.
How to Check If Your Machine’s Freon Is Leaking?
Here’s how to quickly find a freon leak on your machine:
- Visual Check: Look for oily, dirty spots on AC hoses and components. Refrigerant oil leaks out with the freon and attracts grime, pinpointing the source.
- Soap Bubble Test: Spray soapy water on a suspected area. Bubbles will form exactly where the leak is.
- UV Dye & Black Light: This is the most reliable method. Shine a UV light on the AC components; leaking dye will glow brightly. Many machines already have dye in the system.
- Call a Technician: If you can’t find the leak with these methods, a professional can use an electronic “sniffer” to detect it quickly.
How to Fix Freon Leak: Repair or Replacement?
Once you’ve found the leak, you have to decide how to fix it. In the high-pressure, high-vibration world of off-road machinery, the choice between a temporary repair and a permanent replacement is critical for ensuring uptime and long-term reliability. For professional equipment, replacement is the standard for nearly every type of leak.
When Do You Need a Repair?
A true “repair” is the best-case scenario but is extremely rare. It applies only when the structural integrity of a component is not compromised. This approach is reserved for minor issues at connection points, not failures of the components themselves.
- The leak is located exactly at a threaded fitting where a hose connects to the compressor, condenser, or another component.
- The oily residue or bubbles (from a soap test) are coming from the base of the connection nut, not from the hose or metal line itself.
- There is no visible damage—no cracks, punctures, or abrasion marks—on any part of the leaking component. The parts themselves are in good condition, but the seal between them has failed.
In this single scenario, the fix is to disconnect the fitting, replace the small rubber O-ring inside, lubricate it with the correct oil, and re-torque the connection to factory specifications.
When Do You Need a Replacement?
This is the professional standard for over 99% of leaks found on heavy machinery. Due to constant vibration and harsh operating conditions, patching or mending a failed part is unreliable and will lead to repeat failures. If a component is leaking, you replace it.
- Hoses: You see cracks, bulges, or wet, oily residue along the length of a rubber hose. You find areas where the hose has been rubbing against another part, causing abrasion.
- Condenser or Evaporator: You see physical damage, like punctures from rocks or debris. The leak is coming from the fins or the core of the unit, often due to corrosion or impact.
- Compressor: There is oily residue on the compressor body, especially around the front shaft seal (behind the clutch pulley) or the seams where the compressor case is bolted together. This indicates an internal seal has failed.
- Metal Lines: You find a crack in a metal tube, often near a weld or a mounting bracket where vibration is concentrated.
- Any Leak Not at a Fitting: If the source of the leak is anywhere other than a simple threaded connection point, the component itself has failed and must be replaced to guarantee a lasting solution.

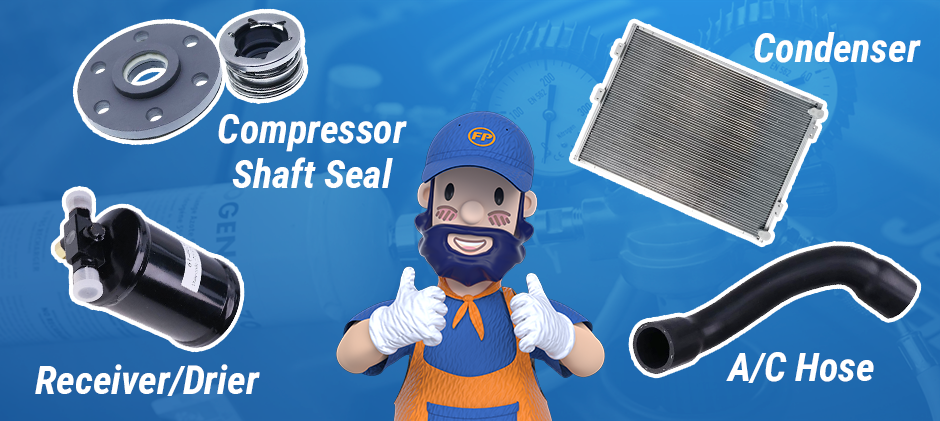

Related Component You May Need to Replace
Leaks on heavy machinery are predictable. Here are the most common parts that fail and require replacement:
A/C Hoses: The #1 source of leaks.
- Cause: Intense vibration causes them to rub against the frame, leading to wear and cracks. The metal fittings are also a common failure point.
- Solution: Replace the entire damaged hose assembly.
Condenser: The large radiator at the front of the machine.
- Cause: Its exposed position makes it highly vulnerable to punctures from rocks and debris.
- Solution: A punctured condenser must be replaced with a new one.
Compressor Shaft Seal: The seal behind the compressor’s pulley.
- Cause: This rotating seal wears out over time. An oily residue on the compressor body is the tell-tale sign.
- Solution: For guaranteed results, replace the entire compressor assembly. While replacing only the seal is technically possible, it is not recommended. The process requires special tools and significant labor, often costing nearly as much as a new unit, with a much higher risk of premature failure if the compressor has any internal wear.
Receiver/Drier: The system’s filter and moisture absorber.
- The Golden Rule: This part must be replaced anytime the system is opened for repair. It is instantly contaminated by air exposure. Skipping this step will lead to moisture damage and premature failure of your new parts.

How Much Does It Cost to Fix a Freon Leak?
Costs can vary widely based on the machine type, local labor rates, and the specific part that failed. Here are some general estimates for an off-road machine.
Freon Leak Repair Cost: $150 – $400
This price reflects the best-case scenario of only needing to replace an O-ring at a fitting. The cost is almost entirely labor for diagnosing the leak, evacuating the system, performing the simple fix, and then properly vacuuming and recharging the system with new freon and oil.
Freon Leak Replacement Cost: $500 – $2,500+
This is the more common price range, as most leaks require replacing a failed component. The total cost includes the new part, the mandatory new receiver/dryer, and the labor to install everything and recharge the system. The price varies significantly depending on the part:
- A/C Hose Replacement: $500 – $800: This is the most common and least expensive replacement. The cost covers a new hose assembly, a new receiver/drier, and the labor to fit the parts and recharge the system.
- Condenser Replacement: $800 – $1,500: This is a mid-range repair, common for machines working in rough terrain. The cost is higher due to the price of the condenser itself, plus the mandatory receiver/drier and labor.
- Compressor Replacement: $1,500 – $2,500+: This is the most expensive scenario. The cost is driven by the high price of the compressor assembly. This job always includes a new compressor, a new receiver/drier, and if the old compressor fails internally, a full system flush is mandatory to remove metal debris that would otherwise destroy the new components, adding to the labor time.
Wrapping Up
Don’t look down the freon leak, thinking it’s not a big deal. Working in extremely hot temperatures is unbearable, ineffective, and even dangerous. Follow this guide, repair & replace the wrong part immediately when you find freon leaking to create a nice environment for yourself.
