Is your John Deere zero-turn mower stubbornly refusing to start after sitting for just a few hours? Before you call an expensive mechanic, the culprit is likely a simple, misadjusted cable. Adjusting the choke and throttle is as simple as loosening a screw, positioning your lever, and pulling the cable tight. That’s a quick five-minute fix that anyone can do. Read on to unlock the exact John Deere choke linkage diagram and the simple adjustment secrets that will get your engine roaring back to life instantly!
What Is A Choke Cable?
A choke cable is a throttle cable connecting the carburetor or other type of fuel injection system to the engine control module (ECM). This cable contributes to regulating the air/fuel mixture and starting a cold engine. The choke cable is also used for adjusting idle speed when a zero-turn mower is running at different temperatures. It allows the ECM to adjust the amount of fuel entering the engine based on the current temperature of the machine as well as other factors like throttle position and RPMs.
Understanding the John Deere Choke Linkage Diagram
The choke on a John Deere lawn tractor is essential for starting the engine. In order for an engine to start after it has been sitting for even just a few hours, the engine needs to be choked to start. When you push the throttle all the way up into the choke position, it closes a large portion of the air intake, so more fuel gets to the engine. When the throttle cable becomes out of adjustment, the choke may not be working. In this case, you may need a choke linkage diagram for easy adjustment.
Diagram for Z915E and Z930M

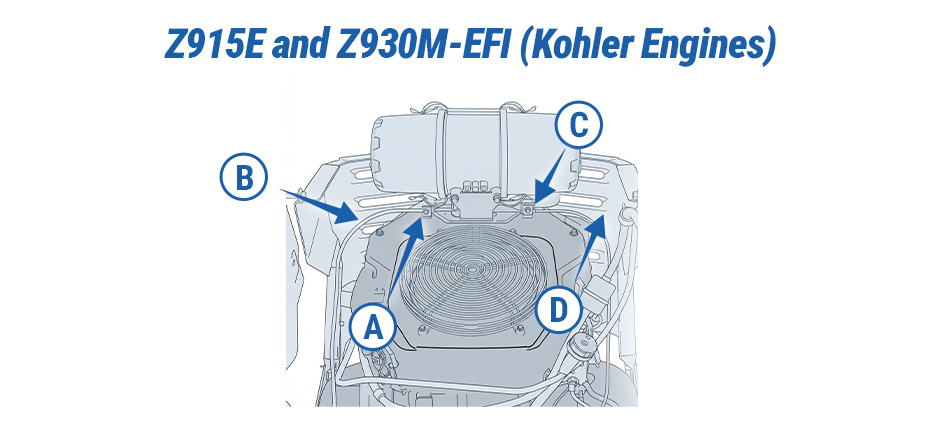

This is the choke linkage diagram for John Deere Z915E and Z930M running on Kohler engines.
Adjusting the Choke and Throttle Cables
Adjusting the choke and throttle cables is straightforward on your John Deere Z915E and Z930M zero-turn mowers. Here are general steps for you:
Throttle Cable Adjustment
To adjust the throttle cable, you should
- Loosen screw (A) for throttle cable housing (B).
- Move the throttle lever all the way forward to the fast position. Move the throttle lever backward 3.2 mm (1/8 in.)
- Pull throttle cable outer housing (B) away from carburetor control plate until it stops. Tighten screw (A) to secure.
- Verify cable operation and full range of throttle lever within the slot. Repeat if necessary.
Choke Cable Adjustment
As for the choke cable adjustment, the steps are also simple:
- Loosen screw (C) for choke cable housing (D).
- Pull choke knob (A) all the way up to the full choke position. Push the choke knob down 3.2 mm (1/8 in.).
- Pull choke cable outer housing (D) away from carburetor control plate until it stops. Tighten screw (C) to secure.
- Verify cable operation and full range of choke knob. Repeat if necessary.
Diagram for Z960M and Z970R

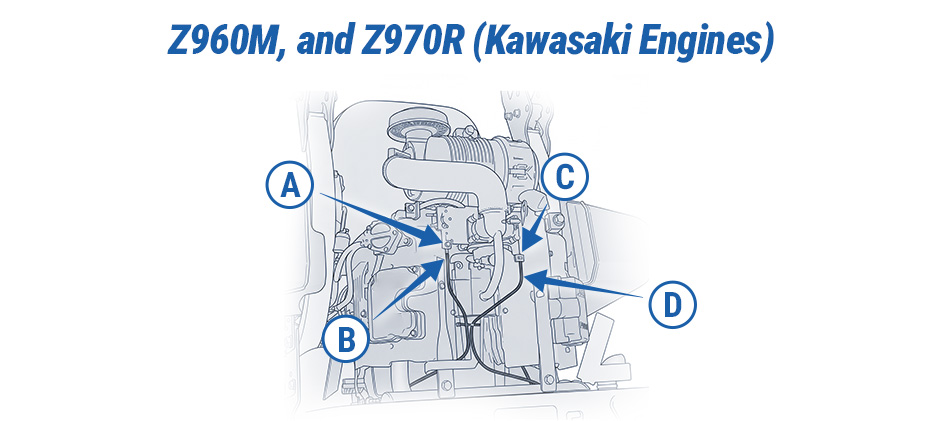

This is another choke linkage diagram for John Deere Z960M and Z970R running on Kawasaki engines.
Adjusting the Choke and Throttle Cables
Throttle Cable Adjustment
The steps for throttle cable adjustment on Z960M and Z970R are quite similar:
- Remove the engine access grill.
- Loosen screw (A) for throttle cable housing (B).
- Move the throttle lever all the way forward to the fast position. Move the throttle lever backward 3.2 mm (1/8 in.).
- Pull throttle cable outer housing (B) away from carburetor control plate until it stops. Then, tighten the screw (A) to secure.
- Verify cable operation and full throttle lever range within the slot. Repeat if necessary.
- Install engine access grill.
Choke Cable Adjustment
Choke cable adjustment for these John Deere models is easy if you follow:
- Remove engine access grill.
- Loosen screw (C) for choke cable housing (D).
- Pull choke knob (A) all the way up to the full choke position. Push choke knob down 3.2 mm (1/8 in.).
- Pull choke cable outer housing (D) away from carburetor control plate until it stops. Tighten screw (C) to secure.
- Verify cable operation and full range of choke knob. Repeat if necessary.
- Install engine access grill.
Wrapping up
Knowing the John Deere choke linkage diagram facilitates the adjustment of the choke and throttle cables. If you inspect any damage or if the cable action feels stiff or gritty after adjustment, you may need a replacement. At FridayParts, we are dedicated to providing a vast selection of quality choke and throttle cables for various brands at an affordable price. Explore our extensive catalog now and enjoy your new rigs later.
