Kubota L3560 is a popular compact utility tractor featuring a compelling blend of power and maneuverability. But we’ve seen many friends struggling with sourcing the correct L3560 parts. In this guide, we’ll talk about everything you need to know about this tractor, including the specs, common problems and fixes. This helps you get the best value for your investment. Let’s move on to reading now.
What Is A Kubota L3560

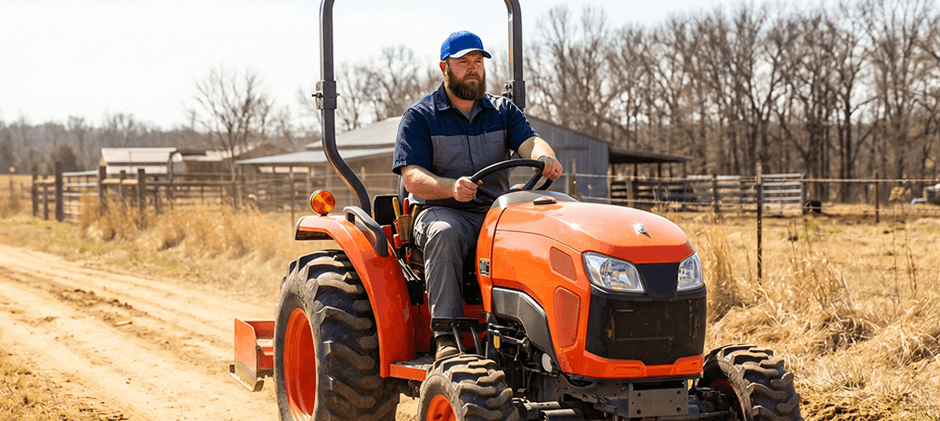

The Kubota L3560 is a compact utility tractor designed for small farms, landscaping and property maintenance. It combines durable construction, an ergonomic operator station and broad implement compatibility to handle loader, mowing and light tillage tasks efficiently. The four variants are L3560DT (4WD), L3560GST (4WD 12-speed), L3560HST (hydrostatic) and L3560HSTC (hydro cab). For more parts information, check out this helpful resource: Kubota Tractor Replacement Parts.
Kubota L3560 Specs
Knowing the specs of the Kubota L3560 is essential to making an informed purchase and sourcing the correct parts for maintenance and repairs.
Dimensions, Weights & Tires
| Dimensions | |||
|---|---|---|---|
| Wheelbase | 71.1 inches 180 cm | Ground clearance | 13.5 inches 34 cm |
| Length | 115 inches 292 cm | Flange rear axle | / |
| Width | 59.8 inches (min) 151 cm | Front tread | 45.5 inches 115 cm |
| Height (ROPS) | 97.2 inches 246 cm | Rear tread | 47.2/51.2/54.5/58.3 inches 119/130/138/148 cm |
| Height (cab) | 90.6 inches 230 cm | ||
| Weights | |||
| DT ROPS | 3483 lbs 1579 kg | GST ROPS | 3494 lbs 1584 kg |
| hydro ROPS | 3505 lbs 1589 kg | hydro cab | 3880 lbs 1759 kg |
| Tires | |||
| Ag front | 7.0-16 | Ag rear | 12.4-24 |
Engine
| Manufacturing | Bore/Stroke | Fuel system |
|---|---|---|
| Kubota | 3.4×4.0 inches 86 x 102 mm |
direct injection |
| Engine Type | Emissions | Rated RPM |
| Diesel | Tier IV |
2700 (gear) 2600 (hydro) |
| No. of Cylinders | Emission control | Starter |
| 3 | exhaust gas recirculation (EGR) | electric |
| Cooling System | Power (net) | Starter volts |
| Liquid cooled | 35 hp 26.1 kW | 12 |
| Displacement | Power (gross) | Fuel tank |
| 111.4 ci 1.8 L | 37 hp 27.6 kW | 13.5 gal 51.1 L |
Transmissions
| Transmission Options | Type, Gear & Clutch |
|---|---|
| 8-speed synchronized shuttle | synchronized shuttle
8 forward and reverse mechanical dry disc |
| 12-speed |
Kubota Glide Shift 12 forward and 8 reverse hydraulic dry disc |
| hydrostatic |
HST Plus hydrostatic infinite forward and reverse (3-range) |
Hydraulics
| Gear Pump flow | Hydro Pump flow |
|---|---|
| 8.3 gpm 31.4 lpm | 8.1 gpm 30.7 lpm |
| Gear Total flow | Hydro Total flow |
| 13.2 gpm 50.0 lpm | 12.8 gpm 48.4 lpm |
| Gear Steering flow | Hydro Steering flow |
| 4.9 gpm 18.5 lpm | 4.7 gpm 17.8 lpm |
Other Information
| Tractor Hitch | ||
|---|---|---|
| Rear Type | Control | Rear lift (at 24″/610mm) |
| I | position control, draft control optional | 2646 lbs 1200 kg |
| Power Take-off (PTO) | ||
| Rear PTO & Type | Mid PTO & Type | |
| independent 540 (1.375) | optional 2000 | |
| Mechanical | ||
| Drive Type | Steering | Brake Type |
| Four-wheel drive | hydrostatic power | Wet disc brakes |
| Electrical | ||
| Ground | Charging system | ROPS Charging amps |
| negative | alternator | 40 |
| Cab Charging amps | Battery volts | |
| 60 | 12 |
*Sourced from TractorData
Related Articles You Might Enjoy: What Is A Tractor Three-point Hitch and How Does It Work; 2WD or 4WD?Which Tractor Is Best For Farmers
What’s the Real Difference between 4WD and MFWD tractors?
Kubota L3560 Common Problems, Symptoms & DIY Fixes
| Problem | Symptoms | DIY Fix | DIY Cost |
|---|---|---|---|
| HST Plus Surging and Stalling | RPM hunting, stalls, won’t restart 30-45 min | Check battery disconnect wiring and grounds | Free–$100 |
| DPF Regen Failures DPF | Frequent regen light/ power loss during regen | Run at rated RPM — never inhibit regen | Free–$300 |
| Loader / 3-PT Weak at Low RPM | Loader barely lifts below 1600 RPM | Test at 2400-2600 RPM | Free |
| IntelliPanel Electrical Faults | Random warning icons, intermittent no-start | Load-test battery, clean all grounds | $150–$300 |
| HST Range Shifting | Abrupt speed changes, jerky pedal response | Adjust HST response control setting | Free |
| Weight and Traction Complaints | Feels down on power vs spec in heavy ground | Understand HP-per-lb — not a defect | Free |
| DPF / EGR Clogging High Hours | DPF pressure codes, regen failures post-warranty | Check DPF and EGR maintenance schedule | $300–$2,500 |

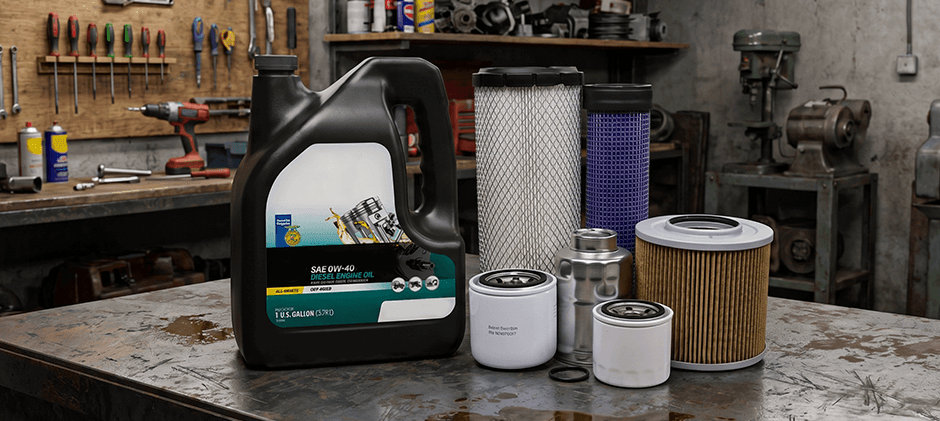

Kubota L3560 Maintenance & Aftermarket Parts
The table shows the L3560 maintenance schedules and replacement parts for your reference.
| Service Item | Interval | Replacement Parts/Fluids | Parts Number | Links |
|---|---|---|---|---|
| Engine oil and filter change | Every 200 hrs | Oil Filter
|
HH164-32430 | Buy |
| Fuel filter replacement | Every 200 hrs | Fuel Filter | HH1J1-43172 | Buy |
| Air filter outer element | Every 200 hrs | Outer & Inner Air Filter Kit | TA040-93230
TA040-93220 |
Buy |
| Hydraulic filter and fluid change | Every 400 hrs | Hydraulic Filter | HHTA0-37710 | Buy |
| Front axle oil change | Every 400 hrs | 80W-90 gear oil | / | / |
| Glow plug inspection and replacement | Every 1,000 hrs | Glow Plugs | 19077-65510 | Buy |
| EGR cooler and system cleaning | Every 1,500–3,000 hrs | EGR Cooler | / | Dealer or Specialty Shop |
| DPF sensor hoses and boost sensor hoses | Every 2 years | Sensor Hoses | Verify part numbers at the dealer | / |
| DPF muffler professional cleaning | Every 3,000 hrs | DPF Muffler | / | Specialty Shop preferred |
| Engine coolant flush and refill | Every 1,000 hrs | Kubota Super Coolant (LLC) | 70000-40201 | Dealer |
| HST / transmission fluid change | Every 800 hrs | Kubota UDT2 Fluid | 70000-40201 |
Always refer to your operator’s manual regarding maintenance practices and sourcing replacement parts. FridayParts stocks a vast selection of high-quality tractor replacement parts to keep your machine back to its peak performance.
Frequently Asked Questions
Q1: How much does a Kubota L3560 cost?
A1: The Kubota L3560 tractor typically costs between $19,900 and $57,945, depending on factors like year and condition.
Q2: What kind of oil does Kubota L3560 take?
A2: Kubota recommends using SAE 15W-40 or SAE 10W-30 oil.
Q3: Does the Kubota L3560 have a DPF?
A3: Yes. The L3560 uses the D1803-CR-E4 common-rail engine with EGR and DPF to meet EPA Tier 4 Final emissions.
Conclusion
The Kubota L3560 is a capable and versatile compact utility tractor that delivers reliable performance across a wide range of tasks from loader work and mowing to light tillage. Understanding its specs, common problems and maintenance schedule is key to getting the most out of your machine and avoiding costly repairs down the road. Always refer to your operator’s manual for guidance specific to your configuration. Choose high-quality parts at FridayParts. We stock a wide selection of Kubota replacement parts to keep your tractor field-ready, season after season.
