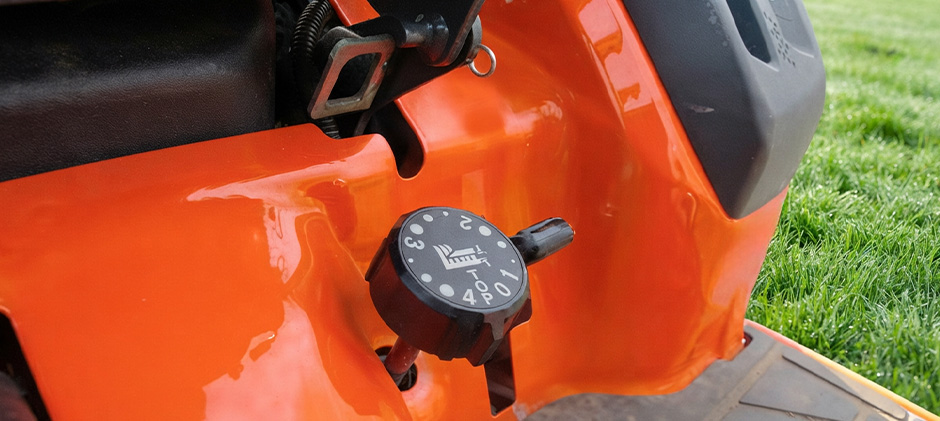

Is your Kubota mower deck height adjustment knob stuck and won’t turn? Maybe you’ve tried turning it with the deck up and down, but it still won’t budge. The good news is, the fix is often simple. In this guide, we’ll explain why the knob gets stuck and show you how to fix it step by step.
Raise the Mower Deck Before Adjusting the Knob
This trick fixes the issue for most people. The height adjustment knob on your Kubota mower isn’t made to turn when the deck’s full weight is pressing down on it. If you leave the deck down and try twisting the knob, you’re working against hundreds of pounds of heavy steel.
Here’s why it gets stuck: The height knob moves a part called a cam. The cam has different steps that set the cutting height. When you lower the mower deck, a metal piece on the lift linkage presses against one of these steps. The weight of the deck puts pressure on it, so the cam can’t move. That huge pressure creates a natural mechanical lock.
You need to lift the deck all the way up to release that heavy pressure. On most Kubota BX and other series tractors, the mower deck lift is connected to the three-point hitch hydraulic system.
- Start the tractor.
- Use the hydraulic lever to raise the three-point hitch all the way up until it stops. You may hear the hydraulics whine slightly when it reaches the top, which is normal.
- Try turning the knob again. It should now rotate, often with a series of distinct clicks.
Check the Three-Point Hitch and Lift Mechanism
What if you lift the deck all the way up, yet your Kubota mower deck height knob still won’t turn? When this happens, it usually means the deck isn’t rising high enough to free itself from the adjustment cam. The lift arms move all the way up, but they fail to pull the deck up properly. A poorly adjusted lift linkage causes this problem in most cases.
The lift linkage is a set of rods and arms that link the tractor’s three‑point hitch to the lifting spots on the mower deck. These linkages can come out of alignment over time, or they may not be set right from the factory. You need to tune them so the deck rises high enough to remove all weight from the cam when the three‑point hitch hits its top position. Don’t lift it too far, or the deck will bang against the bottom of the tractor frame and get damaged.
How to Check and Fix the Lift Linkage
- Find the adjustment rod. It is a threaded rod built into the deck lift linkage. On most BX tractors, you can find this adjustment point on the left side from the operator seat. It connects the three‑point hitch arm to the deck lifting parts.
- Spot the lock nuts on this rod. Loosen these nuts, and you can make the rod longer or shorter to change how high the deck can lift.
- Make tiny tweaks. Raise the deck fully, then tighten the lock nuts one or two full turns to shorten the rod. This lifts the deck higher.
- Test the knob after every small change. Keep adjusting little by little until the knob spins smoothly.
- Check the gap once the knob works. Lower the deck a bit, then lift it all the way up again. Leave a small gap between the deck top and tractor frame to avoid hits and damage.
You may need several tries to hit that perfect setting. Once you get it right, this linkage should stay good for a very long time without extra adjustments.
Clean and Lubricate the Height Adjustment Mechanism
Grass, dirt and moisture build up inside every gap under your tractor after years of mowing. The height adjustment parts collect gunk really easily. If the knob still feels tight even when you lift the deck all the way up, you need to clean and lubricate the whole mechanism thoroughly. This assembly has gears, springs and metal plates that get clogged without much trouble. Packed‑in debris stops these parts from moving freely.
How to Clean and Lubricate the Adjustment Parts
1. Stay safe first. Park the tractor on flat ground, set the parking brake and pull out the key. If you want easier access underneath, drive the front wheels onto ramps.
2. Blow away loose dirt. Grab an air compressor with a nozzle and blast loose dirt and dry grass clippings off the knob assembly under the tractor.
3. Treat hardened grime. Spray brake cleaner or heavy‑duty degreaser on thick, stuck‑on dirt. Scrub the gears and linkages with a stiff brush.
4. Add lubricant carefully only after everything is clean and dry, and make sure you grease the right spots.
- Where to lubricate: Use penetrating oil such as WD‑40 or PB B’laster on the main shaft for the knob, plus the detent spring and bolt parts that create that clicking feel. This loosens up stiff turning motion.
- What not to lubricate: Many long‑time tractor owners warn against spraying lube straight onto the stepped cam surfaces. These spots need some friction to lock the deck firmly. If they get too slippery, vibrations while mowing can make the deck slide down to a lower cutting height on its own.
Once you oil all the pivot points, twist the knob back and forth across its full range several times. This works the lubricant in and helps every part move smoothly.
Inspect the Gears, Shaft, and Linkage
Cleaning and lubricating the parts may not fix the trouble. Or you might find the deck height shifts on its own while you mow. When this happens, some mechanical pieces have worn out. A heavy mower deck puts constant weight and vibration on the height adjustment system, and these parts wear down after years of use.

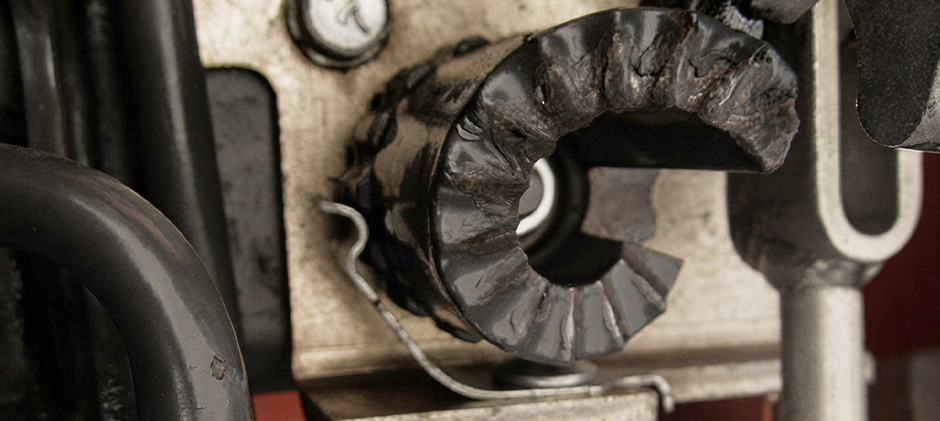

- Height cam (stepped gear): This part fails most often. Look closely at the stepped edges on the cam. If those edges become rounded and smooth, the stop pin can slide out of place, and the deck may suddenly drop. Heavy wear can also leave rough burrs that jam the whole mechanism.
- Stop pin or lever: Inspect the linkage piece that sits on the cam. If its contact surface wears flat, it cannot lock firmly onto the cam steps.
- Detent spring: This small spring pushes against the outer edge of the cam and makes that clicking sound when you turn the knob. A broken, loose or missing spring lets the knob spin too easily or feel soft. It cannot hold your chosen cutting height.
When the cam steps show heavy wear, replacing this part is the smartest fix. It wears out regularly with use, and a brand‑new cam will make your height adjustment lock tight and click smoothly again.
What to Do If the Knob Still Won’t Turn?
You’ve lifted the deck, checked the linkage and cleaned the whole mechanism, but the knob is stuck solid. This often happens on older machines that stay outdoors, when rust builds up and locks parts together. At this stage, you can try a few stronger fixes.
- Use penetrating oil. Pour plenty of good penetrating oil all over the assembly. Leave it for at least 30 minutes, or even overnight. This lets the oil seep into tight spots and dissolve rust.
- Twist it carefully. Wrap a thick towel or rag around the knob to avoid damage. Grab a big adjustable wrench or channel‑lock pliers and apply steady, firm pressure to turn it. Don’t yank hard, or you might snap the plastic knob.
- Try the block test if you think the hydraulic lift is to blame. Lift the deck to its highest position and turn off the tractor. Put solid wooden blocks, such as 4×4 lumber, under all four corners of the deck to hold its full weight. Now the deck rests on the blocks instead of the linkage. If the knob turns freely after this test, the lift linkage is not lifting the deck high enough. You will need to adjust it following the steps we covered before.
How to Set the Correct Kubota Mower Deck Height?
Once your knob is working correctly, it’s important to use it properly to avoid future issues and get the best cut.
- Always start by raising the deck to the full “Top” position using the tractor’s hydraulics.
- Turn the adjustment knob clockwise to your desired cutting height (e.g., 2.5″, 3.0″). Most Kubota systems are designed to be turned clockwise, even if you are going to a lower number.
- Slowly lower the hydraulic lever. The deck will drop until the stop pin engages the step you selected on the cam.
To change the height again, you must repeat the process: raise the deck fully, turn the knob, then lower it.
Final Thoughts
A stuck height adjustment knob on your Kubota mower is a common issue, and you can fix it. Just follow these steps to find out what’s wrong. FridayParts keeps a huge inventory with parts that fit Kubota and many other brands, so you can easily get the exact components you need.
