When the red or yellow light flashed on your New Holland dashboard, were you curious about what it meant? Is this serious? Can you continue to operate this tractor? Yes, it’s serious. Ignoring the wrong light can lead to catastrophic damage and multi-thousand-dollar repairs.
Unlike a confusing owner’s manual or a long list of 100+ symbols, this guide aims for the solution, giving you clear, step-by-step instructions for the most important symbols.
Note: Symbols may vary by tractor model and year. For this, you can read: New Holland tractor serial number lookup. This guide covers the most common warnings, but always consult your official operator’s manual for complete accuracy.
New Holland dashboard color code
Getting to know the color-coded system is the first step in diagnosing which New Holland parts may need your attention.
- RED: STOP! This signals a critical failure. Stop the tractor safely and immediately to prevent severe damage.
- Yellow: CAUTION! A system needs attention or maintenance soon. You can often finish your immediate task, but address the issue as soon as possible.
- GREEN/BLUE: INFORMATION. A system you activated (like 4WD or PTO) is on and working correctly.
New Holland Dashboard Warning Lights & Symbols Explained

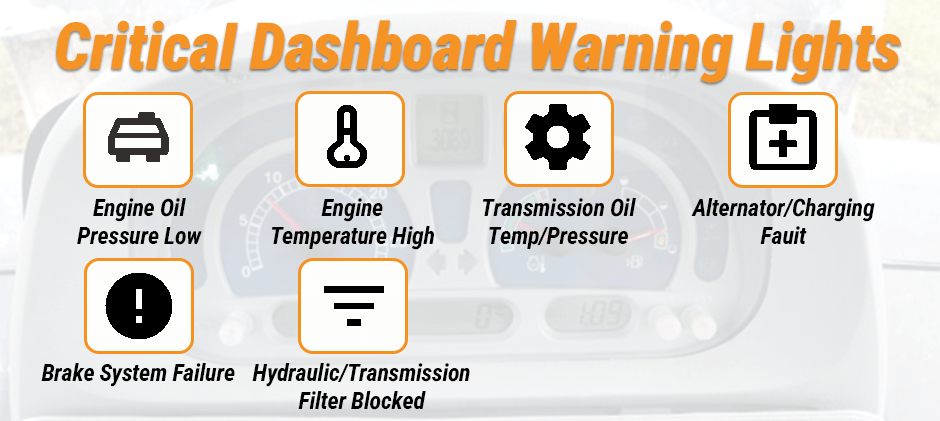

Part 1: The Critical RED Warnings — Stop Immediately & Investigate
These are the most important symbols on your entire New Holland dashboard. When one of these is accompanied by the RED STOP light, your only action is to shut down the engine as soon as it is safe to do so. Among all tractor dashboard symbols and meanings, the engine oil pressure light is the one you can never afford to ignore. However, there are several other vital signals your machine uses to communicate its health. Here is a breakdown of the most critical warnings:
1. Engine Oil Pressure Low
This is the most urgent engine warning. It means the pressure required to circulate oil throughout your engine has dropped to a critical level. This could be due to a low oil level, a failing oil pump, or a major leak. Without pressure, oil isn’t protecting moving parts, and metal is grinding against metal.
What to Do Immediately:
- STOP THE ENGINE. Do not hesitate. Every second of operation causes exponential damage.
- Wait a few minutes for the oil to settle in the pan.
- Safely open the engine hood and check the oil level with the dipstick.
- Look under the tractor for signs of a significant oil leak.
Consequences of Ignoring: Running the engine for even 2-3 minutes can seize it completely, requiring a full engine rebuild or replacement—the most expensive repair your tractor can have.
2. Engine Temperature High
The engine’s cooling system is overwhelmed and cannot dissipate heat effectively. This is often caused by a radiator requiring a thorough cleaning of dirt and debris, low coolant levels, or a failing water pump. An overheating engine can quickly warp or crack the cylinder head.
What to Do Immediately:
- Immediately reduce engine RPM to idle and disengage any load.
- Move to a safe spot and shut off the engine.
- NEVER open the radiator or coolant cap on a hot engine. The system is highly pressurized and can cause severe burns.
- Visually inspect the radiator fins for blockage. Check that the fan belt is intact and has tension.
- Allow the engine to cool completely (this can take an hour or more) before attempting to check the coolant level.
Consequences of Ignoring: Can lead to a blown head gasket, a warped cylinder head, or a cracked engine block. These are all major, time-consuming, and very costly repairs.
3. Transmission Oil Temperature or Pressure Low
The transmission and hydraulic systems share oil. This light means the oil is either dangerously hot (losing its ability to lubricate and protect) or the pressure is too low to operate the clutches and hydraulics properly. This can be caused by low fluid, a clogged filter, or a failing pump.
What to Do Immediately:
- Stop the tractor and cycle through the gears to see if engagement feels weak or delayed.
- Shut off the engine and let the system cool.
- Check the transmission/hydraulic fluid level according to your operator’s manual.
- Check for obvious, major leaks around the axles and hydraulic lines.
Consequences of Ignoring: Can burn out clutch packs, destroy the hydraulic pump, and contaminate the entire system with metal debris, leading to a full transmission rebuild.
4. Alternator / Charging System Fault
The alternator has stopped charging the battery. The tractor is now running only on battery power and will die once the charge is depleted. The cause is typically a broken belt, bad wiring, or a failed alternator.
What to Do Immediately:
- Turn off all non-essential electronics: A/C, radio, extra work lights.
- Do not shut off the engine if you are far from your workshop, as it will not restart.
- You have a limited window of run time. Head directly back to your service area.
Consequences of Ignoring: You will be stranded, potentially in the middle of a field. A dead battery can also create safety issues if it fails while hydraulics are in use.
5. Brake System Failure / Low Fluid
This is a critical safety warning. It indicates low pressure in the brake system or that the brake fluid level is dangerously low. Your ability to stop the tractor is compromised.
What to Do Immediately:
- Carefully test the brakes at a low speed.
- Bring the tractor to a safe stop using the brakes and by downshifting.
- Engage the parking brake and shut down the engine.
- Check the brake fluid reservoir. Look for any visible leaks in the brake lines.
Consequences of Ignoring: Complete loss of braking power, leading to a potentially fatal accident.
6. Hydraulic or Transmission Filter Blocked
The filter is so clogged that oil can no longer pass through it easily. The system is starving for oil, which can cause the hydraulic pump to cavitate (run dry) and destroy itself. This will also cause sluggish performance of loaders and implements.
What to Do Immediately:
- Lower all implements to the ground.
- Stop the engine.
- This is a red warning that must be addressed before further operation. The filter needs to be replaced.
Consequences of Ignoring: Will lead to hydraulic pump failure, a very expensive component to replace, and can send metal debris throughout the entire hydraulic system.
Part 2: The Yellow Warnings — Caution & Upcoming Maintenance
Amber lights are your tractor’s way of giving you a heads-up. You can typically finish the task at hand, but plan to address the issue at the end of the day.
Maintenance Alerts:
- Engine Air Filter Blocked: Your engine isn’t getting enough air. You’re losing power and fuel efficiency. Action: Replace the air filter.
- Fuel Filter / Water in Fuel: The fuel/water separator has detected water. Action: Drain the water from the separator bowl. If the light persists, change the fuel filter.
System Status Warnings:
- Low Fuel Level: You’re running low on diesel. Action: Refuel soon to avoid running the system dry and needing to bleed the fuel lines.
- DEF / AdBlue Low Level: For newer tractors, your Diesel Exhaust Fluid is low. The tractor will eventually enter a “limp mode” or refuse to start if not refilled. Action: Refill the DEF tank with the correct fluid.
Part 3: How to Reset New Holland Dashboard Warning Lights
A common question is, “How do I turn the light off?” It’s simple: A warning light is not reset manually. It turns off automatically when you fix the root cause of the problem.
1. Identify the Problem: Use this guide or your manual to understand what the light means.
2. Fix the Problem: Perform the required action. For example:
- If the Low Oil Pressure light was on, and you added oil, the light should go off the next time you start the engine.
- If the Clogged Air Filter light was on, the light will go off after you install a new filter.
3. Verify the Reset: Start the tractor. The light should illuminate briefly during the initial self-check and then turn off.
If the light does not turn off after you’ve fixed the obvious issue (e.g., you changed the oil, but the oil pressure light stays on), it indicates a more serious problem, like a faulty sensor or a failing pump. At this point, professional service is required.
Frequently Asked Questions (FAQ)
Why do all my lights flash on startup?
This is a normal self-check. The tractor’s computer is verifying that all the warning light bulbs and circuits are working. They should all go off after a few seconds.
What’s the difference between a red and an amber warning?
Think of it like a traffic light. Red means STOP NOW. Yellow means CAUTION, prepare to stop or service soon.
My light is on, but the tractor seems to be running fine. What should I do?
Do not trust your feelings over the sensor. The sensor is designed to detect a problem before it becomes a catastrophic failure that you can feel. Investigate the cause immediately, especially if it’s a red light.
What if a symbol appears with a four-digit error code?
This is a diagnostic trouble code (DTC). The symbol tells you the affected system (e.g., engine, transmission), and the code provides a specific fault. Write down the exact code. This information is extremely valuable for a technician and can save hours of diagnostic time.
In Summary
This guide tells you what the New Holland dashboard light is and what the symbols mean. Following these instructions, you can find potential repairs and save yourself from panic when urgency arises.
