Modern tractors’ dashboards sometimes resemble aircraft cockpits, which can cause a headache; if one cannot precisely understand what they represent, it can lead to difficulties in tractor operation. Therefore, to understand these tractors’ dashboard symbols and meanings is extremely important; it concerns safe operation and timely maintenance. This guide aims to interpret the meanings of these symbols for you, so that you always accurately understand the machine’s indicators.
Key Takeaway
- To fully master your machine, you can explore our complete guide to New Holland Tractor Dashboard Symbols.
- We also have a dedicated breakdown for operators who want to understand John Deere Tractor Dashboard Symbols and their advanced features.
- Furthermore, our resource on Kubota Tractor Dashboard Symbols will help you decode every light on their popular compact and utility tractors.

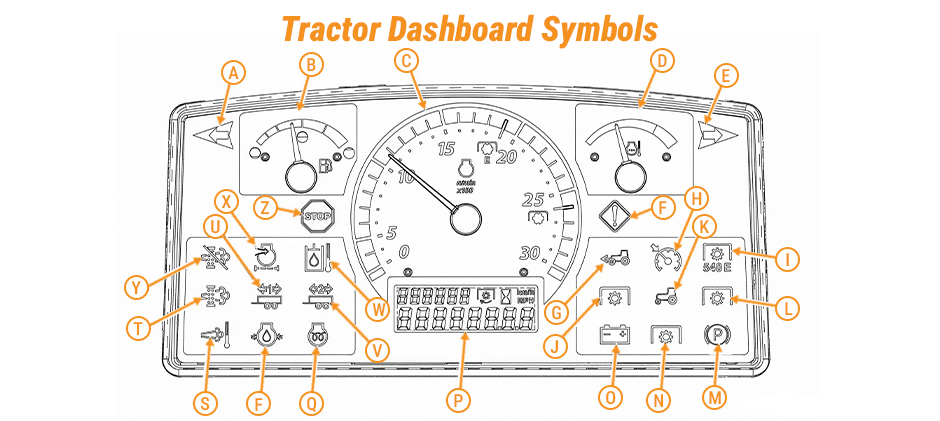

Common Tractor Dashboard Symbols
Although dashboards differ among manufacturers, the majority employ a standardized collection of symbols. The following list, arranged in alphabetical order, elucidates the meanings of the icons illustrated above for the sake of clarity.
Gauges and General Indicators
- A. Left Turn Signal: A flashing green arrow demonstrating the operation of the leftward indication device or the activation of emergency hazard illumination.
- B. Fuel Level Gauge: This instrument manifests the remaining quantity of combustible liquid within the fuel containment vessel. When the pointer penetrates the crimson sector or a yellow luminescent emblem emerges adjacent, refueling becomes a matter of necessity.
- C. Tachometer (Engine RPM): This prominently positioned dial exhibits the rotational velocity of the engine, quantified in revolutions per minute and magnified by a hundredfold. Maintaining the engine within its prescribed range ensures both economical consumption and the precise velocity of PTO-driven apparatus.
- D. Coolant or Oil Temperature Gauge: This indicator surveils the thermal condition of the coolant or, in certain configurations, the hydraulic oil. Should the pointer ascend into the red demarcation, it signifies thermal excess. Cease operation forthwith to allow the engine to cool and ascertain the cause, such as inadequate coolant or an obstructed radiator.
- E. Right Turn Signal: A flickering green arrow symbolizing the functionality of the rightward turn indicator or hazard illumination system.
- F. General Warning / Caution Light: This yellow triangular emblem enclosing an exclamation mark serves as a universal cautionary sign. It denotes the presence of a non-critical irregularity and often coexists with a more particular alert or digital communiqué.
Powertrain and PTO Systems
- G. PTO (Power Take-Off) Engaged: This verdant insignia proclaims the activation and rotation of the Power Take-Off shaft—an essential cautionary sign, for the PTO constitutes a significant mechanical peril.
- H. Cruise Control / Auto-Throttle Active: This green luminescence signifies that a prearranged engine or ground velocity—colloquially termed cruise control—has been engaged.
- I. 540 E Eco PTO Mode: This denotes the selection of the economic PTO configuration, wherein the shaft attains 540 RPM with diminished engine revolutions, thus conserving fuel during tasks of lesser exertion.
- J. Hydraulic Pressure Warning: This is one of the most critical warning tractor dashboard symbols. A red light here indicates abnormally low pressure in the main hydraulic system, which could lead to a loss of steering, brakes, or implement control. Stop immediately.
- K. Auto PTO Function: This green indicator signifies the operation of automatic PTO control, which autonomously disengages the shaft upon the elevation of an implement.
- L. PTO 1000 RPM Mode: This light reveals that the PTO has been configured to deliver 1000 revolutions per minute, suitable for implements necessitating such vigor.
- M. Parking Brake Applied: This red light serves as a conspicuous reminder of an engaged parking brake. Ensure its release before any vehicular motion.
- N. Four-Wheel Drive Engaged: This verdant illumination affirms the activation of four-wheel propulsion, thereby distributing power to the anterior wheels for augmented adherence.
Critical System Warnings
- O. Battery / Charging System Warning: Should this crimson battery emblem persist after ignition, it indicates derangement within the electrical apparatus—potentially an inoperative alternator, fractured belt, or defective circuitry.
- P. LCD Multi-Function Display: This digital interface imparts comprehensive data encompassing operational duration, journey metrics, maintenance codes, and specific alerting communiqués.
- Q. Coolant High Temperature Warning: This red icon, depicting a thermometer immersed in liquid, represents a perilous escalation of coolant temperature. The engine must be halted instantly to avert grievous damage, such as cylinder head deformation.
- R. Engine Oil Pressure Low Warning: This red oil can silhouette signifies a catastrophic decline in engine oil pressure. Immediate termination of engine activity is essential to forestall irreparable mechanical ruin.
- S. Glow Plug Indicator (Diesel Pre-heat): This yellow coiled emblem illuminates under frigid conditions upon key rotation. One must await its extinction before ignition, indicating sufficient thermal preparation of the combustion chambers.
- T. Air Filter Clogged Warning: This yellow symbol indicates that the engine air filter is restricted. A clogged filter reduces engine power and fuel efficiency. You should inspect and replace the air filter soon. Finding high-quality replacement tractor parts like filters is key to keeping your machine breathing easy.
Drivetrain and Auxiliary Systems
- U. Differential Lock Engaged: This green luminescence signifies the engagement of the differential lock, compelling the rear wheels to revolve in unison for heightened traction amid treacherous terrain.
- V. Hydraulic Filter or Oil Temp Warning: This symbol—oft yellow, occasionally red—alerts the operator to an obstructed hydraulic filter or excessive oil temperature, both deleterious to system integrity and lubrication efficacy.
- W. Trailer Brake / Lighting Circuit Fault: This yellow illumination declares that there exists some disorder within the electrical communication to the trailer, perhaps in the brake or the turning signal’s wiring.
X. Front/Rear Diff Lock Status Indicator: This token imparteth more particular knowledge as to which differential locks are presently in bondage, oft observed in machines of more sophisticated four-wheel drive contrivance. - Y. Headlights / Work Lights On: This green emblem merely indicates that the principal headlights or the auxiliary lamps of labor are now in service.
- Z. STOP – Major Fault: This is the gravest of warnings. When the red “STOP” lamp doth shine, it proclaimeth a calamity of system’s utmost severity. Cease the engine forthwith and abstain from further operation till the mischief be discerned and remedied.

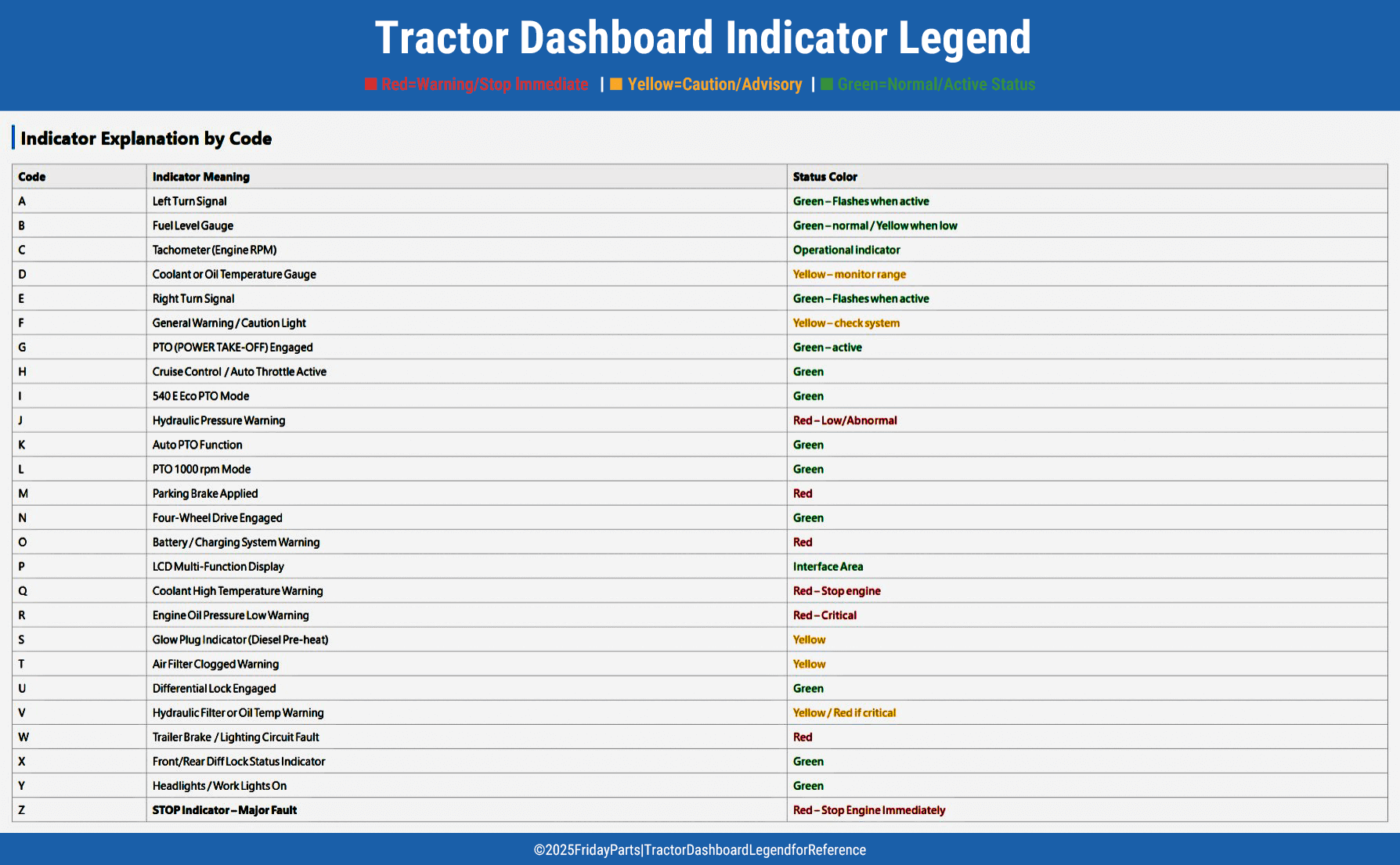

Tractor Dashboard Indicator Legend
While the symbols themselves are largely standardized, the exact layout and combination of lights can vary. The legend below provides a simplified, quick-reference guide that summarizes the meaning and status color of the symbols discussed. This format is useful for printing and keeping in your toolbox or cab for a quick check when a light comes on and you’re away from the manual. Always remember the hierarchy: Red demands an immediate stop, Yellow calls for attention soon, and Green is for your information.
From Warning Light to Solution
At the root of all, the indicator lights on the dashboard serve as the principal medium through which the tractor converses with its operator. To acquire the comprehension of these luminous signals constitutes the foremost and most indispensable step in the responsible possession of such equipment. It safeguards your security, averts costly impairment, and maximizes the duration of uninterrupted operation. When, on occasion, a warning light indeed denotes that a certain component requires replacement, a reasonably priced and dependably manufactured parts supplier such as FridayParts becomes the crucial second measure to ensure your machine returns to the field with the least possible delay.
