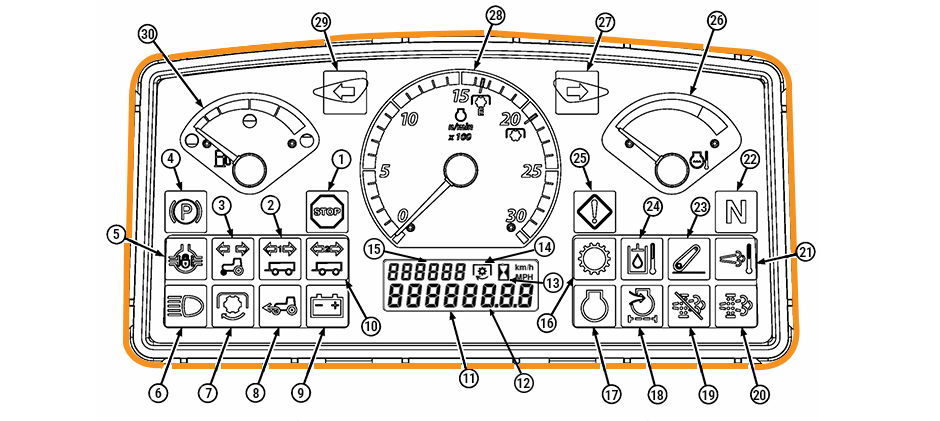

John Deere Tractor Dashboard Color Code
Level 1: Red Alerts
When a red light appears, stop the engine immediately. A red indicator signals a critical failure that could cause severe, expensive damage to your tractor or pose a safety risk. Your only action is to safely shut down the engine as soon as possible.
Engine Oil Pressure Light
Looks Like: an icon resembling an old-fashioned oil can.
Means: The engine has detected dangerously low oil pressure. This is one of the most serious warnings, as continued operation without proper lubrication will destroy the engine.
How to Resolve: Immediately and safely stop the engine first. Allow the engine to sit for several minutes, then check the oil level using the dipstick. If the oil level is low, add the correct specification of oil and check for visible leaks. If the oil level is correct, the issue could be a failed sensor, a clogged filter, or a failing oil pump. Do not restart the engine.
Engine Coolant Temperature Warning
Looks Like: A thermometer symbol, often submerged in wavy lines representing liquid.
Means: The engine is overheating. Continuing to run the tractor can lead to a seized engine, warped cylinder heads, and other catastrophic failures.
How to Resolve: Let the engine cool down completely. Never open a hot radiator cap, as pressurized steam can cause severe burns. Once cool, check the coolant level in the reservoir and radiator. Check for obstructions like dirt or debris blocking the radiator fins. If the coolant is low, top it off with the correct coolant/water mixture. If the problem persists, you may have a leak, a bad thermostat, or a failing water pump.
Charging System Failure
Looks Like: A battery symbol with a “+” and “-” inside.
Means: The electrical system is no longer charging the battery. The tractor is now running on battery power alone.
How to Resolve: Do not shut off the tractor if you are far from a service area, as it may not restart. Drive directly to a location where it can be serviced. The problem is typically a broken alternator belt, a failed alternator, or loose/corroded battery connections. Inspect the belt and clean the battery terminals. If that doesn’t solve it, the alternator likely needs testing or replacement.
Level 2: Amber/Yellow Warnings
Amber or yellow lights are your tractor’s way of saying, “Hey, pay attention to this.” They aren’t emergencies, but ignoring them will lead to reduced performance, increased fuel consumption, or a future breakdown.
Air Filter Restriction
Looks Like: An icon of an air filter, sometimes with arrows indicating restricted flow.
Means: The engine air filter is clogged with dust and debris, starving the engine of clean air. This reduces power and fuel efficiency.
How to Resolve: At your next opportunity, inspect the engine air filter. Depending on the type, either clean it according to the operator’s manual or replace it with a new one. This is a simple but vital maintenance task.
Low DEF (Diesel Exhaust Fluid) Level
Looks Like: An icon of an exhaust pipe with vapor, or a tank with a droplet labeled “DEF.”
Means: The Diesel Exhaust Fluid tank is running low. If the tank runs empty, the tractor’s engine will switch to “limp mode” (with severely reduced power) or may fail to start. You must refill the tank to resolve this.
How to Resolve: Refill the DEF tank with new, high-quality Diesel Exhaust Fluid as soon as possible. Always use a clean funnel to avoid contaminating the system.
Hydraulic Filter Restriction
Looks Like: Often a filter symbol inside a gear or droplet icon.
Means: The hydraulic oil filter is becoming clogged and needs to be replaced. A clogged filter can lead to sluggish hydraulic performance and put a strain on the hydraulic pump.
How to Resolve: Plan to change the hydraulic oil filter at your earliest convenience, a hydraulic system service.
Level 3: Green, Blue & White Indicators
These lights are good news. They are not warnings but simply confirm that a system you have activated is functioning as intended.
PTO (Power Take-Off) Engagement
Confirms the PTO shaft is active. It serves as a critical safety reminder to be aware of the rotating equipment.
Four-Wheel Drive (4WD) Active
The 4WD system engages and provides power to all four wheels, and this indicator lets you know.
Differential Lock Engaged
Shows that the differential lock is active, forcing both drive wheels on an axle to turn at the same speed for maximum traction.
By understanding this color-coded hierarchy, you can instantly assess the severity of any dashboard light and take the appropriate, safe, and cost-effective action.
