If hard starting, misfires under load, or short plug life keep showing up, the right NGK spark plug chart can save time and help avoid the wrong replacement. A quick match is only part of the job. You also need to check cross-reference fit, gap, heat range, and plug color before the next service call turns into the same repair again. The sections below help you compare plug numbers, read service clues, and make better parts decisions for equipment in operation.

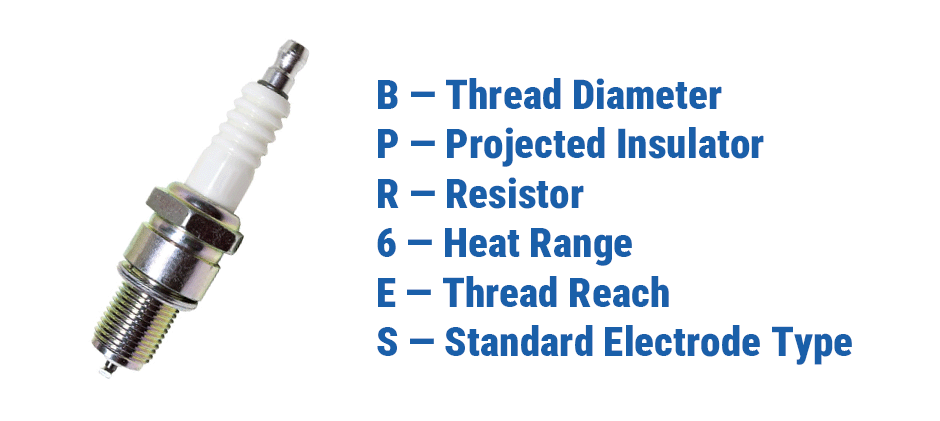

What To Check In An NGK Spark Plug Chart?
When looking at an NGK spark plug chart, the first goal is to confirm the exact plug, not just find a brand swap that looks close. For off-road machinery and nearby support equipment, the chart needs to do more than show a list of numbers.
Focus on these items first:
| Check Item | Why It Matters |
|---|---|
| Part number | Best way to confirm the correct plug |
| Cross reference | Helps compare options across brands |
| Gap | Affects spark strength and performance under load |
| Heat range | Changes how hot the plug tip runs |
| Plug color | Helps show how the engine has been burning |
If any of these points are missed, the engine may still run, but plug life and performance often suffer.
For that reason, it also helps to inspect spark plugs, ignition coils, and wire sets during the same check when ignition problems keep returning.
NGK Spark Plug Cross Reference Chart
Find the plug family that fits the machine in front of you.
For Small Engine Plugs
| NGK Part No. | Stock No. | Champion | Autolite | Denso | Oregon |
|---|---|---|---|---|---|
| BPMR8Y | 2218 | RCJ6Y | 2974 | — | — |
| BPR2ES | 2015 | RN14YC | 66 | W9EXR-U | — |
| BPM8Y | 5574 | CJ8Y | — | — | — |
| BR2-LM | 5798 | RJ19LM | 468 | W9LMR-US | 77-305-1 |
| BCPR5ES | 6130 | — | — | Q16PR-U | 77-303-1 |
| BPR6EY | 6427 | — | — | W20EXR-U | — |
| BPMR7A | 6703 | RCJ6Y | 2976 | W22MPR-U | 77-307-1 |
| BPR5ES | 7734 | RN11YC4 | 64 | W16EPR-U | 77-314-1 |
| BPR6HS | 7022 | RL87YC | — | — | — |
| BPR6ES | 7131 | RN9YC | 63 | W20EPR-U | — |
These plug numbers often appear in generators, compact gas engines, and outdoor power units used around off-road job sites.
More NGK Cross Reference Entries
| NGK Part No. | Stock No. | Champion | Autolite | Denso | Briggs & Stratton |
|---|---|---|---|---|---|
| BKR5E | 7938 | RC12YC | 3924 | K16PR-U | 491055S |
| BKR5E | 6719 | RC12YC | 3924DP | — | — |
| UR4 | 6630 | RV15YC4 | 25 | T16PR-U | — |
| B6L | 3212 | H10C | 216 | W14L | — |
| BM7A | 6521 | CJ6 | 254 | W22M-U | — |
| BM6A | 7421 | CJ8 | 255 | W22M-U | 796112S |
| BMR4A | 5728 | CJ14 | 258 | W14M-U | — |
| BP4HS | 7823 | L87YC | 275 | — | — |
| B4 | 3210 | J8C | 295 | W14U | — |
| B6S | 3510 | J6C | 303 | — | 796112S |
A quick cross-reference check is useful, but it is not the same as a full fit confirmation.
Keep these points in mind:
- The same part number may appear with different stock formats
- Blank spaces do not mean any substitute will work
- A cross reference alone does not confirm gap, thread reach, or heat range
If a machine already has starting or running issues, it makes sense to check the engine’s electrical components at the same time instead of just changing the plug.
How To Read Part Number, Gap, and Heat Range Data?
Wrong plug installs often happen because the match was close, not correct. Part number details help prevent that.
Part Number Vs Stock Number Explained
The part number carries the useful design information. The stock number is mainly for ordering and inventory.
| Number Type | Use |
|---|---|
| Part number | Identifies and decodes the plug |
| Stock number | Used for stock control |
Examples:
| Example | Meaning |
|---|---|
| DPR5EA-9 | Part number |
| 2887 | Stock number |
| R5671A-11 | Racing plug type with heat range in suffix |
| 6596 | Stock number for racing plug |
When comparing plugs, start with the full part number every time.
Why Spark Plug Gap Still Matters?
Even when the part number looks right, the gap should still be confirmed before installation. One entry in the chart shows this clearly:
| Part No. | Gap Note |
|---|---|
| BR2-LM | .020 |
That is a useful reminder that a cross-reference does not automatically mean the plug is ready to fit.
A quick pre-install check should include:
- Exact plug number
- Machine application
- Gap setting
- Thread reach and seat type
- Electrode condition
If weak cranking or unstable running is already part of the complaint, checking alternators, starters, and sensor parts during the same visit can prevent a second round of troubleshooting.
NGK Spark Plug Color Chart for Diagnosis
Plug color can tell a lot about what the engine has been doing under real work conditions. On off-road machinery, long idle time, dust, heat, and uneven load often leave clear signs on the plug.
Quick Color Reference
| Plug Appearance | Likely Condition | What To Check |
|---|---|---|
| Light tan or gray | Normal burn | Routine service |
| Dry black soot | Rich running or weak spark | Air filters, ignition coils, fuel mix |
| Wet black | Oil fouling or poor combustion | Oil control, compression |
| White blistered tip | Excess heat or lean burn | Cooling, air leak, heat range |
| Ash deposits | Oil use or additive deposits | Oil interval, valve guides |
| One plug darker than others | Cylinder-specific issue | Injector flow, valve sealing |
Plug reading works best after normal working conditions, not after a short idle and shutdown.
Common Spark Plug Fouling Patterns
Several patterns show up often on working equipment:
- Dry soot after long idle periods
- White tips after heavy work in hot weather
- Uneven deposits when one cylinder has a separate issue
In these cases, the next step may involve fuel system parts or temperature sensors, not just another plug.
Where A Spark Plug Chart Helps And Fails?
A spark plug chart is useful because many fleets include more than one engine type. Along with larger machines, there may be generators, cutters, pumps, and compact gas-powered units in the same work area.
Typical covered applications include:
- Trucks and utility vehicles
- Motorcycles and ATVs
- Marine engines
- Snowmobiles
- Lawnmowers
- Chainsaws
- Generators
- Power equipment
- Outdoor equipment
That wide coverage is helpful, but a chart alone usually does not show torque values, service intervals, or the reason a plug failed early. That is why a short inspection routine is worth using before placing an order.

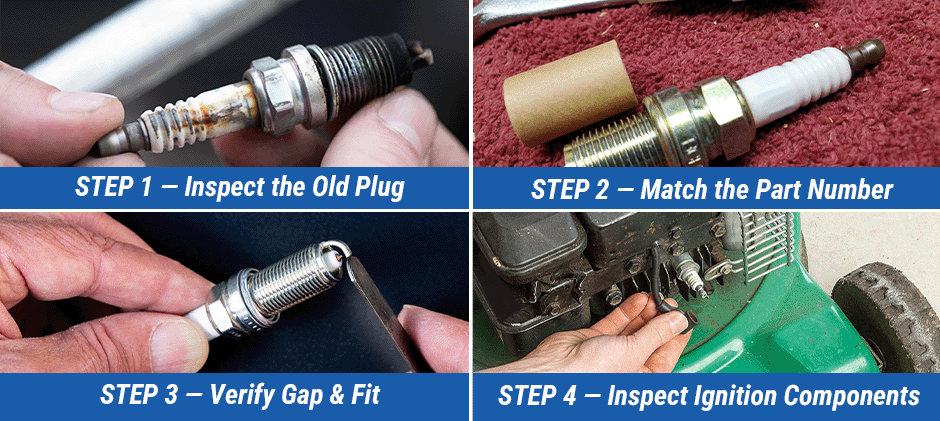

A Better Routine Before Replacing The Plug
- Check the old plug for color and deposits
- Match the full part number
- Use cross-reference carefully
- Confirm gap and fit
- Inspect spark plugs, ignition coils, and wire sets together
- Review air, fuel, and heat conditions if fouling returns quickly
This approach helps reduce repeat repairs and wasted parts.
Common Spark Plug Cross Reference Mistakes
A new plug can still be the wrong plug. Most repeat issues come from skipped checks or close-but-not-correct substitutions.
Mistakes To Avoid
- Matching by brand only
- Using stock number as a spec guide
- Assuming the same gap across similar plugs
- Ignoring thread reach or seat type
- Replacing the plug without checking the ignition side
- Reading plug color without considering duty cycle
Quick Trouble Guide
| Symptom | Possible Plug Issue | Also Check |
|---|---|---|
| Hard start | Wrong gap or fouled plug | Ignition coils, battery, fuel supply |
| Misfire under load | Wrong substitute or weak spark | Wire sets, injector flow, compression |
| Fast carbon fouling | Plug too cold or too much idle time | Air intake, fuel quality |
| Rapid electrode wear | Plug running too hot | Cooling, mixture, duty cycle |
| Same cylinder fails again | Plug not the root cause | Oil control, valve seal, coil output |
A good NGK spark plug chart helps narrow the options quickly. Better results usually come from pairing that chart with a simple system check before the new plug goes in.
Final Words
The right NGK spark plug chart helps you avoid bad substitutions, repeated fouling, and wasted service time. When the part number, gap, and plug condition are checked together, the repair is more likely to hold up under real-world conditions. For broader maintenance needs, we offer aftermarket parts at FridayParts with high-quality products, affordable prices, wide compatibility, and a large inventory for many heavy equipment brands.
