Seeing the P2509 code on a 6.7 Cummins pop up on your scanner usually means your engine control module (ECM) is experiencing an intermittent loss of power. While this might sound like a massive electrical failure that will cost a fortune, the root cause is often as simple as a weak battery or a corroded ground cable. In this guide, we will walk you through exactly what this diagnostic trouble code means, the specific symptoms you will notice, and the exact steps you need to take to diagnose and fix the issue quickly so you can get your diesel back on the road.
What Does the P2509 Code Mean on a 6.7 Cummins?
When you scan your truck and pull up this fault code, it reads “ECM/PCM Power Input Signal Intermittent”. Basically, your engine’s main computer keeps losing power for split‑second moments.
Think of the engine control module as your truck’s brain. It needs steady, consistent power to handle fuel delivery, injection timing, and all the emission controls. Modern diesel trucks run on electronic fuel injection, so even a tiny voltage dip can make this computer reset right away. Once the ECM notices its power isn’t holding steady or falls below the needed level, it saves this trouble code to alert you there’s an issue with your truck’s electrical supply.
Just because the ECM is losing power off and on doesn’t mean the computer itself is bad. More often than not, something upstream in the external power circuit is weak. This code shows up as intermittent because power never cuts out completely. The voltage just sags and fluctuates under heavy electrical loads — like cranking on a cold morning, or bouncing over rough ground that jiggles loose electrical connections.
Common Symptoms of the P2509 Code
Since this is an electrical problem, the symptoms can change a lot day‑to‑day. Your truck might drive totally fine on Monday, then flat‑out refuse to fire up on Tuesday. These are the most common warning signs for this power‑input fault:
- Check Engine Light: This is what you’ll usually see first. The light can stay on non‑stop, or pop on and off only when voltage dips under certain driving conditions.
- Intermittent or no‑start issues: You turn the key, the engine cranks and cranks but never fires. The ECM can’t finish its startup routine, so it never sends the signal to open your fuel injectors. Sometimes it’ll finally start after three or four tries once the voltage evens back out.
- Engine stalling out while driving: This one is the biggest safety risk. If your voltage sags mid‑highway drive, the computer resets right away. Fuel delivery cuts off completely with zero warning. Your truck stalls, and you end up coasting with no power steering or power brakes.
- Rough idle and weird engine behavior: You may feel the engine surge, run rough, or struggle to hold steady RPMs. Parts run by the ECM, such as the grid heater, can also stop working properly. That makes cold‑weather starting a real headache.
What Causes the P2509 Code on a 6.7 Cummins?
To track down what’s really going wrong, you’ve got to check the whole electrical circuit. Heavy‑duty diesels suck up a ton of power, so any weak spot in the system can set off this fault.
- Weak or failing batteries: Diesel trucks run dual batteries to pump out the huge cold cranking amps (CCA) needed to spin that big heavy engine. When one battery starts going bad, it drags the other one right down with it. A battery might read a healthy‑looking 12.6 volts sitting idle, but the second you crank the engine, voltage crashes and leaves the computer starved for power.
- Corroded or loose battery terminals: Corrosion creates a physical block for electrical current. Even a thin coat of that white or blue powdery gunk on the battery posts builds up resistance and pulls your voltage down. Loose clamps bouncing around from road vibration can also break the electrical connection for just a split second — and that’s all it takes to throw your P2509 code on the 6.7 Cummins.
- Bad ground connections: The ECM needs rock‑solid ground paths to both the engine block and truck frame. Over time, those factory ground straps get oxidized, rusty, or shake loose from vibration. On high‑mileage trucks, a loose engine‑block ground strap is one of the top reasons you’ll run into this exact trouble code.
- Failing Alternator: The alternator’s job is to keep the batteries charged and supply power to the vehicle while the engine is running. If the internal voltage regulator fails, the alternator might undercharge (starving the system) or overcharge (sending dangerous voltage spikes to the computer). Both scenarios will cause the computer to log a fault.
How to Diagnose and Fix the P2509 Code on a 6.7 Cummins?
If you want to fix this for good, stick to a logical diagnostic workflow. Don’t just guess and swap random parts — you’ll only waste time and cash. Always start with the easiest checks before moving onto trickier work.
Step 1: Inspect and Clean Every Battery Connection
First, disconnect the cables from both batteries. Go over the clamps and battery posts and look for corrosion, pitting or damage. Mixbaking sodaa with water to scrub off acid residue. Grab a wire brush and clean the posts until the metal shines bright. Put the cables back on and torque them down nice and tight. Don’t skip the crossover cable between the two batteries. This wire handles huge current, and hidden corrosion often builds up here.

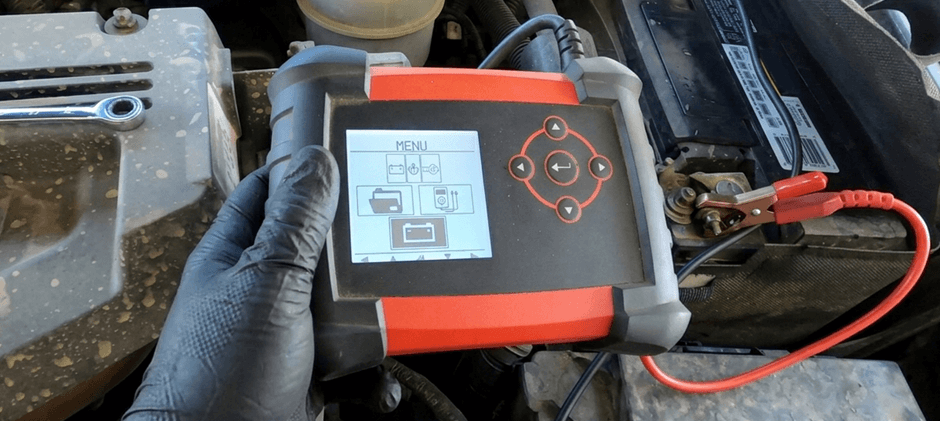

Step 2: Load‑Test Your Batteries
A regular multimeter check alone won’t cut it. You need to see how the batteries hold up under heavy draw. Take both batteries to your local auto‑parts shop for a load test. If one fails the test, replace both batteries together. Running one new battery paired with an old one makes the new unit work overtime, and it will die way sooner.
Step 3: Check All Ground Straps
Trace your negative battery cables to their mounting points on the engine block and frame. Unbolt those ground connections, scrub the metal surfaces clean with sandpaper or a wire brush, then bolt everything back down firmly. Adding an extra heavy‑gauge ground strap from the battery over to the chassis works really well to stop future voltage drops.
Step 4: Test Alternator Output
Fire up the engine, flip on your headlights, radio and heater fan to put load on the electrical system. Read battery voltage using your multimeter. A good charging system should sit between 13.5 and 14.5 volts. If your reading drops below 13.5 volts, the alternator can’t keep up with power demands and needs replacing.
“Always check alternator output under heavy electrical load. An alternator might look perfectly fine at idle, but fall apart once you switch on the grid heater and headlights.”
Step 5: Look Over Fuses and Relays
Pop open the fuse box and find the fuses and relays that feed the engine computer. Pull them out and check the metal pins for burn spots or corrosion. Try swapping the ECM relay with another spare non‑critical relay such as your horn relay to see whether the issue goes away. If the relay feels surprisingly hot after the engine has been running, it’s got too much internal resistance and you need to replace it.
Can You Drive with a P2509 Code on a 6.7 Cummins?
We really don’t recommend driving your truck once this code pops up. Even if it seems to run okay for a little while, this random intermittent electrical problem can get you into serious trouble. If the ECM cuts out while you’re cruising down the highway, the engine dies right away. You’ll lose power steering and power brakes, and that big, heavy truck becomes really hard to steer and stop safely. On top of that, all those constant voltage spikes and dips can permanently wreck your engine computer.
What could’ve been a quick, cheap fix for grimy battery terminals can quickly turn into a huge repair bill for a brand‑new ECM. Play it safe: park the truck and work through your electrical diagnosis before you use it for regular driving or heavy towing.
Final Thoughts
Dealing with the P2509 code on your 6.7 Cummins can be really frustrating, but it’s almost never a dead ECM. Nine times out of ten, the problem comes down to a weak battery, corroded terminals, or a loose ground strap starving the system for voltage. Take time to clean up your connections, load‑test both batteries, and double‑check your alternator output, and you can get this intermittent power issue sorted out to get your diesel running solid again.
