A slipping or snapped deck belt can instantly halt your weekend mow. But did you know that routing it incorrectly can actually destroy your spindles and cost you hundreds in repairs? At its core, a Scag deck belt is the vital link that transfers power directly from your engine to the mower blades, allowing them to spin and cut. To keep your machine running smoothly and prevent premature wear, having the exact routing path and tension is critical. In this guide, we’ll walk you through the Scag deck belt diagram for Turf Tiger and Tiger Cat, so you can avoid costly mistakes and get back to a perfect cut.
What Is A Scag Deck Belt?
The deck belt on a Scag is an essential part of the mower’s cutting system. It works to deliver the power from the engine to the mower blades, enabling them to spin and cut grass efficiently. Once the deck belt fails, the blades won’t operate correctly, leading to poor cutting performance or even causing damage to your equipment entirely.
See Related: Deck Belt vs Drive Belt, What Is the Difference?
Understanding Your Scag Deck Belt Diagram
The Scag deck belt diagram helps you understand how your mower operates. The belt schema shows the belt around pulleys, idlers and the blades themselves. It illustrates how the belt loops through a series of components, thus maintaining tension and ensuring smooth power transfer from the engine to the blades.
Key Components on Scag Deck Belt Diagram
The deck belt diagram usually includes several critical components:
- Belt Path: The diagram shows the exact route the belt takes through the mower deck, ensuring proper installation and alignment.
- Pulleys: The pulleys are what guide the belt and maintain tension.
- Idler Arms: These components help maintain tension on the belt, ensuring it stays in place.
- Belt Tensioners: These adjust the tension of the belt to prevent slippage and excessive wear.
Scag Deck Belt Diagram & Pulley Heights
Correct deck belt routing is vital for smooth operation. If the belt is routed incorrectly, it is likely to cause slippage, premature wear or severe damage to the mower. Below are diagrams for Scag Turf Tiger and Scag Tiger Cat mowers for you.

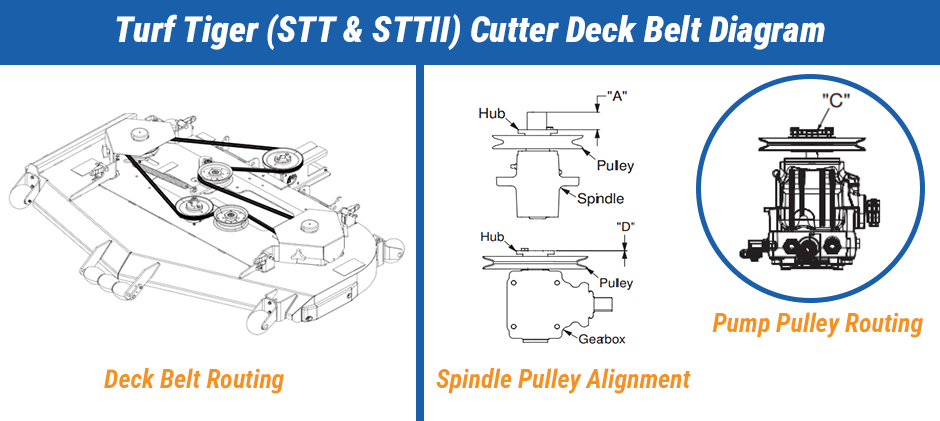

Turf Tiger Deck Belt
| Deck Belt Diagram | Deck Size | Ref | Right Spindle | Center Spindle | Left Spindle |
|---|---|---|---|---|---|
| Scag Turf Tiger | 52” | “A” | 1.19” | 1.19” | 1.19” |
| Scag Turf Tiger | 61” | “A” | 1.19” | 1.19” | 1.19” |
| Scag Turf Tiger | 72” | “A” | 1.13” | 1.13” | 1.13” |
| Scag Turf Tiger | Gearbox | “D” | 0.00” | – | – |
| Pump Pulley | – | Ref | Left Pump | Right Pump | – |
| – | – | “C” | “0.00” | “0.00” | – |

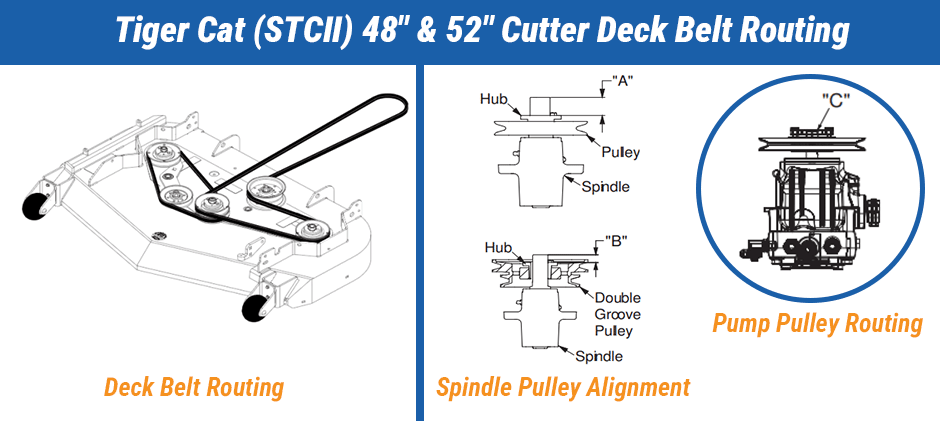

Tiger Cat 48″ & 52” Deck Belt
| Deck Belt Diagram | Deck Size | Ref | Right Spindle | Center Spindle | Left Spindle |
|---|---|---|---|---|---|
| Scag Tiger Cat 48″ | 48” | “A” | 1.25” | – | 0.5” |
| Scag Tiger Cat 48″ | 48” | “B” | – | 0.5” | – |
| Scag Tiger Cat 52” | 52” | “A” | 1.20” | – | 0.5” |
| -Scag Tiger Cat 52” | 52” | “B” | – | 0.5” | – |
| Pump Pulley | – | “B” | Left Pump | Right Pump | – |
| – | – | “B” | 0.125” | 0.125” | – |

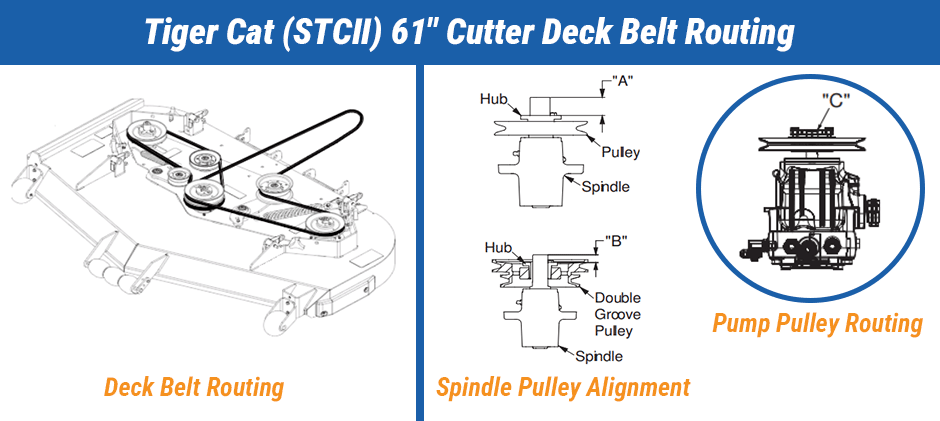

Tiger Cat 61” Deck Belt
| Deck Belt Diagram | Deck Size | Ref | Right Spindle | Center Spindle | Left Spindle |
|---|---|---|---|---|---|
| Scag Tiger Cat 61” | 61” | “A” | 1.20” | – | 0.50” |
| Scag Tiger Cat 61” | 61” | “B” | – | 0.50” | – |
| Pump Pulley | – | Ref | Left Pump | Right Pump | – |
| – | – | “C” | 0.125” | 0.125” | – |
It’s essential to understand the deck belt routing through the symbols and labels used. First, you should identify the belt in the diagram and follow its path to understand how it interacts with other components. Secondly, you need to note the position of the pulleys and how the belt interacts with them to ensure proper alignment and tension. Next, check the tensioner to make sure the tensioners are correctly positioned to maintain proper belt tension and prevent slippage. Lastly, make sure the idler arms are correctly aligned to support the belt and maintain its position.
How to Maintain Your Scag Deck Belt?
Regular maintenance ensures the smooth operation and extended life of your Scag mower. Here are some tips for you to follow:
- Regular Inspections: Check the belt and pulleys regularly for signs of wear or damage
- Proper Tension: Make sure the belt is properly tensioned to prevent slippage and excessive wear
- Cleanliness: Keep the mower deck clean and free of debris to prevent damage to the belt and pulleys
- Lubrication: Lubricate the pulleys and tensioners as recommended by the manufacturer to extend the life of these components and ensure smooth operation.
Wrapping up
Understanding the Scag mower deck belt is essential for maintaining and troubleshooting your mower. By following the diagrams, guidelines and tips in this article, you can ensure that your Scag mower operates in a smooth and efficient way. Always refer to the manufacturer’s instructions for specific details and recommendations. At FridayParts, we offer a vast selection of quality replacement parts for your Scag mowers. Explore now and enjoy your smooth cutting.
