When sourcing the right parts for maintaining or upgrading your Bobcat T770 compact track loader, or buying or reselling your rig, it’s essential to know its key features and specifications. The Bobcat T770 specs may include general specifications, operating specifications, dimensions and other key systems or components, such as the engine system, hydraulic system, and undercarriage system. Let’s dive into the features and specs and find the right replacement parts together.

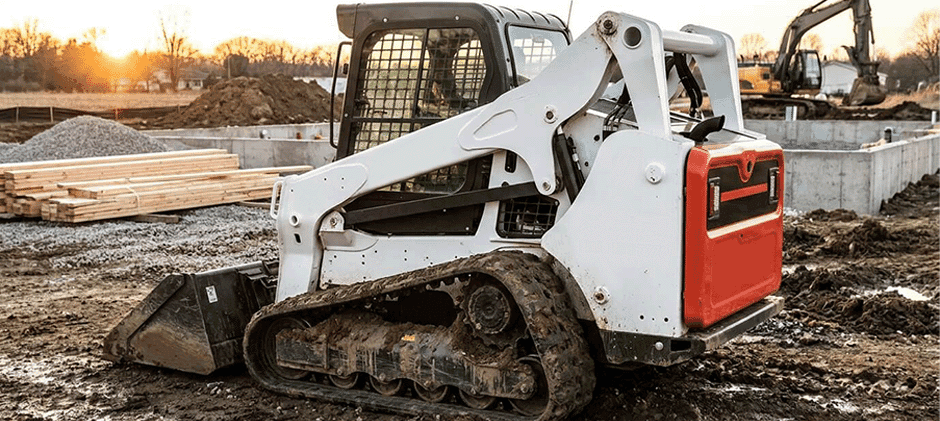

What Is A Bobcat T770?
Bobcat T770 is one of the most powerful models of the T-series compact track loader. It is specifically designed for construction, landscaping, agriculture and material handling applications. It features a vertical lift path, high breakout force and strong hydraulic performance for operating buckets, augers, trenchers, grapples and other attachments, making it a popular choice among people who seek reliable compact track loaders. Known for its compact footprint, low ground pressure and tracked undercarriage, it can handle the demanding tasks on soft, uneven or muddy terrain with great traction and stability. The T770 is part of Bobcat’s compact equipment lineup and widely used for grading and loading, site preparation and snow removal in confined areas where great maneuverability and lifting capacity are required.
Bobcat T770 Specs
Understanding the specs of your Bobcat T770 compact track loader is essential for part sourcing and equipment resales. The tables below show the specifications of the Bobcat T770 compact track loader, including general specifications, operating specifications, engine, hydraulic systems, loader, dimensions and undercarriage.
General Specifications
| Aspects | Values |
|---|---|
| Engine Power | 92.00 hp (68.61 kW) — Starting 2019 Model Year |
| Narrow Track Operating Width IN. (CM)Roller or Torsion Suspension | NA — Starting 2022 Model Year |
| OPERATING LOAD | 3,475.00 lbs (1,576.24 kg) — Starting 2019 Model Year |
| Operating Width | 80.00 in (203.20 cm) — Starting 2026 Model Year |
| Rated Operating Capacity 50% | 3,475.00 lbs (1,576.24 kg) — Starting 2020 Model Year |
| Rated Operating Capacity LBS (KG) 50% | 3,475 (1576) — Starting 2026 Model Year |
| Wide Track Operating Width | 78.00 in (198.12 cm) — Starting 2022 Model Year |
| Wide Track Operating Width IN. (CM)Roller or Torsion Suspension | 78 (198.1) — Starting 2022 Model Year |
Operating Specifications
| Aspects | Values |
|---|---|
| Fuel Capacity | 27.20 gal (102.95 l) |
| Max Speed – high range | 10.70 mph (17.22 kph) |
| Max Speed – low range | 6.60 mph (10.62 kph) |
| Operating Weight | 10,327.00 lbs (4,684.25 kg) |
Engine, Hydraulics, Loaders & Undercarriage
|
|
|---|---|
| Aspiration | Turbocharged |
| Emission Tier Level | Tier 4 |
| Fuel | Diesel |
| Gross Power | 92.00 hp (68.61 kW) |
| Net Power | 92.00 hp (68.61 kW) |
|
|
| Pump Flow | 23.00 gpm (87.06 lpm) |
| Relief Valve Pressure | 3500 psi |
|
|
| Bucket Width | 80.00 in (203.20 cm) |
| Operating Load | 3,475.00 lbs (1,576.24 kg) |
| Operating Width | 80.00 in (203.20 cm) |
| Tipping Angle | 9929 degrees |
|
|
| Ground Pressure | 4.2 psi |
| Length of Track on Ground | 5.40 ft (1.65 m) |
| Width of Track | 17.70 in (44.96 cm) |
Dimensions
| Aspects | Values |
|---|---|
| Height – Top of Cab | 6.80 ft (2.07 m) |
| Length – with Bucket | 11.80 ft (3.60 m) |
| Length – without Bucket | 9.50 ft (2.90 m) |
| Reach at Max Lift and Dump | 2.90 ft (0.88 m) |
| Turning Radius from Center – machine rear | 88.00 in (223.52 cm) |
| Width Over Tracks | 6.60 ft (2.01 m) |
Bobcat T770 Key Features
The Bobcat T770 is built for demanding work, with key features such as breakout performance, two-speed travel, standard joystick controls, a non-DPF engine, roller suspension, and enhanced rear visibility.
- High flow hydraulics: High-flow option delivers more hydraulic output for expanded attachment versatility, including trenchers, stump grinders, drum mulchers and more.
- Powerful breakout forces: The T770 delivers strong breakout performance to dig into dense material, break through tough ground and keep loading cycles moving efficiently.
- Two-speed travel: This allows you to spend less time traveling across the jobsite or between jobs with this option and get your job done sooner.
- Non-DPF engine: Engines meet emissions requirements without a diesel particulate filter (DPF), eliminating the need for time-consuming regeneration.
- Standard or selectable joystick control: You can select between classic hand and foot controls or selectable joystick controls based on your preference and job needs.
- Roller suspension undercarriage: Optional roller suspension gives the T770 an added advantage on rough ground, ensuring ride quality and operator comfort through long hours of demanding work.
- Deluxe display with rearview camera integration: This display gives operators a clear, easy-to-use view of key machine information, while rear-view camera integration adds jobsite awareness when maneuvering on the jobsite.

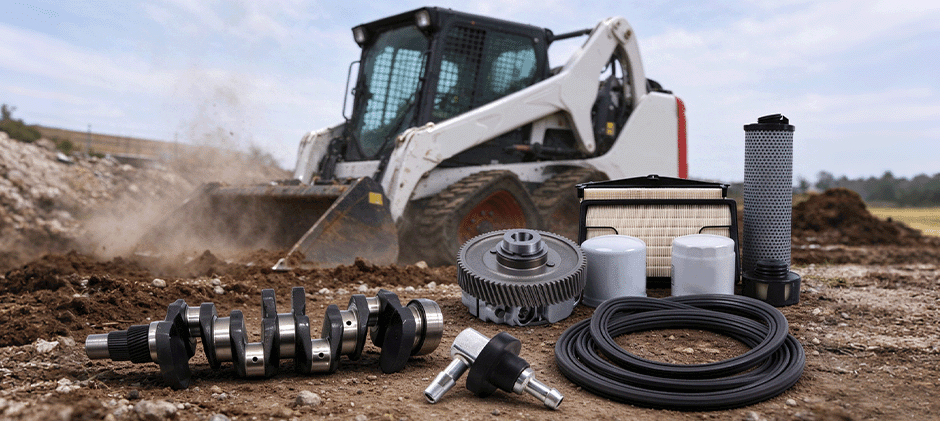

Quality Replacement Parts for Bobcat T770
Even a robust loader can wear out in its parts and components during long-term use. The table below presents some wear parts for your Bobcat T770 compact track loader.
Wrapping up
Understanding the Bobcat T770 specs and key features is essential for buying the correct replacement parts for your maintenance and repair. At FridayParts, we provide a vast selection of quality replacement parts for Bobcat compact track loaders. Explore our extensive inventory catalog today and enjoy your new rigs later.
