Understanding the Tecumseh throttle linkage diagram is essential to keep your Tecumseh small engines running at its optimal performance. In this guide, we’ll dive into the Tecumseh carb throttle linkage diagram and how to use it for carburetor maintenance and repairs.
What Is Tecumseh Carb Throttle Linkage?
A throttle linkage on a Tecumseh carburetor is a mechanical assembly that connects the throttle control lever to the carburetor itself. This linkage setup helps control the amount of air-fuel mixture entering the Tecumseh small engines by adjusting the throttle plate inside the carburetor. When you move the throttle control lever, the linkage translates this motion into the carburetor, thus regulating engine speed. The design of the throttle linkage is fairly straightforward but highly precise. So, any issues in the carb throttle linkage can have a severe impact on your engine performance.
Key Components of Tecumseh Carb Throttle Linkage
Before looking at the diagram for Tecumseh throttle linkage, it’s better to understand these key components
- Throttle Lever: This user-interface part is often connected to a control cable or handle
- Linkage Rods: These rods connect the throttle lever to the carburetor arm
- Throttle Arm: Attached directly to the carburetor, the throttle arm moves to open or close the throttle plate
- Return Spring: It ensures the throttle returns to the idle position when released
- Clips and Fasteners: These components work to secure the linkage components in place and prevent disconnections
Tecumseh Throttle Linkage Diagram Explained
Understanding the throttle linkage diagram is essential for the smooth operation of your mowers. Here is a Tecumseh throttle linkage diagram for you.
This diagram is suitable for the following Tecumseh engine models:
- TVS90
- TVS100
- TVS115
- TVS120
- OVRM
*NOTE: This diagram was edited to help friends with similar difficulties. FridayParts strives to provide these instructions and diagrams based on our best knowledge, but disclaims responsibility for any damage or injury. Always follow standard safety precautions. It’s recommended to find YouTube video clips to help better understand the diagram and make this practice yourselves.
Now, let’s get started!

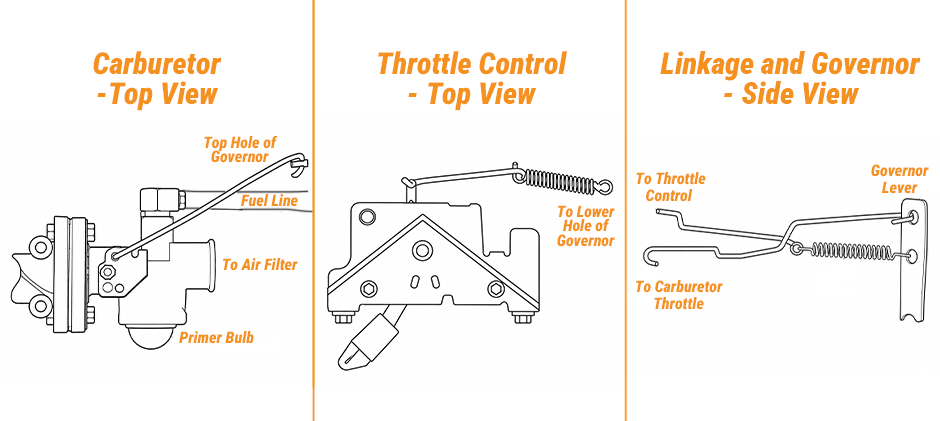

Carburetor, Top View
As indicated in the diagram above, it shows the carburetor from the top. A wire connects to the “Top Hole of the Governor” and the throttle. Other visible components include the “Fuel Line”, “To Air Filter” and “Primer Bulb”. You can follow the steps below:
- Connect the wire without the spring to the throttle on one end
- Connect the top hole of the governor lever on the other end
- The bend in this wire should face the carburetor
- The longer end of the wire extends to the governor lever
Throttle Control, Top View
This view illustrates the throttle control linkage from the top. You can see components like “To Air Filter” and “Primer Bulb”. Do the following for correct connection:
- Connect the spring to the lower hole of the governor
- It should cross over the solid wire, positioned below
Linkage and Governor, Side View
The side view above delineates the linkage connected to the governor lever. You can see components including “To Throttle Control”, “To Carburetor Throttle” and “Governor Lever”. Follow the instructions for correct connection:
- Connect the linkage to the governor lever
- The throttle control linkage should run behind the solid wire going from the governor to the carburetor throttle

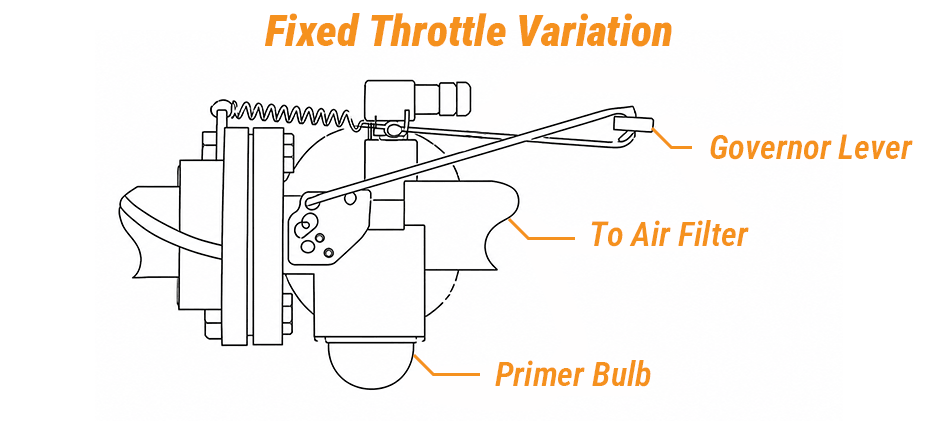

Fixed Throttle Variation
The diagram is a fixed throttle setup of a slightly different linkage setup. You can see components like “Governor Lever”, “To Air Filter” and “Primer Bulb”.
Unlike normal setups, this configuration features a fixed throttle. That means there’s no throttle control cable. Instead, it uses a tab that is bolted to the intake manifold to hold the throttle open. The solid wire still runs from the carburetor throttle to the top hole of the governor. You should connect the spring to a hole in this tab and then to the lower hole of the governor lever, passing below the solid wire for correct connection.
Tecumseh Carb Throttle Linkage Maintenance and Repairs
Regular maintenance can extend the life of your Tecumseh throttle linkage and improve the reliability of your Tecumseh small engines.

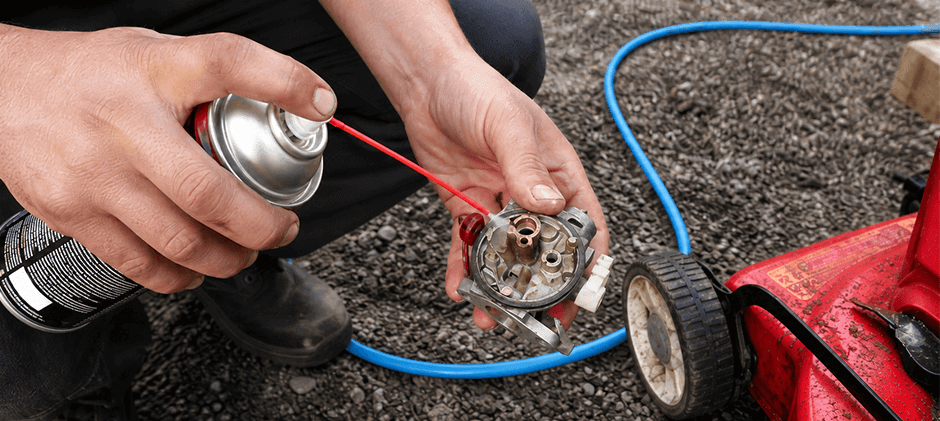

Cleaning and Lubrication
This is one of the simplest yet most effective ways of throttle linkage maintenance. You can use a carburetor cleaner or a mild solvent to remove dirt, grease and corrosion. Then, apply a light lubricant like a silicone spray or light machine oil to the pivot points and rods to ensure smooth movement.
Visual Inspection for Wear and Damage
In this regard, you should regularly examine the linkage rods, springs and clips for signs of wear, rust or damage and replace any throttle linkage components that show signs. It’s recommended to use OEM parts or select from reliable aftermarket suppliers to ensure proper fit and function.
Throttle Linkage Adjustment
It’s often the case that throttle linkage issues arise from misadjusted linkages. A proper throttle linkage adjustment ensures the throttle plate opens fully at full throttle and closes completely at idle. This process involves adjusting the length of the linkage rods or repositioning clips.
Replacing Broken Springs or Clips
If you notice the return spring or clips are broken or missing, replacements are an inexpensive solution and straightforward to install. You should make sure the spring has enough tension to return the throttle smoothly without sticking.
Final Thoughts
Tecumseh carb throttle linkage plays an essential role in the operation of your Tecumseh small engines. It’s closely related to your lawn mowers, snow blowers and other outdoor power equipment. If you have machines running on Tecumseh engines, understanding the Tecumseh throttle linkage diagram and how to maintain the carburetor throttle linkage can save you time and frustration. Follow the guidelines in this guide and source quality carburetors and outdoor equipment replacement parts to keep your small engine machines running smoothly.
