A lawn mower carburetor leaking gas is a common problem. It wastes fuel and usually means something inside the carburetor needs attention. In this guide, we’ll explain the most common causes and show you how to fix the problem step by step.
Why Is My Lawn Mower Carburetor Leaking Gas?
If you see gas dripping from your carburetor, that means fuel is leaking where it shouldn’t be. A carburetor mixes air and fuel in the right ratio to feed the engine. Any leak will mess up this balance. Below are the most common causes of carburetor gas leaks, ordered from most to least frequent.
1. Stuck Float or Broken Needle Valve
The carburetor has a small fuel bowl that holds gasoline. Inside the bowl is a float that sits on top of the fuel. When the fuel level rises, the float goes up and pushes a small rubber-tipped needle valve closed, stopping more gas from flowing into the bowl.
Tiny dirt particles from old fuel can jam the needle valve open, or its rubber tip can wear out. Either way, the valve can’t seal properly, so too much gas flows into the bowl and spills out. Also, if the float has a tiny hole, it will fill with gas and sink. It can’t close the valve anymore, which also causes overflow and leaking.
2. Worn or Cracked Carburetor Bowl Gasket
A rubber gasket or O-ring seals the fuel bowl to the main carburetor body. Over time, gas and outdoor conditions make this rubber dry, brittle and cracked. It can also get squished or fitted wrong when you reinstall the bowl. Once the seal breaks, gas leaks out from the seam between the metal bowl and the carburetor.
3. Loose Bowl Bolt
Most carburetor bowls are fixed by one bolt at the bottom, which also holds the main fuel jet. Engine vibration can loosen this bolt, letting gas seep out around the seal. In most cases, just tightening the bolt will fix the leak.
4. Old or Cracked Fuel Lines
The rubber or plastic line that carries gas from the tank to the carburetor wears out over time. Check the whole line for cracks, hard brittle spots or soft damaged areas. The leak may not come from the carburetor itself, but from the line connection. The small hose clamp can also lose tension and cause a slow gas drip.
5. Bad Anti-Backfire Solenoid Seal
Most modern lawn mower carburetors have an anti-backfire solenoid at the bottom of the fuel bowl (it has a wire attached to it). This part relies on a small seal or O-ring. If the seal breaks or the solenoid is loose, gas will drip from the very bottom of the carburetor.
How To Fix a Leaking Carburetor?
Easy-to-follow leak-fixing process. You’ll just need basic hand tools, carburetor cleaner, and possibly replacement parts like a new gasket or needle valve.
Step 1: Stay safe first
Unplug the spark plug wire so the engine can’t start by accident. If your mower has a battery, disconnect the negative cable. Always work somewhere well-ventilated, and stay away from flames or anything that can spark.
Step 2: Do a visual check
Find exactly where the gas is leaking. Check if it’s the fuel line, the carb bowl seam, or the bottom bolt. Look closely for cracks in the fuel line. A lot of the time, you just need to tighten a loose clamp or bolt to fix the leak.
Step 3: Check if gas got into your engine oil
If the needle valve gets stuck open, gas will overflow the carburetor and can leak past the piston rings into the engine oil. Pull out your oil dipstick and take a sniff. If it smells strongly like gasoline, your oil is contaminated.
Gas ruins your oil—it makes it too thin, kills the engine’s lubrication, and can destroy your whole engine. If you find gas in the oil, you have to change the oil after fixing the carb leak, before starting the engine again.
Step 4: Take off and check the carburetor bowl
Put a small container under the carburetor to catch leftover gas. Loosen the bottom bolt and carefully take the bowl off. Check the rubber gasket. If it’s cracked, flat, or hard and brittle, replace it. These gaskets are cheap and one of the most common leak causes.
Step 5: Check and clean the float and needle valve
Now that the bowl is off, you’ll see the float held by a small metal pin. Push the pin out gently to take the float off, and the needle valve will usually come out with it.
- Check the needle valve. Look at its rubber tip — it should be smooth and evenly shaped. If it’s worn, dented, or misshapen, replace it right away.
- Clean everything thoroughly. Spray carburetor cleaner on the needle valve and the small brass hole it sits in. Use a soft toothbrush to scrub off dirt and gunk. Do not use metal tools here, they’ll scratch the surface and break the seal.
- Check the float. Shake it lightly next to your ear. If you hear liquid sloshing inside, the float is leaking and needs to be swapped out. It won’t function properly once it’s filled with fuel.
Step 6: Put it back together and test
After cleaning and replacing any bad parts, reassemble the carburetor carefully. Make sure the bowl gasket sits perfectly in place. Reattach the bowl and tighten the bolt firm, but don’t over-tighten it.
Reconnect the fuel line and turn on the fuel valve if your mower has one. Wait a few minutes, then check closely for any new leaks. Only reconnect the spark plug wire once you’re sure there’s no dripping.

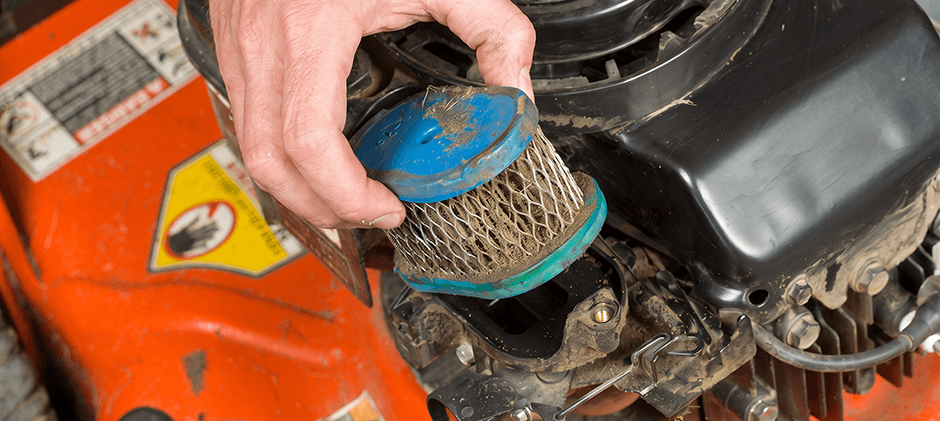

Why Is Gas Leaking From the Air Filter?
If you find gasoline inside your air filter housing, it may seem confusing, but it is almost always a direct result of the same issue: an overflowing carburetor.
When the needle valve fails to stop the flow of fuel, the carburetor bowl overfills. The excess gasoline has to go somewhere. It will travel up through the main jet and the carburetor’s throat—the very passage where air is supposed to be drawn in. From there, it flows directly into the air filter housing, soaking the filter and often dripping out.
In some cases, you may also see a black, oily liquid. This happens when the crankcase is so full of a gas-and-oil mixture that it gets pushed out through the crankcase breather tube. This tube vents pressure from the engine block directly into the air filter housing so the fumes can be burned by the engine. When oily gas comes out, it’s a sure sign your oil is severely contaminated.
How to Prevent Carburetor Leaking Again?
After you fix the leak, you can do a few simple things to keep it from coming back. Good routine maintenance is all you need.
- Use fresh, treated gas: Old gas turns sticky and builds up gunk inside the carburetor. This clogs small holes and jams the needle valve. Only use gas that’s less than 30 days old, or add a good fuel stabilizer to your gas.
- Dry out the carburetor before storage: If you’re storing your mower for over a month, don’t leave gas sitting in it. Just close the fuel valve and let the engine run until it sputters and dies. This empties the carb bowl so old fuel doesn’t harden and cause issues.
- Add a fuel shut-off valve (if you don’t have one): It’s a cheap, simple upgrade. This valve lets you fully cut gas flow to the carburetor when the mower sits unused, which prevents overflow and leaks.
- Clean the carburetor regularly: Don’t wait for leaks to happen. Clean your carburetor every one or two years as basic upkeep, and you’ll avoid most leak issues entirely.
Final Thoughts
Gas leaking from your lawn mower carburetor is a big safety concern, but it’s almost always from small, easy-to-replace parts like a stuck needle valve or worn gasket. Just follow the steps above, and you can figure out the leak and fix it yourself without trouble.
