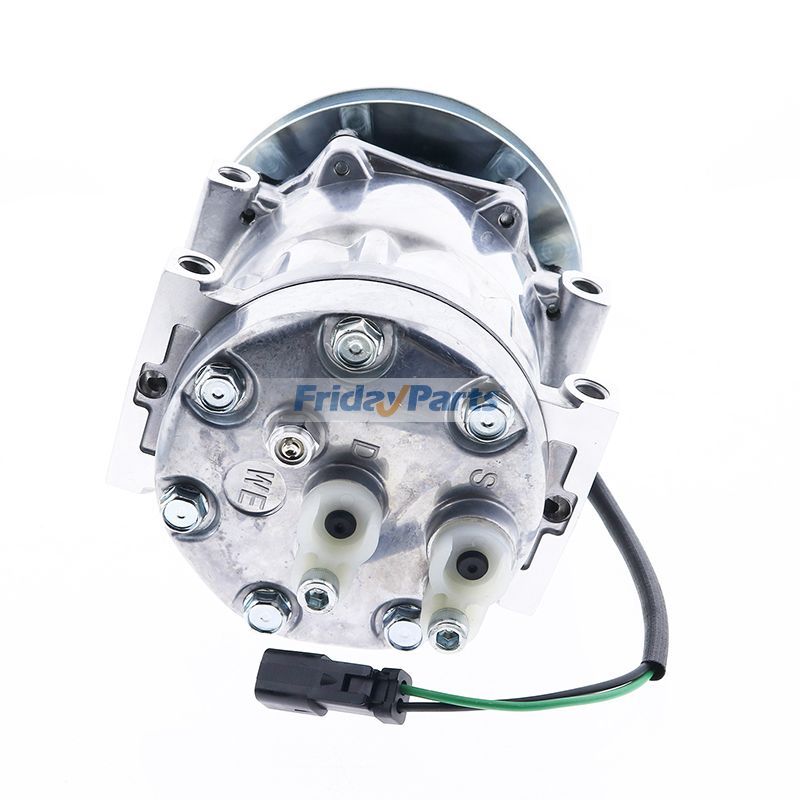

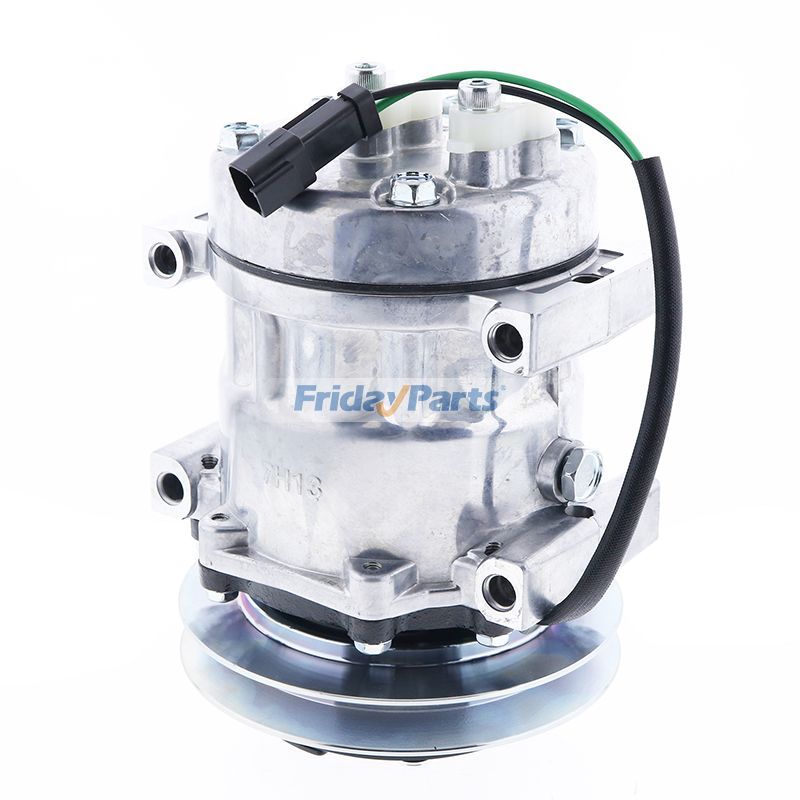

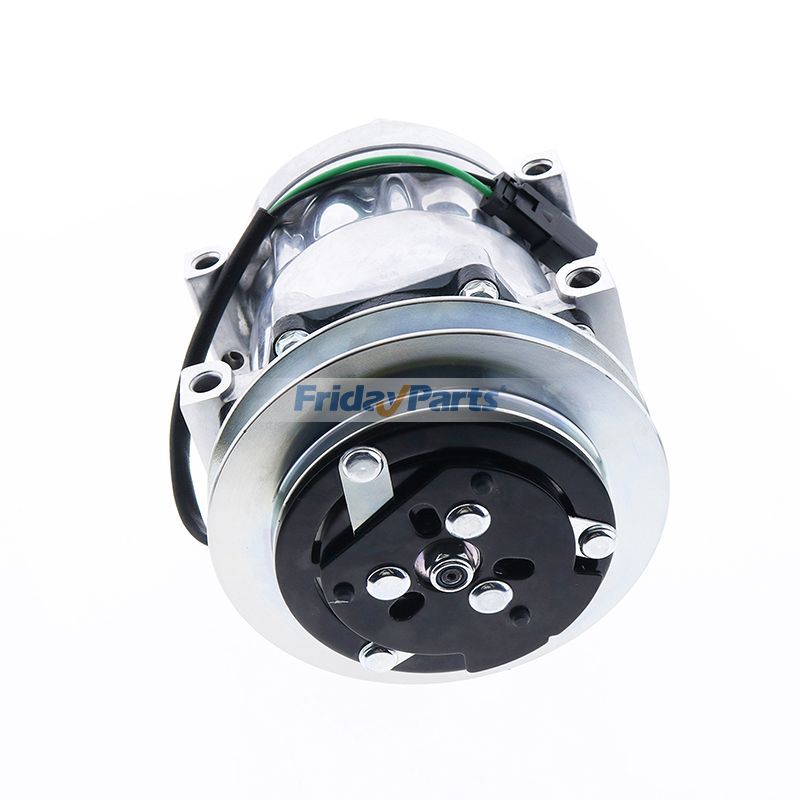

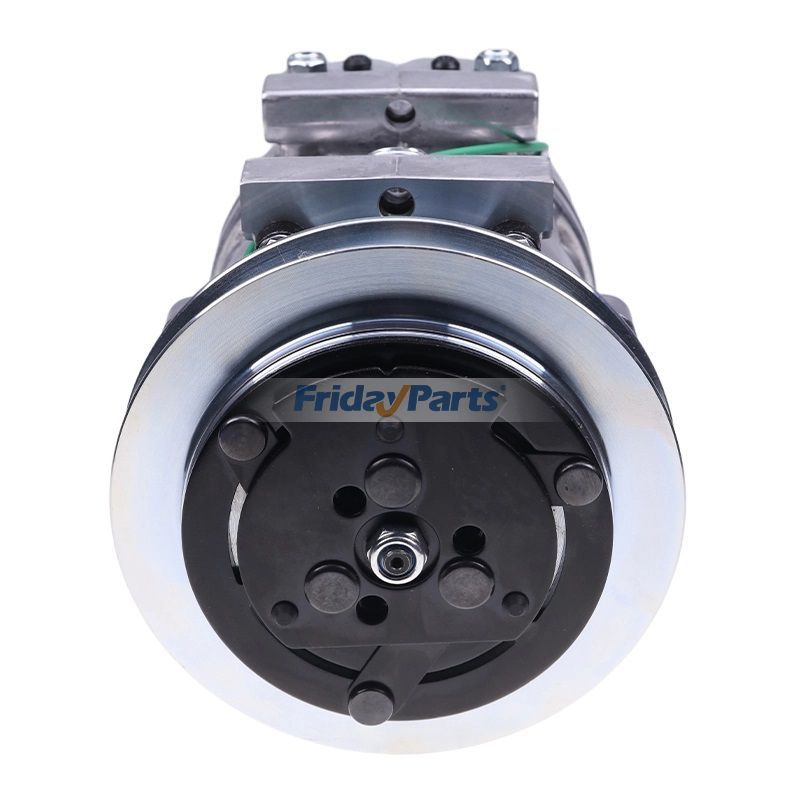

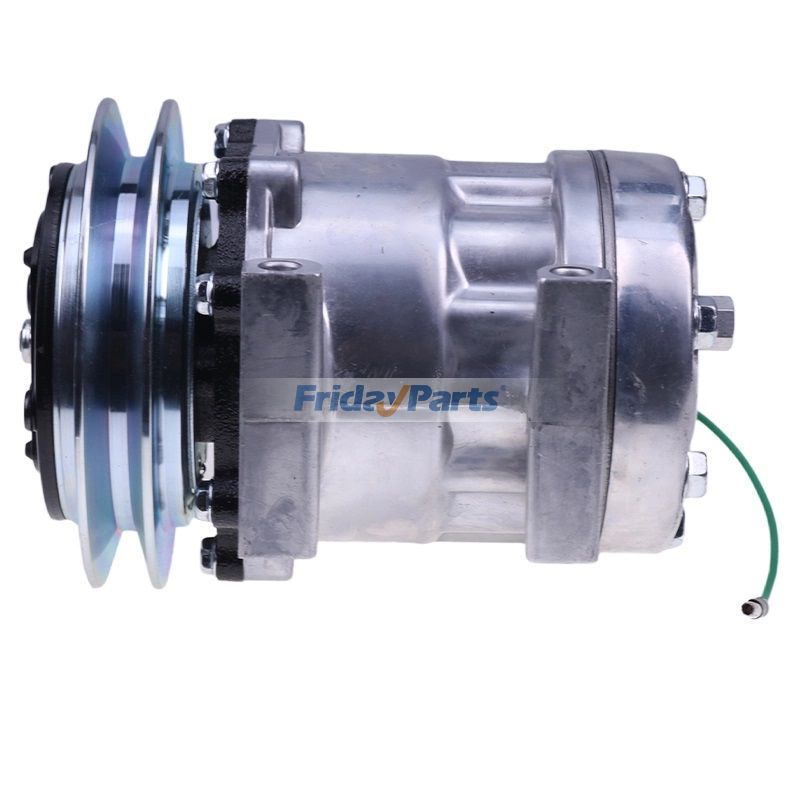

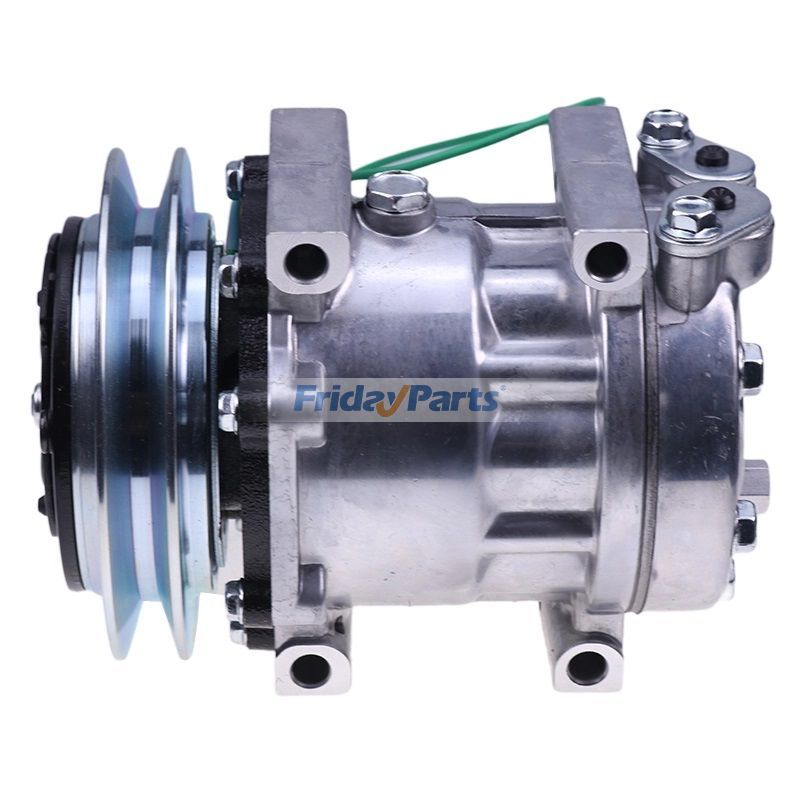

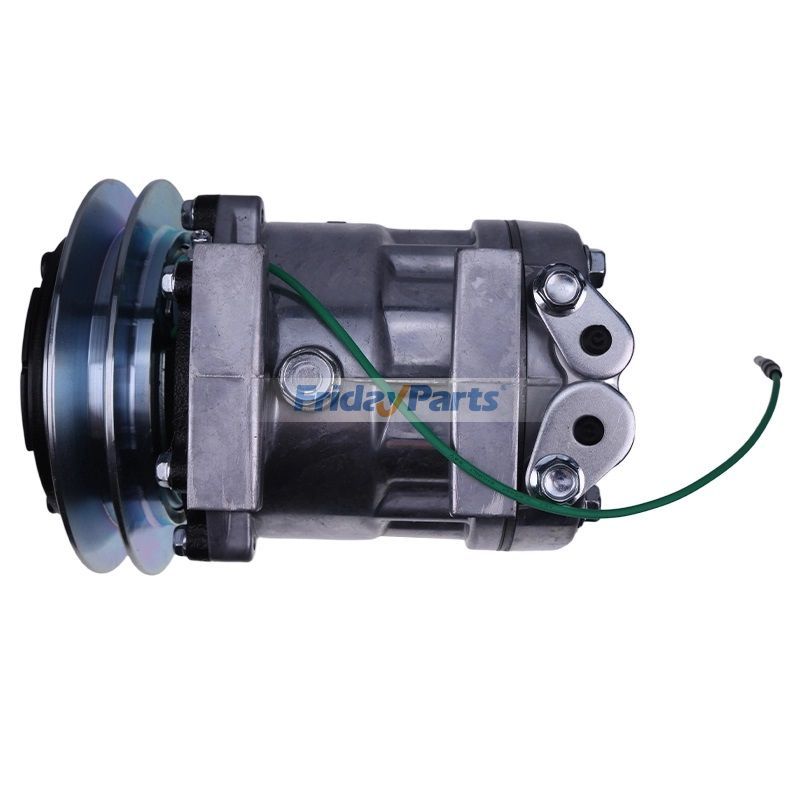

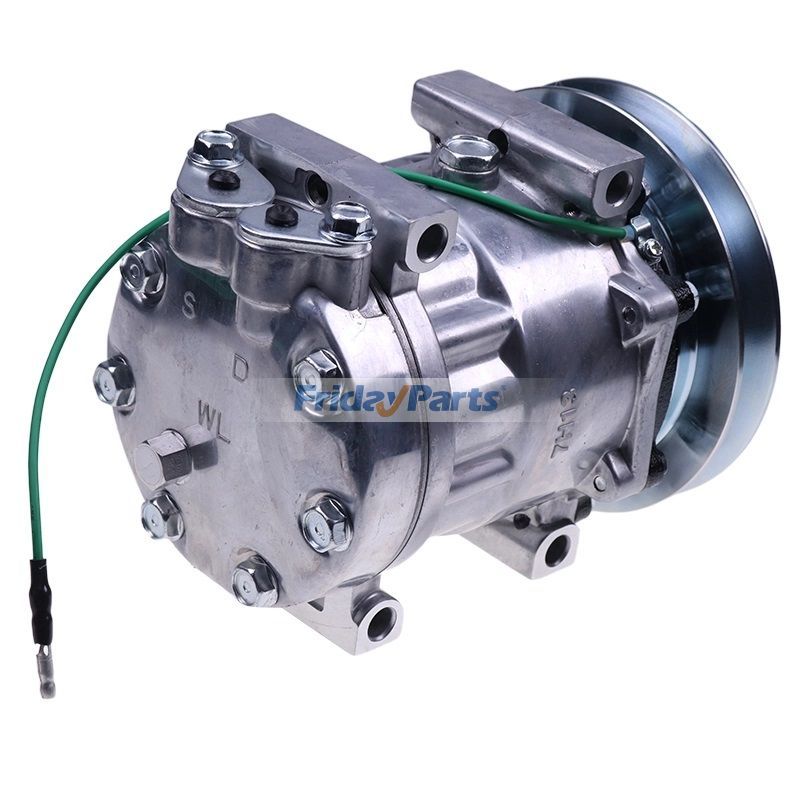

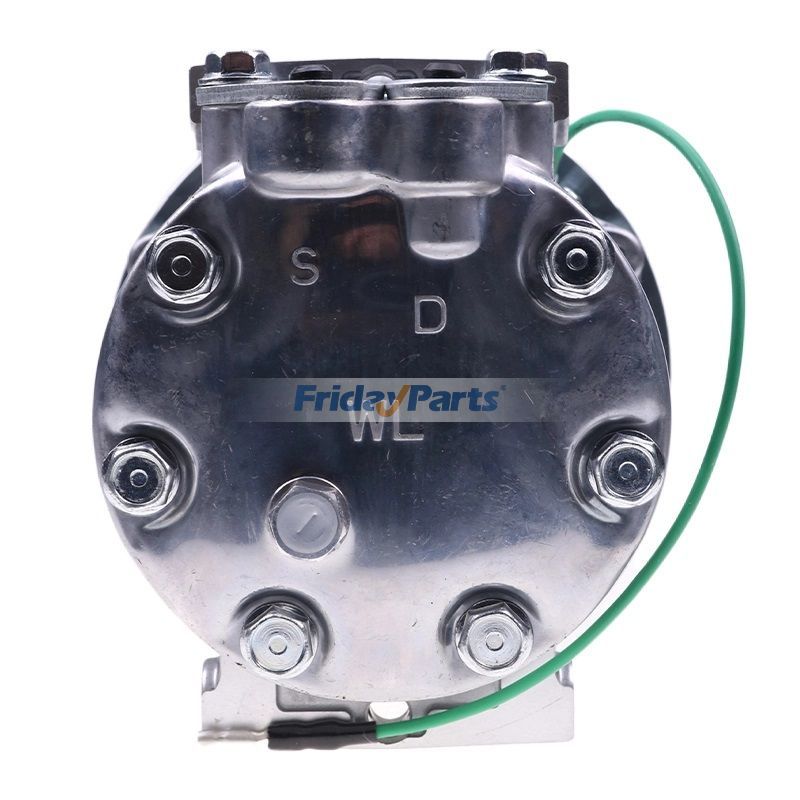

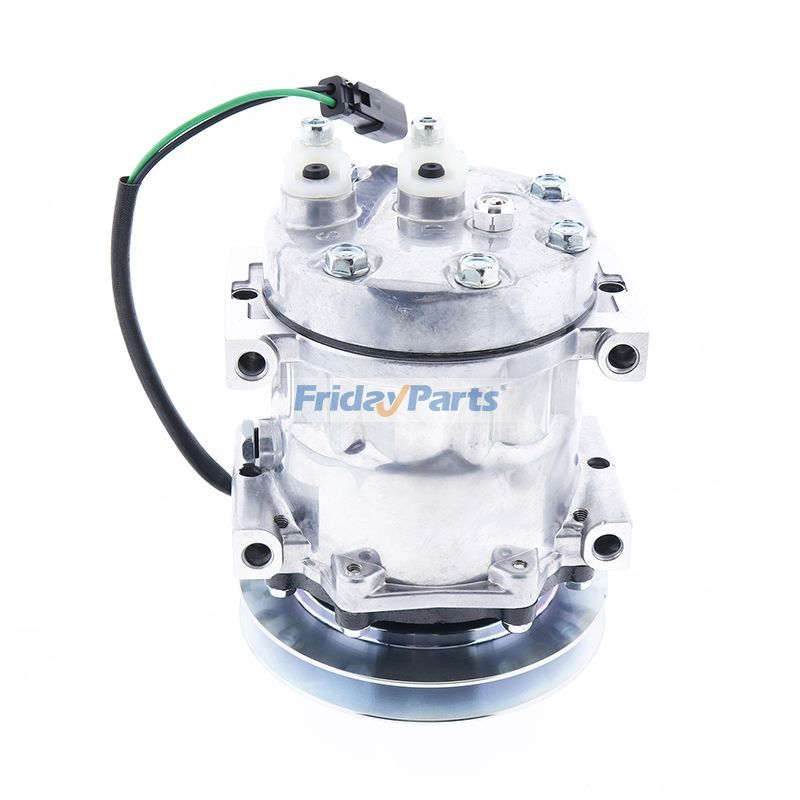

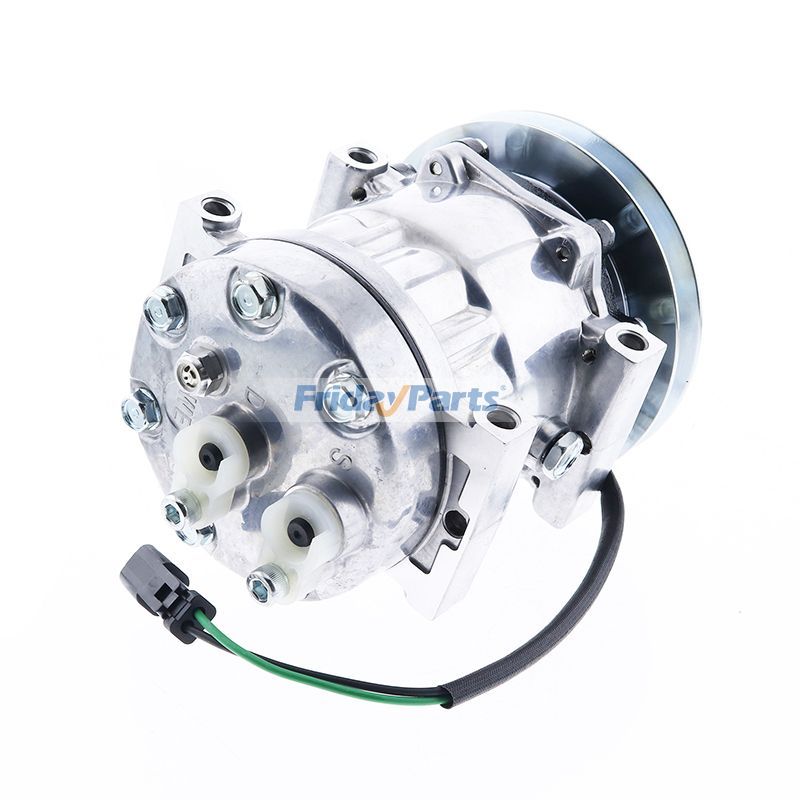

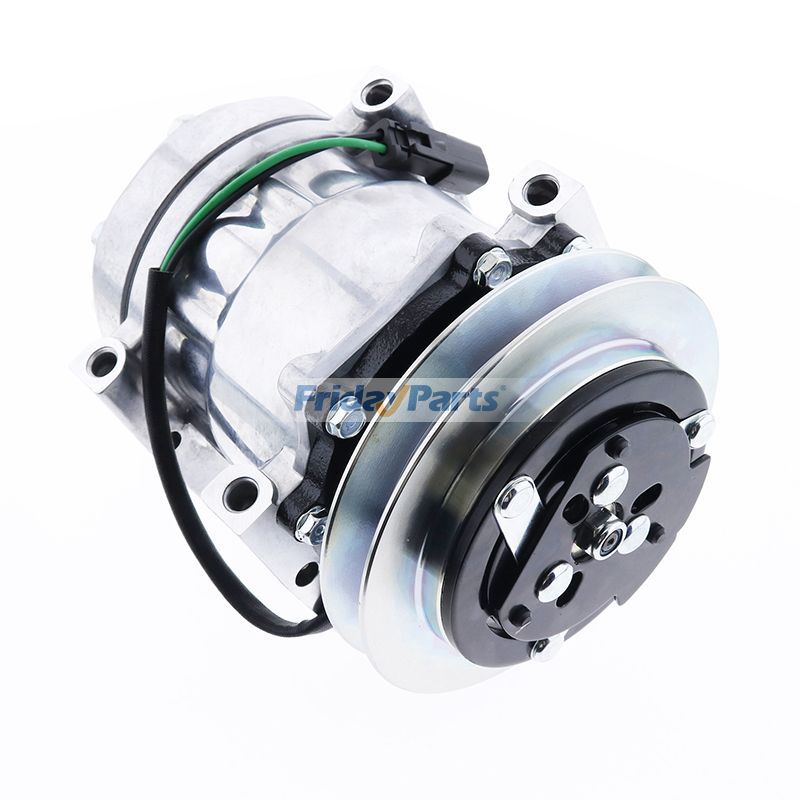

SD7H13 A/C Compressor LC91V00002F1 for Kobelco SK200LC-6 ED190LC SK480LC-6E SK210LC SK160LC SK210LC-6E SK330LC-6E SK290LC SK290LC-6E SK200-6 SK250LC SK330LC

SD7H13 A/C Compressor LC91V00002F1 for Kobelco SK200LC-6 ED190LC SK480LC-6E SK210LC SK160LC SK210LC-6E SK330LC-6E SK290LC SK290LC-6E SK200-6 SK250LC SK330LC

Type:A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor

Replace Part Number:
LC91V00002F1, LC91V00002F3

Specification:
Compressor Family: SD7H13
Style: Standard
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: WL
Port Angle: Vertical
Head Port Style: Pad
Clutch Diameter: 146 mm ~ 5 and 3/4 inches
Clutch Style: With Dust Cover
Belt Type: V-Belt
Number of Grooves: 1
Voltage: 24

Applications:
Fit For Kobelco Excavator: SK200LC-6, ED190LC, SK480LC-6E, SK210LC, SK160LC, SK210LC-6E, SK330LC-6E, SK290LC, SK290LC-6E, SK200-6, SK250LC, SK330LC

See Details:
(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06)
(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02)
(SK200-6) - DYNAMIC ACERA EXCAVATOR ASN YN30001 (1/01-12/03)
(SK200LC-6) - DYNAMIC ACERA EXCAVATOR ASN YQ03501 (1/95-12/06)
(SK210LC) - DYNAMIC ACERA EXCAVATOR ASN YQ07U0101 (1/01-12/02)
(SK210LC-6E) - DYNAMIC ACERA EXCAVATOR ASN YQ08U0969 (1/02-12/12)
(SK250LC) - DYNAMIC ACERA EXCAVATOR LL08U0101-LL08U0574, LL08U0576-LL08U0606 (1/95-12/06)
(SK290LC) - DYNAMIC ACERA EXCAVATOR ASN LB03U0101 (1/00-12/02)
(SK290LC-6E) - DYNAMIC ACERA EXCAVATOR BTW LB04U0298 - LB04U02800 (1/02-12/07)
(SK330LC) - DYNAMIC ACERA EXCAVATOR ASN YC06U0101 (1/01-12/02)
(SK330LC-6E) - DYNAMIC ACERA EXCAVATOR ASN YC07U0623 (1/03-12/06)
(SK480LC-6E) - DYNAMIC ACERA EXCAVATOR ASN YS06U0294 - YS06U0621 (1/03-12/08)
