Need a quick answer for your next oil change? The Kawasaki FR691V engine holds exactly 2.2 quarts (2.1 L) of oil with a filter change, or 1.9 quarts (1.8 L) without. But before you grab the standard 10W-30 oil printed right on your dipstick, beware: using this oil in summer temperatures can quietly trigger a severe engine issue. Read on to discover why Kawasaki recently changed their official oil recommendations, and the one costly mistake most owners make when checking their oil level.
What Is A Kawasaki FR691V Engine?
Kawasaki FR691V is a 4-stroke, vertical shaft, V-twin engine that powers residential ride-on mowers and zero-turn equipment. This 726cc air-cooled engine produces around 23 horsepower and delivers smooth, low-vibration performance with its 90-degree V-twin configuration.
Kawasaki built the engine with cast-iron cylinder liners, overhead valves and a pressurized lubrication system, making its striking presence on residential machines of reputable brands like John Deere, Toro, Hustler, Gravely and more.
Kawasaki FR691V Oil Capacity
The Kawasaki FR691V has a total oil capacity of 2.2 quarts (2.1 liters) of oil with the oil filter replaced. If you’re not replacing the oil filter during an oil change, the engine holds about 1.9 quarts (1.8 liters). The Kawasaki FR691V uses a pressurized lubrication system, which is critical for protecting the internal components under load. When you check the oil level, avoid screwing the dipstick in. Instead, you should only rest it on the threads and pull it back out for an accurate reading.
The table below shows the engine oil capacity for your Kawasaki FR691V in different oil change scenarios:
| Oil Change Scenario | Oil Capacity |
|---|---|
| Without Oil Filter Change | 1.9 qt (1.8 L) |
| With Oil Filter Change | 2.2 qt (2.1 L) |
Recommended Kawasaki FR691V Oil Type
The oil type recommended in Kawasaki’s manual is 10W-30 or 10W-40. For most FR691V engines, the factory dipstick says 10W-30 right on it. Historically, Kawasaki has referred to 10W-40 as the right engine oil for general use on these engines.
For temperatures above 90°F, Kawasaki recommends using 10W-40, 20W-50 or 15W-50. In the recent documents from Kawasaki, 20W-50 is listed as acceptable for any temperature above freezing, as using this type of oil can reduce the oil consumption that was being observed with 10W-40 and similar weights.
Notably, Kawasaki once forbade 5W-30 for the FR691V engine, as using multi-grade oils will increase oil consumption, though this caution primarily refers to conventional multi-grade formulations rather than modern synthetics.

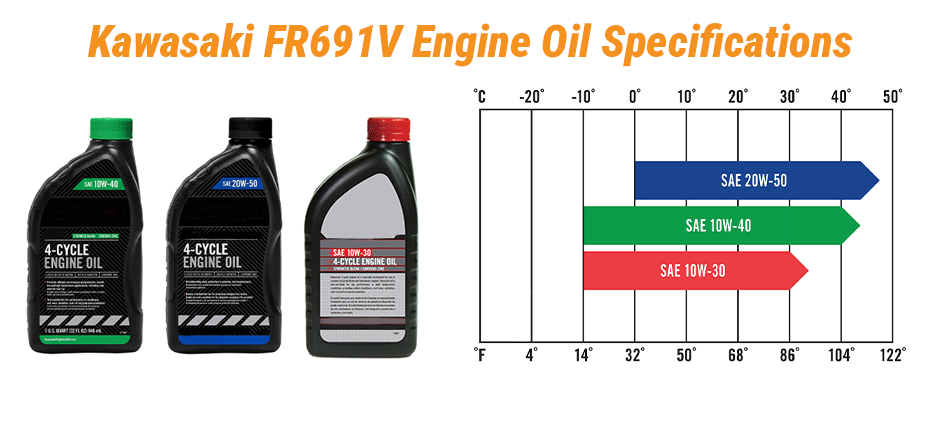

Oil Grade by Temperature Range
From above, we see Kawasaki’s official recommendations have shifted over time. Even though Kawasaki recommends SAE 10W-40 for general use, the oil grade is determined by the climate where you are living in. The table shows you how to adjust the oil grade based on temperature:
| Temperature Range | Oil Grade |
|---|---|
| 14°F – 86°F | SAE 10W-30 |
| 14°F – 104°F | SAE 10W-40 |
| 32°F – 122°F | SAE 20W-50 |
| Below 32°F | SAE 5W-20 |
Note: Always make sure to use detergent oils with an API classification of SJ or higher. Do not use non-detergent or 2-stroke engine oils.
Maintenance Tips for Kawasaki FR691V Engine
For optimal performance, your Kawasaki FR691V engine needs regular oil maintenance.
- Change oil for the first 8 hours of operation
- Change oil every 100 hours or annually, whichever comes first
- Replace the oil filter every 200 hours
However, if you operate in dusty, hot or high-load conditions, it’s smart to change it every 50-75 hours. If you don’t intend to use your lawnmower for more than a month, you should drain the fuel system. Once you manually drain the fuel, let the engine run until it stalls to ensure all the oil within the carburetors burns. See quality replacement oil filters for your Kawasaki FR691V engine here.
See Related:
How to Check the Oil Level with A Dipstick?
Common Mistakes to Avoid
Here are some common mistakes to avoid during engine and oil maintenance.
- Overfilling with oil: It can cause foaming and reduce lubrication
- Applying the wrong type of oil: It can lead to poor performance and potential engine damage
- Skipping oil filter change: Dirty oil circulates faster and brings about engine wear
- Not checking oil level regularly: It can lead to unnoticed low oil and premature engine failure
- Changing oil when the engine is hot: It poses a risk of burns and oil splatter
Final Words
Taking care of your Kawasaki FR691V engine doesn’t have to be complicated. You should match your oil grade to your local climate. Choose heavier weights like 10W-40 or 20W-50 in hot climates and keep up with routine filter changes to prevent engine wear and excessive oil consumption. For reliable season-after-season performance, it’s essential to check your oil level regularly. At FridayParts, we are dedicated to providing quality replacement parts for your Kawasaki engine and share useful guides on its maintenance and repair on our blogs. Stay tuned to our website and explore now.
