The Kubota SVL97-2 is a high-performance compact track loader built for heavy work in construction, land clearing, and off-road jobs. Knowing its key specs helps you match attachments correctly, haul safely, and plan maintenance ahead of time.
Top 3 Kubota SVL97-2 Specs to Know First
1. Rated Operating Capacity (ROC)
Safe working lift: 1,451 kg (3,200 lb) at 35% of tipping load.
This is your working weight limit for stable, safe lifting.
2. Auxiliary Hydraulic Flow
Hydraulic flow: 87.6 L/min (standard) or 152 L/min (high-flow).
The high-flow setup powers demanding attachments like mulchers or planers.
3. Operating Weight
Machine weight: 5,125–5,250 kg (11,299–11,574 lb) depending on cab type.
This determines your hauling and trailer needs.

Kubota SVL97-2 Specs Table
| Category | Spec (SVL97-2) | Why It Matters |
|---|---|---|
| Engine Model | Kubota V3800-TIEF4 | Engine ID for parts |
| Gross Power | 96.4 hp @ 2,400 rpm | Power for travel & load |
| Net Power | 87 hp | Compare output easily |
| Displacement | 3,769 cc | Engine torque & tuning |
| Cylinders | 4 | Engine layout |

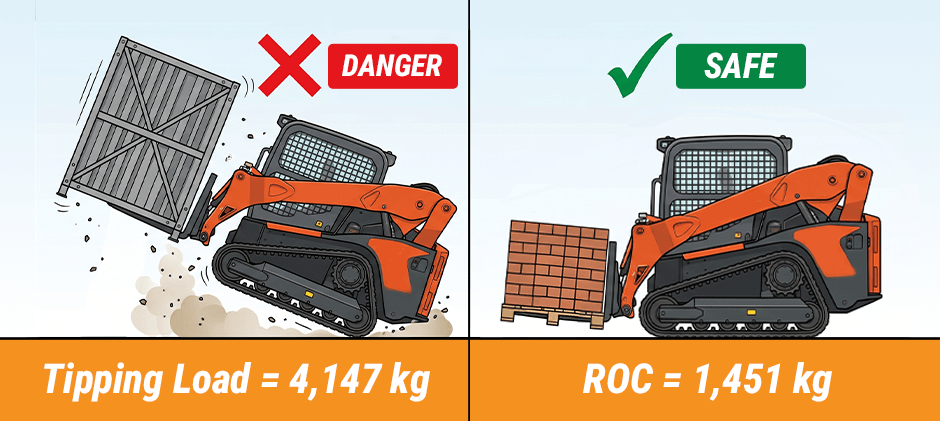

| ROC (35% Tipping) | 1,451 kg | Safe working lift |
| Tipping Load | 4,147 kg | Stability baseline |
| Bucket Breakout Force | 3,611 kg | Digging strength |
| Lift Arm Force | 3,058 kg | Arm and fork strength |
| Lift Arm Type | Vertical | Better lift height |
| Aux Flow (Std/High) | 87.6 / 152 L/min | Attachment power |
| Aux Pressure | 3,553 psi | Attachment efficiency |
| Travel Speed (Low/High) | 8.0 / 11.7 km/h | Site productivity |
| Track Width | 450 mm | Ground flotation |
| Ground Pressure | 4.4 / 4.5 psi | Soft-ground ability |
| Ground Clearance | 293 mm | Stump and rock safety |
| Operating Weight | 5,125 / 5,250 kg | Hauling and limits |
| Fuel Tank | 109 L | Run time |
| DEF Tank | 13 L | Emission planning |
Why Kubota SVL97-2 Specs Can Differ
Specs may vary between brochures and markets.
Some list “lifting capacity” instead of ROC (35%), which can confuse comparisons.
Always confirm the exact definition so you’re working with the correct safety numbers.
“If it doesn’t list ROC (35%), you don’t have the real lift spec yet.”
Using Hydraulic Specs for Tool Matching
Attachments need the right hydraulic flow. Standard flow handles general tools like buckets and augers.
The high-flow 40 gpm (152 L/min) option suits heavy-duty tools such as mulchers, planers, and brush cutters.
Match attachment requirements to your loader’s flow specs for best results.
Undercarriage Specs and Performance
The undercarriage gives the SVL97-2 excellent traction and stability.
With low ground pressure (~4.4 psi) and 1,667 mm track contact, it performs well on mud and slopes.
Ground clearance of 293 mm (11.5 in) allows easy movement over rocks or logs without damage.
Maintenance and Service Planning
The SVL97-2 includes smart features like postponed DPF burn for safety zones and an improved DEF harness to reduce wear.
Checking your engine, hydraulics, and undercarriage regularly keeps your machine working smoothly and prevents downtime.
“Engine uptime is jobsite uptime.”
Summary
The Kubota SVL97-2 is built for strength, stability, and reliability. When planning your next project, focus on ROC, hydraulic flow, and operating weight to match your attachments and stay productive.
